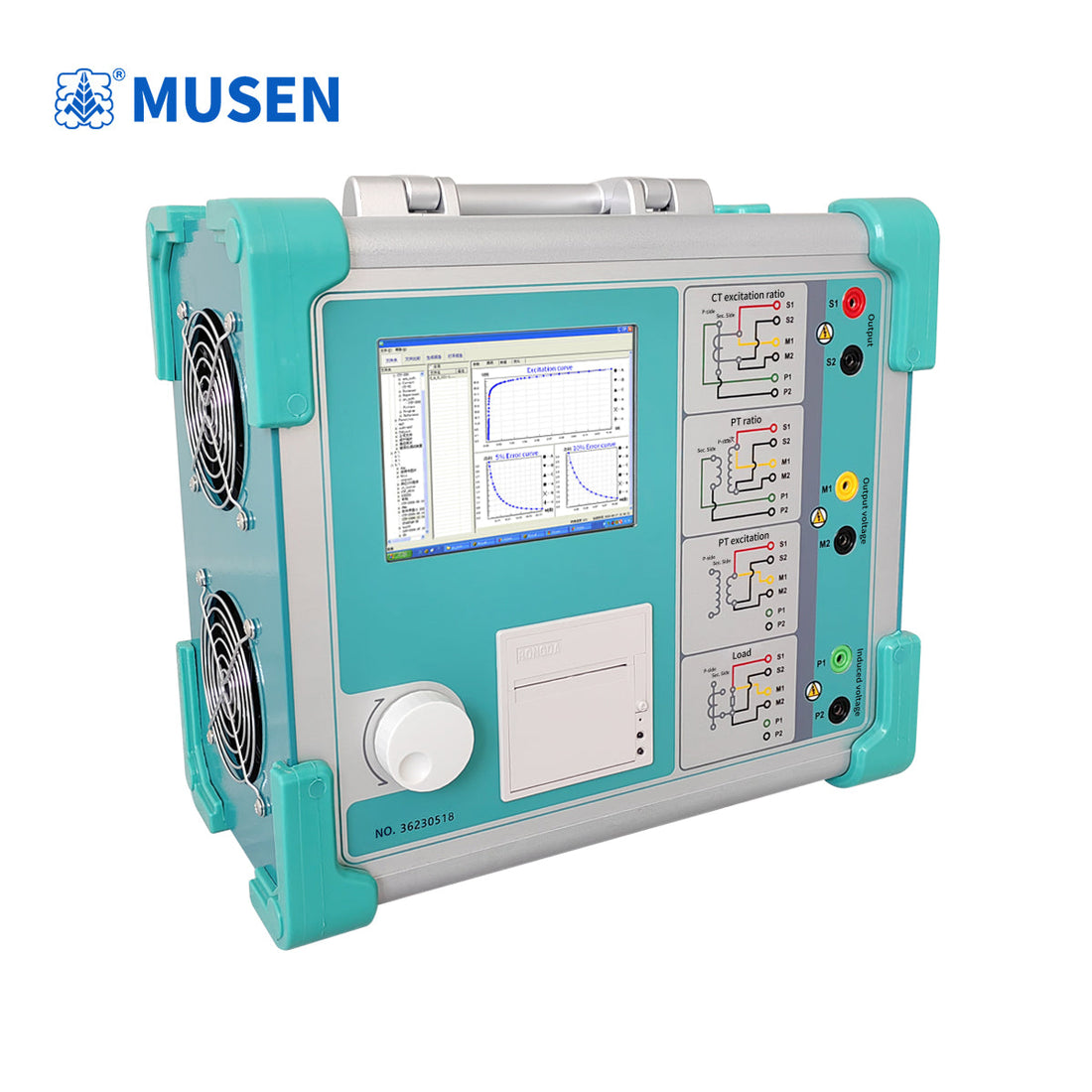

Measuring ratio and phase angle error requires injecting precise primary-equivalent currents or low-frequency voltages to calculate the transformation ratio (1 to 40,000 scale) with an accuracy of 0.2%. A Ct Pt Transformer Integrated Tester determines ratio error and phase displacement (5min accuracy, $0.5\text{min}$ resolution) essential for accurate energy metering and relay coordination.
Ensuring Compliance with International Testing Standards
Accurate calibration must align with strict industrial benchmarks such as IEC 60044-1 and GB1207. A reliable Transformer Testing Equipment suite automatically adjusts test algorithms based on the specific transformer class. Utilizing a robust Comprehensive Ct Pt Tester guarantees that ratio discrepancies remain within allowable billing and protection tolerances.
Error Measurement Specifications
| Measurement Parameter | Operational Range | Precision / Resolution |
|---|---|---|
| CT Ratio Measurement | 1 – 40,000 | ±0.2% |
| PT Ratio Measurement | 1 – 40,000 | ±0.2% |
| Phase Angle Error | Dynamic tracking | Accuracy±5min, Resolution 0.5min |
| Secondary Burden | 0 – 1000 VA | 2%±0、2VA |
Overcoming High Knee-Point Challenges in Modern GIS Substations
Modern Gas Insulated Switchgear (GIS) features current transformers with high core dimensions and elevated knee-point voltages reaching up to 45 kV. Traditional test sets fail under these requirements, whereas advanced low-frequency test techniques embedded in a Portable Ct Pt Transformer Comprehensive Analyzer safely evaluate these high-stress windings without thermal damage.
Frequently Asked Questions
- Q: What is the primary advantage of single-connection testing?
- A: Except for burden testing, all core tests (resistance, excitation, ratio, polarity) use the exact same wiring harness, drastically reducing testing time and wiring errors.
- Q: How does phase angle error affect metering accuracy?
- A: Phase angle errors introduce active and reactive power measurement discrepancies in revenue metering systems, making precise verification mandatory during commissioning.
