What Is the Economic ROI of the MS-101G Series Dielectric Loss Tester for Industrial Utilities?
What Is the Economic ROI of the MS-101G Series Dielectric Loss Tester for Industrial Utilities?

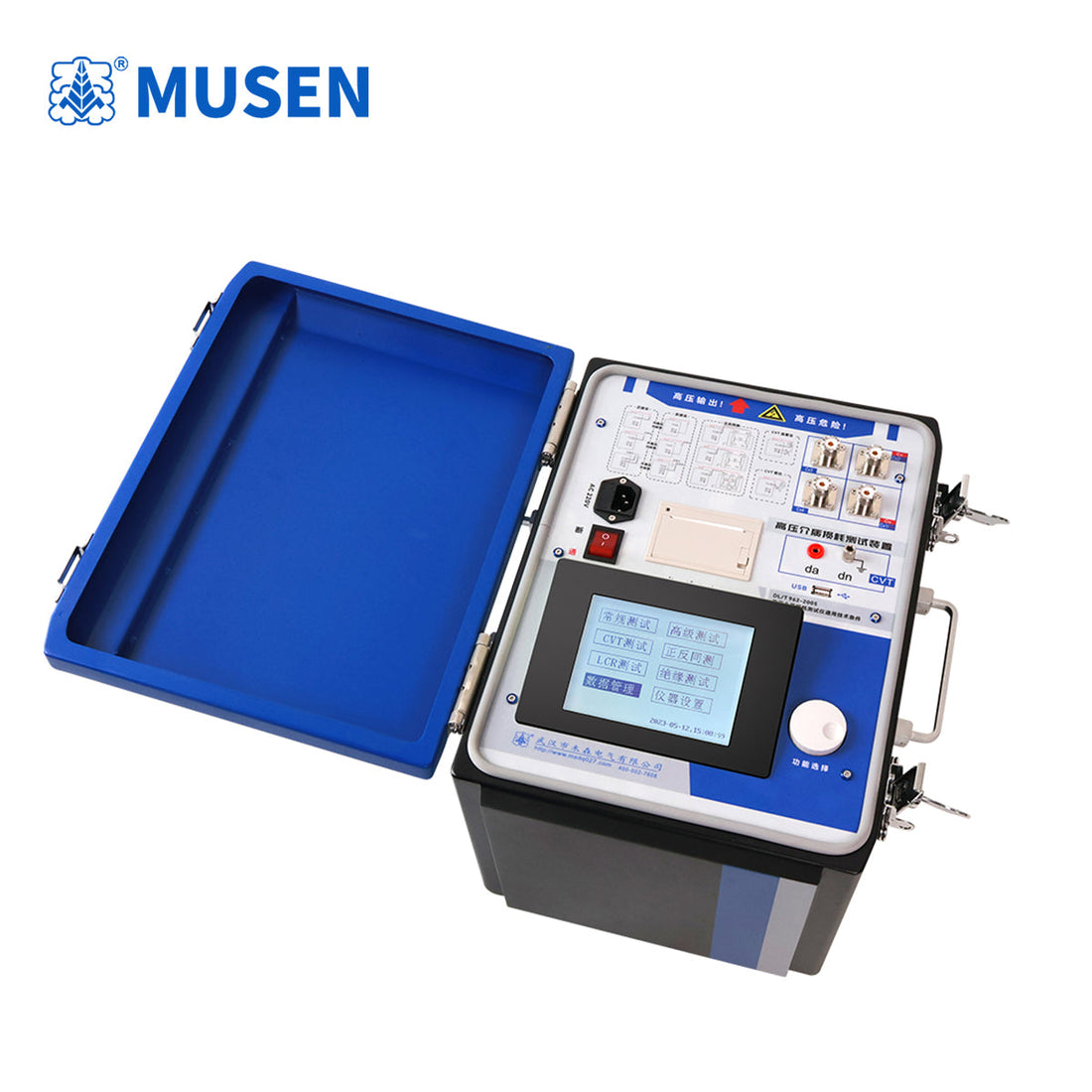

The Dielectric Loss Tester MS-101G Series delivers a low total cost of ownership (TCO) by integrating multiple insulation diagnostic modes into a single portable platform. Designed to meet compliance guidelines established by State Grid and Southern Power Grid procurement specifications, the MS-101G Series reduces capital expenditure (CAPEX) and operating expenditure (OPEX) by streamlining asset testing and preventing unplanned outages.
How Does Multi-Channel Integration Lower Equipment CAPEX?
Historically, power utilities and high-voltage testing companies purchased separate test sets for transformer bushings, power cables, and rotating machinery. The multi-functional architecture of the MS-101G Series eliminates hardware redundancy by serving as a comprehensive diagnostic hub for various station assets.
Consolidation of Diagnostic Hardware
By combining 12kV standard test output, 20kV high-voltage capability, generator insulation evaluation, live-line capacitive measurement, and main transformer bushing monitoring, a single Dielectric Loss Tester replaces up to three specialized instruments. This multi-channel design allows test crews to assess four measurement channels simultaneously, reducing testing equipment fleet sizes by up to 40%.
Quantifying OPEX Reductions and Outage Cost Avoidance
Unplanned power outages caused by transformer bushing explosions or cable joint breakdowns cost transmission system operators thousands of dollars per minute in lost revenue and grid failure penalties. Live-line diagnostics and rapid wiring features significantly lower labor hours and outage windows.
| Cost Category | Traditional Testing Approach | MS-101G Series Approach | Quantifiable Efficiency Gain |
|---|---|---|---|
| Field Setup & Wiring Time | 2.5 hours per transformer bank (manual re-hookup for C_1/C_2) | 0.5 hours (simultaneous $C_1/C2 single primary wiring) | 80% reduction in labor time per bay |
| Planned Outage Duration | 8-hour complete busbar shutdown requirement | Live-line testing capability; zero forced outage needed | Eliminates outage revenue losses |
| Compliance Compliance Risk | Non-standard test parameters failing audit checks | Pre-configured to match IEC 60076-18 and national grid specs | Zero secondary procurement overhead |
| Data Entry & Reporting | Manual transcription from paper logs to asset software | Automated wireless Bluetooth backhaul to maintenance databases | Eliminates human entry errors |
Standard Compliance Safeguards Infrastructure Assets
Equipment compliance plays a crucial role in asset risk management. The MS-101G Series complies with international testing mandates, including IEEE C57.12.90 for transformers and IEC 60502-2 for power cables. Adhering to these engineering baselines shields utilities from premature asset degradation caused by improper test voltage stress or misleading dissipation factor data.
Custom software upgrades and modular channels allow asset managers to adapt their existing units as smart grid monitoring protocols evolve, preventing early tool obsolescence.
Frequently Asked Questions
Q: How does the single primary wiring feature lower labor costs?
A: The single primary connection permits simultaneous acquisition of C_1(main insulation) and C_2 (tap insulation) tan delta values. Technicians do not need to climb transformer covers repeatedly to reconfigure test leads, which speeds up asset testing and improves safety.
Q: What financial savings are associated with live-line measurement?
A: Live-line testing allows utilities to inspect bushings and current transformers while under load. Spotting early insulation defects prevents catastrophic phase-to-ground faults, avoiding expensive repair costs and unexpected grid outages.
Technical Content Reviewed by High-Voltage Diagnostic Specialists
