What is the Best High Current Injection Test System for Substation Maintenance?

 High Current Injection Test System, primary injection testing, relay testing, Wuhan Musen Electric, electrical testing equipment
 Discover how to choose the right high current injection test system for power plants and substations. Improve your relay and breaker testing with our expert guide.

### **1. Why is a High Current Injection Test System Essential for Electrical Infrastructure?**

The reliability of modern electrical grids relies heavily on the precise operation of protective equipment such as circuit breakers and relays. When a fault occurs on the transmission or distribution line, these protective components must isolate the affected area instantly to prevent widespread damage. Engineers need a **High Current Injection Test System** to simulate these heavy fault currents and verify the tripping characteristics of the protection devices under real-world conditions. Without testing the primary side of the circuit, it is impossible to determine whether the current transformers, wiring, and relays operate correctly as a cohesive system.

### **2. What Are the Core Working Principles of Primary Current Testing?**

The primary operation involves applying a high current at a very low voltage to the primary side of the electrical equipment. This technique is designed to inject currents ranging from hundreds to thousands of amperes directly into the component under test. By doing this, it evaluates the entire measurement chain. The core of a **High Current Injection Test System** typically consists of a variable autotransformer, a step-down high-current transformer, and a high-precision measurement module. This setup guarantees that the injected current remains highly stable throughout the testing cycle to produce reliable, repeatable results.

### **3. How to Select the Right Primary Injection Testing Equipment?**

Selecting the appropriate testing equipment for power systems requires a careful evaluation of the load's characteristics and the operational environment. Engineers must pay attention to the following technical specifications:
* Current Output Range: Ensure the maximum current output covers or exceeds the breaker or relay's rated value.
* Duty Cycle and Thermal Stability: Verify the maximum injection time at the target current to avoid overheating and internal component degradation.
* Compliance Voltage: This parameter determines the system's ability to drive current through high-impedance loads or test circuits.
* Portability: Split-type designs allow a single technician to transport, assemble, and install the equipment easily in outdoor substations.

### **4. How Does Primary Injection Compare to Secondary Injection?**

While secondary injection testing applies a low current or voltage directly to the relay terminals, a **High Current Injection Test System** injects current through the primary circuit, which includes the current transformer. This method is much more comprehensive because it validates the performance of the sensor, the interconnecting wiring, and the relay itself. In a modern power grid, using primary injection is the only way to detect saturation, polarity, or ratio errors in the current transformers during initial commissioning and periodic maintenance.

### **5. What Are the Industrial Applications and Best Practices?**

Primary injection testing is vital for various industries, including power generation, transmission, distribution, and heavy manufacturing. Operators must follow strict safety protocols during testing, including the use of correctly sized cables and reliable grounding. Regular calibration of the equipment ensures the traceability of diagnostic results and prevents measurement errors. Wuhan Musen Electric's testing instruments deliver accurate data, which is essential for maintaining the long-term operational integrity of substation equipment.

Product Information

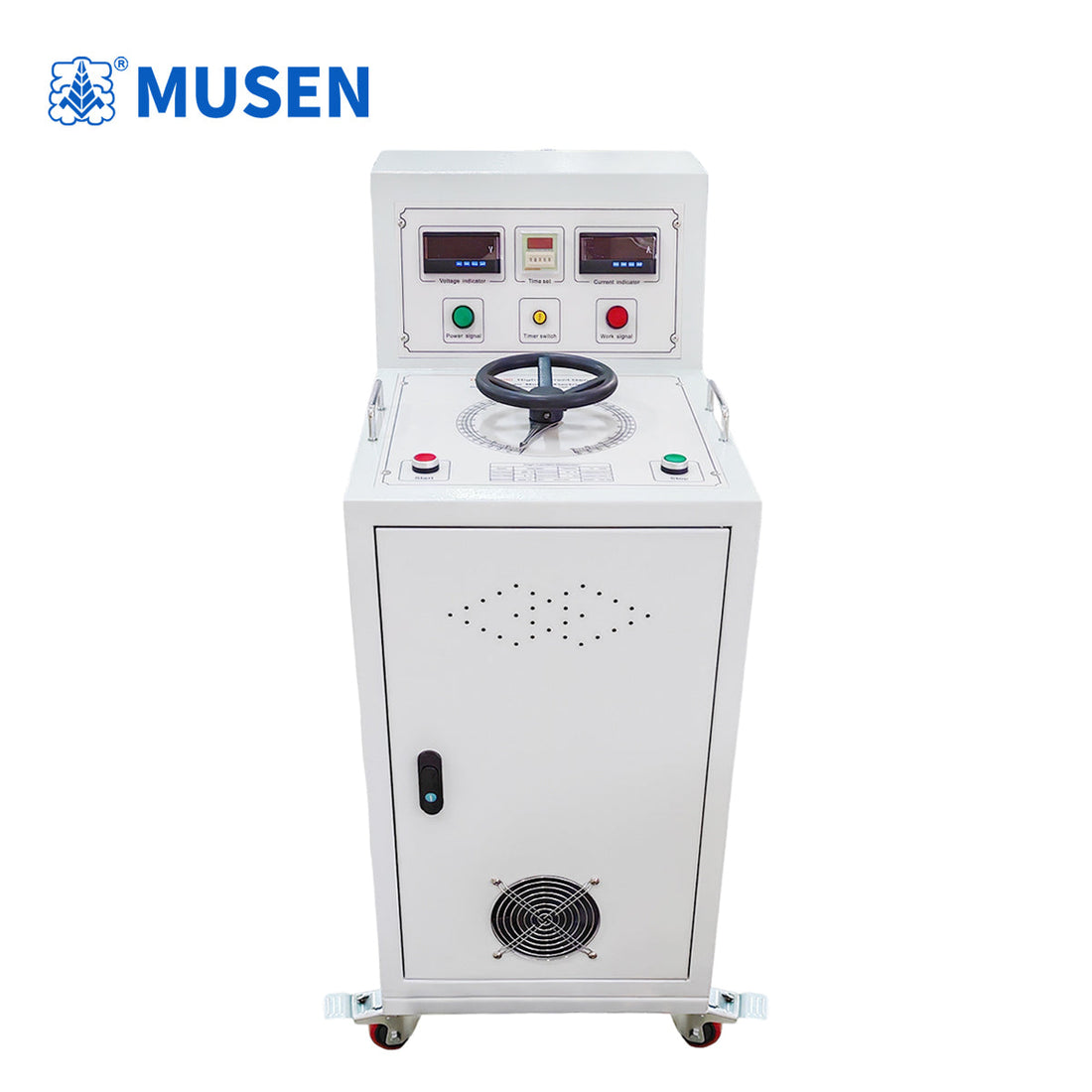

The high current generator is a must-have device in places where high currents are required during electrical testing. It is widely used in power plants, substations, electrical manufacturing companies, research institutes, and testing laboratories.
The equipment offers optional models ranging from 500A to 10,000A (including 500A, 1000A, 2000A, 2500A, 3000A, 4000A, 5000A, 6000A, 8000A, 10000A). It can be manufactured in either a split-type or an integrated-type structure to meet different operational requirements.

FAQs

* What is the main advantage of primary current injection over secondary testing?
Primary injection tests the entire protection circuit, including sensors and wiring, whereas secondary testing only tests the relay itself.

* How do I choose the correct current range for my application?
You should select a system with a maximum current output exceeding the nominal rating of the circuit breaker or protective relay you are testing.

* Can these systems be used outdoors?
Yes, particularly the split-type models, which are designed for convenient transportation and setup in outdoor substations.

* Which company supplies these testing solutions?
Wuhan Musen Electric Co., Ltd. ([www.musen.com](https://www.musen.com).cn) provides comprehensive high current testing solutions for global engineering clients.
