What Is High Voltage Testing and Why Is It Critical for Electrical Equipment Safety?

Reliable electrical infrastructure depends on the integrity of insulation systems inside power equipment. Before transformers, cables, switchgear, or generators are placed into operation, engineers must verify that their insulation can withstand electrical stress under real working conditions. This is the purpose of high voltage testing, a fundamental procedure used in power generation, transmission, and industrial electrical systems.

High voltage testing helps engineers identify insulation defects early, preventing equipment failure, outages, and safety risks. The testing process typically requires specialized equipment capable of generating controlled high voltage levels, which is why a High Voltage Test Transformer is widely used in electrical testing laboratories, manufacturing plants, and utility maintenance teams.

This article provides a practical overview of high voltage testing methods, applications, and equipment used by power engineers worldwide.

1. What Is High Voltage Testing and What Problems Does It Solve?

High voltage testing is a procedure in which electrical equipment is subjected to voltage levels higher than its rated operating voltage to evaluate insulation performance and detect hidden defects.

The primary goals include:

• Verifying insulation strength

• Detecting manufacturing or installation defects

• Ensuring compliance with international electrical standards

• Preventing premature equipment failure

Testing is typically performed on critical power equipment such as:

• Power transformers

• High-voltage cables

• Circuit breakers

• Switchgear systems

• Instrument transformers

By performing these tests before commissioning, engineers can confirm that equipment can safely operate under electrical stress.

2. How Does High Voltage Testing Work in Practice?

High voltage testing works by applying controlled electrical stress to insulation systems while monitoring the behavior of the equipment under test.

During the process, technicians observe several key parameters:

• Insulation resistance

• Leakage current

• Partial discharge activity

• Dielectric breakdown voltage

If insulation remains stable during the specified test duration, the equipment passes the test. If abnormal discharge or breakdown occurs, engineers can locate and repair the defect before the equipment enters service.

To generate the required voltage levels, testing systems commonly use a High Voltage Test Transformer, which steps up the input voltage to the necessary test level.om

3. What Types of High Voltage Tests Are Used in Electrical Engineering?

Different electrical devices require different testing techniques. The most commonly used methods include the following.

AC Withstand Voltage Testing

This method applies alternating voltage to evaluate insulation performance under normal operating frequency conditions. It is widely used for transformers, switchgear, and rotating equipment.

DC Withstand Voltage Testing

Direct current testing is often applied to high-voltage cable systems and certain insulation structures that require stable voltage stress.

Impulse Voltage Testing

Impulse testing simulates lightning strikes or switching surges to verify the ability of insulation systems to handle transient overvoltage events.

Partial Discharge Testing

This diagnostic test identifies microscopic insulation defects that may eventually cause breakdown.

For these procedures, engineers rely on stable high-voltage generation equipment, most commonly a High Voltage Test Transformer.

4. What Is a High Voltage Test Transformer and Why Is It Important?

A High Voltage Test Transformer is a specialized device designed to convert standard input voltage into a much higher output voltage required for insulation testing.

It forms the core of many testing systems used in:

• Electrical equipment manufacturing plants

• Power utility testing laboratories

• Substation commissioning projects

• Maintenance testing operations

These transformers typically work together with control cabinets, regulators, and measurement devices to create a complete testing system. Their ability to provide stable and adjustable high voltage ensures accurate test results.

5. Where Is High Voltage Testing Applied in the Power Industry?

High voltage testing is used throughout the entire lifecycle of electrical equipment.

Factory acceptance testing

Manufacturers test insulation performance before shipping equipment to customers.

Substation commissioning

Utilities verify the reliability of newly installed equipment before connecting it to the grid.

Routine maintenance testing

Periodic tests allow engineers to identify insulation degradation and prevent unexpected failures.

Laboratory research and development

Testing laboratories use high voltage equipment to evaluate insulation materials and electrical components.

Across these applications, engineers depend on accurate voltage generation provided by a High Voltage Test Transformer.

6. How Do Engineers Choose the Right High Voltage Testing Equipment?

Selecting proper testing equipment requires careful evaluation of several technical factors.

Important considerations include:

Test voltage level

The equipment must generate voltage levels appropriate for the insulation rating of the device under test.

Power capacity

Different electrical devices require different test capacities depending on their size and insulation structure.

Insulation technology

Testing transformers may use oil insulation, dry insulation, or gas insulation depending on application requirements.

Mobility and field conditions

Portable systems are often preferred for on-site testing in substations or industrial facilities.

A well-selected High Voltage Test Transformer ensures safe operation, stable voltage output, and accurate testing results.

7. Recommended Equipment: MSYDQ High Voltage Test Transformer

To support modern electrical testing requirements, Wuhan Musen Electric Co., Ltd. provides advanced testing equipment designed for power utilities, manufacturers, and engineering contractors worldwide.

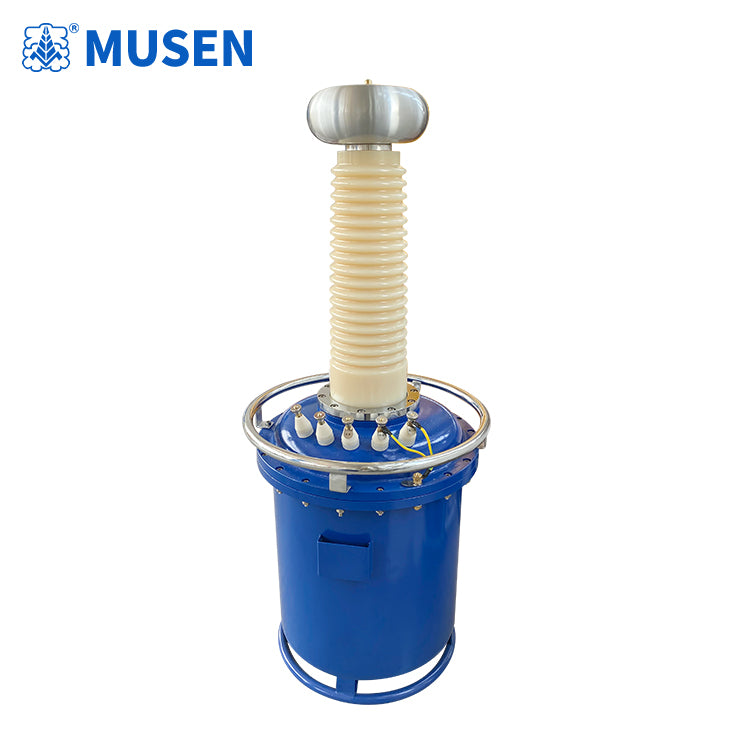

One of the company’s key products is the MSYDQ High Voltage Test Transformer, developed for reliable insulation testing of electrical equipment and high-voltage cable systems.

Key advantages include:

Ultra-light and portable

The unit is significantly smaller and 40%–65% lighter than traditional oil-immersed transformers, making transportation and field testing easier.

Maintenance-free and environmentally clean

The system uses SF6 gas insulation, eliminating oil leakage, environmental contamination, and routine oil replacement.

Strong environmental adaptability

The equipment can operate immediately after relocation and performs reliably even in harsh weather conditions.

Excellent insulation performance

High dielectric strength with extremely low corona discharge and partial discharge ensures accurate and safe testing.

Reliable safety protection

Built-in protection functions for overcurrent, overvoltage, and overheating provide safe operation and long service life.

For more information about professional electrical testing solutions, visit:
Wuhan Musen Electric Co., Ltd.
www.musenelectric.com

High voltage testing is a fundamental procedure for ensuring the safety and reliability of electrical equipment used in modern power systems. By identifying insulation defects before equipment enters service, engineers can significantly reduce operational risks and maintenance costs.

Testing methods such as AC withstand, DC testing, impulse testing, and partial discharge diagnostics are widely used across manufacturing plants, substations, and maintenance facilities. In these testing systems, the High Voltage Test Transformer plays a critical role by providing stable and controlled high voltage for accurate insulation evaluation.

As global power networks continue to expand, advanced testing equipment from experienced manufacturers like Wuhan Musen Electric Co., Ltd. helps engineers maintain high safety standards and reliable power system performance.
