What Is High Voltage Testing for Power Equipment and Which Standards and Methods Ensure Reliable Insulation?

Power equipment such as transformers, cables, switchgear, and generators operates under high electrical stress. To ensure safe and stable operation, engineers must verify that insulation systems can withstand voltage levels above normal operating conditions. This process is known as high voltage testing, and it plays a critical role in power system commissioning, manufacturing quality control, and preventive maintenance.

High voltage testing helps detect insulation defects before equipment is put into service, preventing costly failures and power outages. In modern electrical testing systems, equipment such as the High Voltage Test Transformer is used to generate controlled high voltage required for insulation verification.

This article explains the key standards, testing methods, and practical applications used in high voltage testing for power equipment.

1. What Is High Voltage Testing for Power Equipment?

High voltage testing is a procedure that applies electrical stress higher than the rated operating voltage of equipment to verify insulation strength and detect potential defects.

The main objectives include:

• Confirming insulation reliability

• Identifying manufacturing defects

• Verifying installation quality

• Ensuring compliance with electrical safety standards

These tests are widely used for equipment such as:

• Power transformers

• High-voltage cables

• Circuit breakers

• Switchgear systems

• Instrument transformers

During these procedures, a High Voltage Test Transformer is typically used to generate stable high-voltage output required for insulation evaluation.

2. Which Standards Regulate High Voltage Testing?

High voltage testing must follow internationally recognized standards to ensure safety and consistent results.

Common standards used in the power industry include:

IEC Standards
The International Electrotechnical Commission provides global standards for testing electrical insulation and high-voltage equipment.

IEEE Standards
These standards are widely used in North America and industrial applications for electrical testing procedures.

EN Standards
European standards define testing requirements for electrical equipment used in the EU.

National Grid or Utility Standards
Some utilities also require additional testing procedures based on local operational requirements.

Compliance with these standards ensures that equipment performance and insulation strength meet international safety requirements. Testing systems often rely on a High Voltage Test Transformer to meet the voltage levels specified by these standards.

3. What Are the Main High Voltage Testing Methods?

Different electrical devices require different testing methods depending on their insulation structure and operational environment.

AC Withstand Voltage Test

This test applies alternating voltage at power frequency to simulate real operating conditions. It is commonly used for transformers, switchgear, and rotating machines.

DC Withstand Voltage Test

Direct current testing is often applied to high-voltage cable systems to evaluate insulation performance under steady electrical stress.

Impulse Voltage Test

Impulse testing simulates lightning strikes or switching surges to verify insulation resilience against transient overvoltage conditions.

Partial Discharge Test

This diagnostic method detects small internal electrical discharges that may indicate insulation deterioration.

To perform these procedures accurately, testing systems typically include a High Voltage Test Transformer capable of producing stable high voltage output.

4. What Equipment Is Used in High Voltage Testing Systems?

A complete high voltage testing system consists of several components designed to generate, control, and measure high electrical stress safely.

Typical equipment includes:

• Voltage regulators

• Control cabinets

• Measurement instruments

• Voltage dividers

• Protection devices

At the center of these systems is the High Voltage Test Transformer, which converts standard input voltage into the required high test voltage.

These testing systems are widely used in equipment manufacturing plants, electrical testing laboratories, and substation commissioning projects.

5. Where Is High Voltage Testing Applied in Power Systems?

High voltage testing is performed throughout the entire lifecycle of electrical equipment.

Factory acceptance testing

Manufacturers perform insulation verification before equipment is delivered to customers.

Substation commissioning

Utilities test newly installed equipment to ensure it meets operational safety requirements.

Preventive maintenance testing

Periodic tests help detect insulation aging and prevent unexpected failures.

Research and development

Testing laboratories use high voltage testing to evaluate new insulation materials and equipment designs.

In all these applications, engineers rely on the stable voltage output produced by a High Voltage Test Transformer.

6. How Can Engineers Ensure Safety During High Voltage Testing?

High voltage testing involves significant electrical stress, so strict safety procedures are essential.

Important safety practices include:

• Proper grounding of equipment

• Using certified testing systems

• Monitoring leakage current and discharge activity

• Maintaining safe working distances

• Following international testing standards

Reliable testing equipment with built-in protection functions improves operational safety and test accuracy.

7. Recommended Equipment: MSYDQ High Voltage Test Transformer

To support reliable insulation testing in modern power systems, Wuhan Musen Electric Co., Ltd. provides advanced electrical testing equipment for utilities, manufacturers, and engineering contractors worldwide.

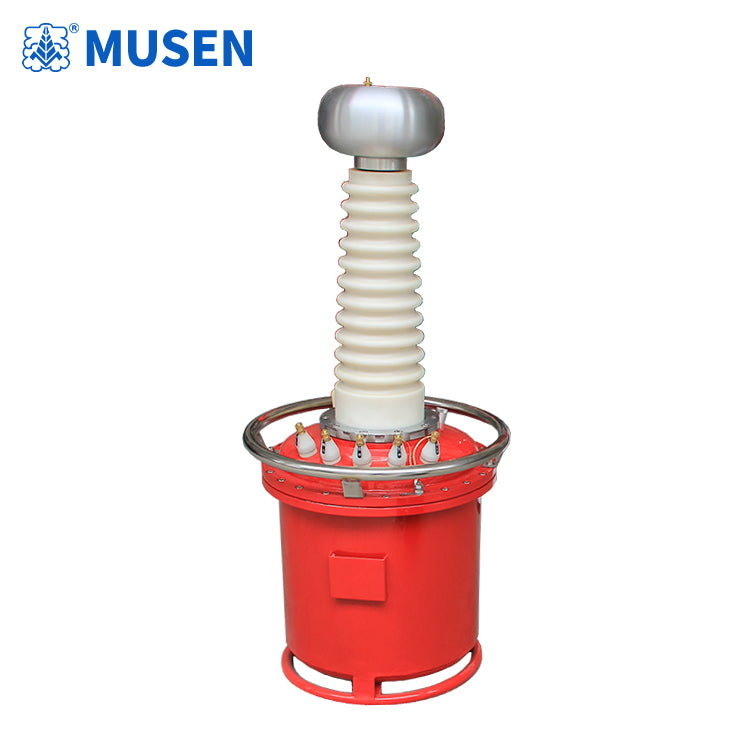

One of the company’s key products is the MSYDQ High Voltage Test Transformer, designed for efficient and accurate high-voltage testing of power equipment and cable systems.

Key advantages include:

Ultra-light and portable design

The equipment is significantly smaller and 40–65% lighter than traditional oil-immersed transformers, making it easier to transport and ideal for field testing.

Maintenance-free and environmentally clean

The system uses SF6 gas insulation, eliminating oil leakage, environmental contamination, and routine oil replacement.

Strong environmental adaptability

After relocation, the equipment can operate immediately without installation and maintains stable performance even in harsh weather conditions.

Excellent insulation performance

Higher dielectric strength and extremely low corona and partial discharge ensure accurate and reliable testing.

Reliable safety protection

Built-in protection against overcurrent, overvoltage, and overheating ensures safe operation and long service life.

For more information about professional electrical testing equipment, visit:
Wuhan Musen Electric Co., Ltd.
www.musenelectric.com

High voltage testing is an essential process for verifying insulation reliability and ensuring the safe operation of electrical power equipment. By applying controlled electrical stress and following international standards, engineers can detect insulation defects before equipment enters service.

From manufacturing quality control to substation commissioning and preventive maintenance, these testing procedures are widely used across the global power industry. Equipment such as the High Voltage Test Transformer plays a crucial role in generating the high voltage required for accurate insulation testing.

With advanced testing solutions from Wuhan Musen Electric Co., Ltd., power engineers can perform safe, reliable, and efficient high voltage testing for a wide range of electrical equipment applications.
