What is the Working Principle of a Hipot Tester? How to Choose a DC/AC High Voltage Tester?

Electrical systems require stringent safety measures to ensure their proper functioning. One critical component of any electrical safety program is high-voltage testing. To effectively test electrical equipment, engineers rely on hipot testers (high potential testers), tools designed to evaluate insulation integrity by applying high-voltage stress. In this article, we will explore the working principle of hipot testers, discuss how they differ from DC/AC high voltage testers, and guide you on selecting the right tester for your needs. Additionally, we will present a recommended high-voltage tester from Wuhan Musen Electric Co., Ltd..

1. What is a Hipot Tester and How Does It Work?

A hipot tester is a device used to apply a high voltage to electrical equipment to test its insulation. The main function of a hipot tester is to ensure that the insulation in electrical components—such as transformers, switchgear, and cables—can withstand electrical stress under normal operating conditions. The test is crucial because it simulates extreme operating conditions, checking whether insulation can handle over-voltage situations without failing.

The hipot tester applies either AC (alternating current) or DC (direct current) voltage across the insulation and measures the leakage current. A minimal leakage current indicates good insulation, while a higher current signals an insulation defect or breakdown. This high-voltage test helps identify potential failures before they occur, preventing electrical fires, equipment damage, and ensuring the safety of both the device and operators.

Key Points:

• Hipot testers check insulation integrity by applying high voltage.

• The device can detect insulation breakdowns by measuring leakage current.

• The test is essential for the safety and longevity of electrical equipment.

2. How Does a DC/AC High Voltage Tester Differ from a Hipot Tester?

While hipot testers are often used to test insulation strength, they are not the only tools used in high-voltage testing. DC/AC high voltage testers are similar but have some key differences.

DC high voltage testers use direct current to apply voltage across the insulation. This method is generally used for testing systems that operate on direct current, such as solar power equipment or specific electrical components that require steady voltage.

On the other hand, AC high voltage testers use alternating current to apply voltage. These testers are typically used for systems that operate on alternating current, such as most power grids and electrical appliances. The alternating nature of the voltage better simulates real-world operating conditions, as many electrical devices are powered by AC.

While both testers assess insulation strength, the main difference lies in the type of current applied:

• DC high voltage testers simulate steady voltage conditions.

• AC high voltage testers simulate fluctuating voltage, providing a more realistic test for AC systems.

Key Points:

• DC testers are ideal for testing equipment powered by direct current.

• AC testers replicate the actual conditions of most electrical systems.

• Hipot testers can be used in both DC and AC modes.

3. Key Factors to Consider When Choosing a DC/AC High Voltage Tester

Selecting the right DC/AC high voltage tester for your application is crucial to ensure accuracy and safety. Here are several factors to consider when making your choice:

• Voltage Range: Ensure the tester can accommodate the maximum voltage requirements for your equipment. The voltage range should meet the specifications of the electrical devices you're testing, with some testers offering ranges up to 150 kV or more.

• Testing Type: Consider whether you need to test for AC withstand voltage, DC withstand voltage, or both. Some testers offer dual-function capabilities, allowing you to conduct both types of tests with a single device.

• Safety Features: Look for features like overcurrent protection, overvoltage protection, and automatic shutdown mechanisms. These features prevent accidents during testing and ensure the operator's safety.

• Portability and Modular Design: Depending on whether you're performing tests in a lab or on-site, portability might be a critical factor. A modular design allows for flexible configurations, easy upgrades, and convenient transportation.

• Manufacturer Reputation: Choose a reliable manufacturer that adheres to industry safety standards. For instance, Wuhan Musen Electric Co., Ltd. offers high-quality, durable equipment that meets global testing standards.

Key Points:

• Ensure the tester supports the required voltage range and testing type.

• Safety features and a modular design are crucial for convenience and protection.

• Choose equipment from trusted manufacturers like Wuhan Musen Electric Co., Ltd..

 How to Safely Use a Hipot Tester and DC/AC High Voltage Tester in Field Testing

Safety is paramount when using any high-voltage testing equipment, including hipot testers and DC/AC high voltage testers. Here are some safety guidelines to follow when using these devices:

• Disconnect Power: Before starting the test, ensure that the device under test is disconnected from any power sources. This is critical for preventing electrical shock during the test.

• Grounding: Proper grounding of both the tester and the device being tested is necessary to avoid short circuits or electrical hazards.

• Personal Protective Equipment (PPE): Operators should wear proper PPE, such as insulated gloves, safety boots, and eye protection, to reduce the risk of electrical accidents.

• Test Calibration: Ensure that your hipot tester and DC/AC high voltage tester are calibrated regularly. This ensures that the devices provide accurate measurements and that the insulation testing process is effective.

• Operator Training: Proper training on handling high-voltage testers is essential. Operators should be well-versed in safety protocols, equipment operation, and emergency procedures.

Key Points:

• Always disconnect power and ground equipment before testing.

• Use PPE and regularly calibrate your testing devices.

• Proper training is essential for safe operation.

Choosing the Right High-Voltage Tester for Your Needs

When selecting a hipot tester or DC/AC high voltage tester, it’s important to consider the equipment’s voltage range, safety features, and application requirements. Testing insulation integrity is vital for the safety and reliability of electrical systems. By choosing the right device, you can ensure that your equipment performs reliably under high-voltage conditions.

For reliable, high-performance testing, Wuhan Musen Electric Co., Ltd. offers the MSYDJZ(W) Q High-Voltage Tester, a versatile tool that supports both AC and DC withstand voltage testing.

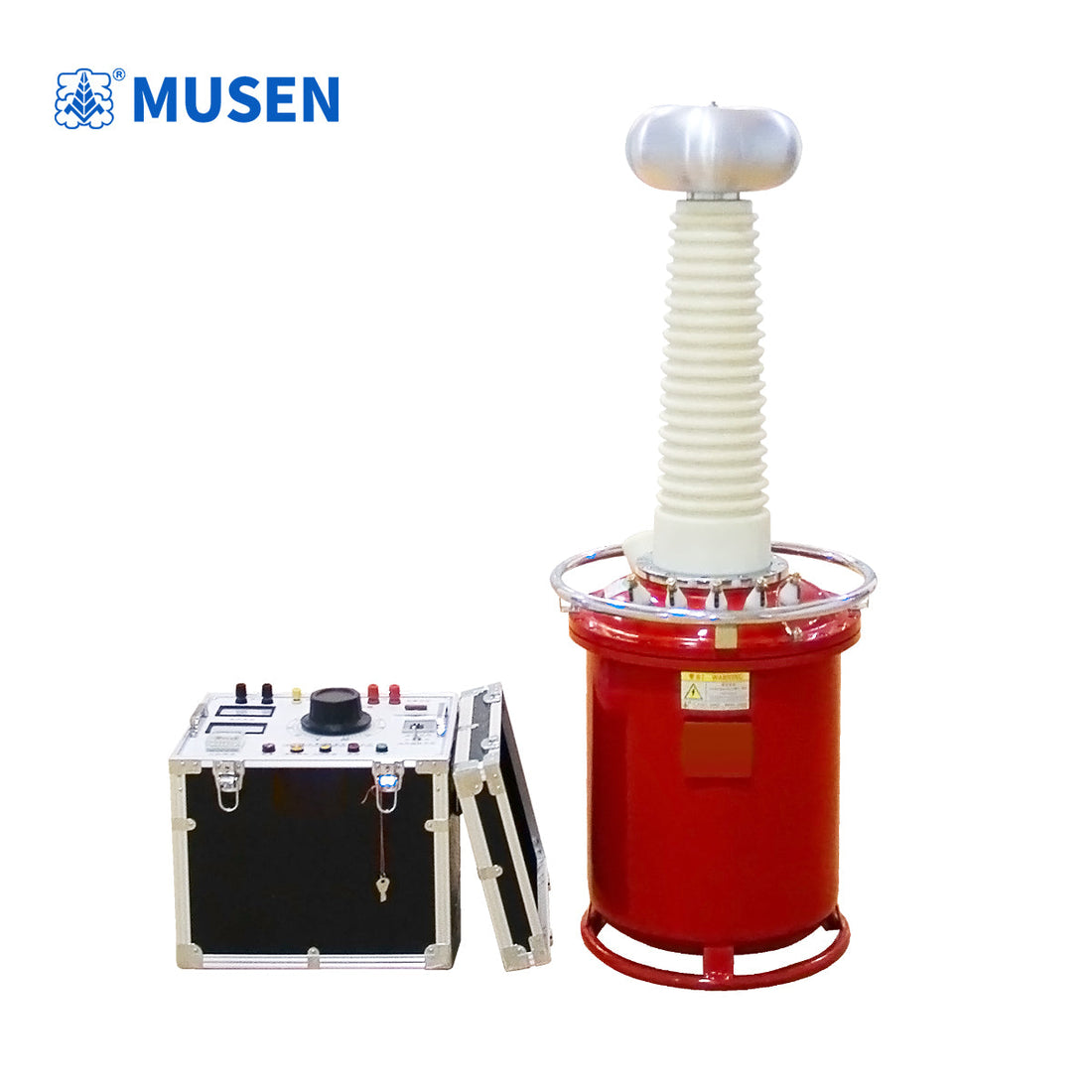

Recommended Equipment: MSYDJZ(W) Q High-Voltage Tester

The MSYDJZ(W) Q High-Voltage Tester is an excellent choice for professionals looking to conduct AC/DC withstand voltage tests. Here are its key features:

1. Dual-Function Capability: Supports both AC and DC withstand voltage tests, as well as leakage current measurements, making it ideal for a wide range of electrical equipment.

2. Three Transformer Types Available: Choose between oil-immersed, dry-type, or gas-insulated transformers, depending on your specific testing needs.

3. Modular Design: The flexible configuration allows for easy upgrades, easy transport, and efficient field deployment.

4. Wide Voltage Range: Offers capacities from 1.5 kVA to 300 kVA, with voltage options of 50 kV, 100 kV, and 150 kV, covering a wide range of electrical systems.

5. Comprehensive Safety Features: Equipped with overcurrent, overvoltage, and interlock protections to ensure safe operation.

6. Broad Application: Ideal for testing insulation on switchgear, transformers, cables, and more.

For more information, visit www.musenelectric.com.
