Article Title: What is a Hipot Tester and How Does it Compare to Other Electrical Testers?

In the world of electrical engineering and power systems, selecting the right testing equipment is vital to ensure the safety, reliability, and performance of electrical assets. One critical tool is the hipot tester. But what exactly is a hipot tester, and how does it differ from other common electrical testing tools? This article will clarify the unique role of the hipot tester and explain how it compares to other electrical test instruments used in the industry. We will also highlight how to choose the right hipot tester for your specific needs.

1. What is a Hipot Tester and How Does it Work?

A hipot tester (short for high potential tester) is a specialized electrical testing tool designed to verify the insulation integrity of electrical equipment. By applying a high voltage to the equipment, the hipot tester helps detect any weaknesses in the insulation, ensuring that the electrical system can safely withstand real-world electrical stresses such as power surges and fault conditions.

Unlike conventional electrical testers, such as multimeters or insulation resistance testers, which measure basic electrical parameters like voltage or current, the hipot tester specifically tests the ability of equipment to handle high-voltage scenarios without insulation failure. It is an essential device for ensuring the safety of high-voltage electrical systems, preventing potential failures due to weak insulation.

2. What is the Difference Between a Hipot Tester and Other Electrical Testers?

While the hipot tester focuses on testing the high-voltage insulation of electrical equipment, other electrical testers serve different purposes. For example, a multimeter is used to measure basic electrical parameters such as voltage, current, and resistance. It cannot simulate extreme conditions like high-voltage stress or insulation breakdown.

An insulation resistance tester, another common electrical testing device, measures the resistance of insulation materials, but it does not apply high voltages to test the equipment’s ability to handle electrical stress. On the other hand, the hipot tester applies a voltage much higher than the normal operating voltage to determine whether the insulation can withstand high-voltage situations without failure.

In summary, while hipot testers test the high-voltage tolerance of insulation, other electrical testers focus on general electrical properties, making them suitable for routine maintenance, but not for high-stress insulation testing.

3. Why is a Hipot Tester Essential for Electrical Equipment Safety?

The hipot tester plays a vital role in maintaining the safety of electrical equipment by ensuring that it can handle unexpected electrical surges, faults, and extreme voltage situations. This is especially important for high-voltage systems, such as transformers, circuit breakers, and switchgear, where insulation failure can lead to catastrophic accidents, downtime, and costly repairs.

By testing equipment at a voltage higher than its rated operating voltage, a hipot tester helps verify that the insulation is strong enough to withstand real-world conditions. Equipment that fails this test may pose serious risks during operation, making it essential for engineers to conduct these high-voltage tests during installation and regular maintenance.

4. How to Select the Right Hipot Tester for Your Needs?

Choosing the right hipot tester depends on several factors, including the voltage requirements of your equipment, the type of electrical system you're working with, and the specific conditions under which the testing will occur. For example, high-voltage equipment like transformers and switchgear will require a hipot tester with a higher voltage rating to properly simulate extreme operating conditions.

Additionally, different models of hipot testers may offer features like modular design, flexible voltage and current settings, and portability for field testing. It's essential to select a device that not only meets your voltage requirements but also fits your testing environment, whether you're testing equipment in a factory, on-site, or in a high-altitude location.

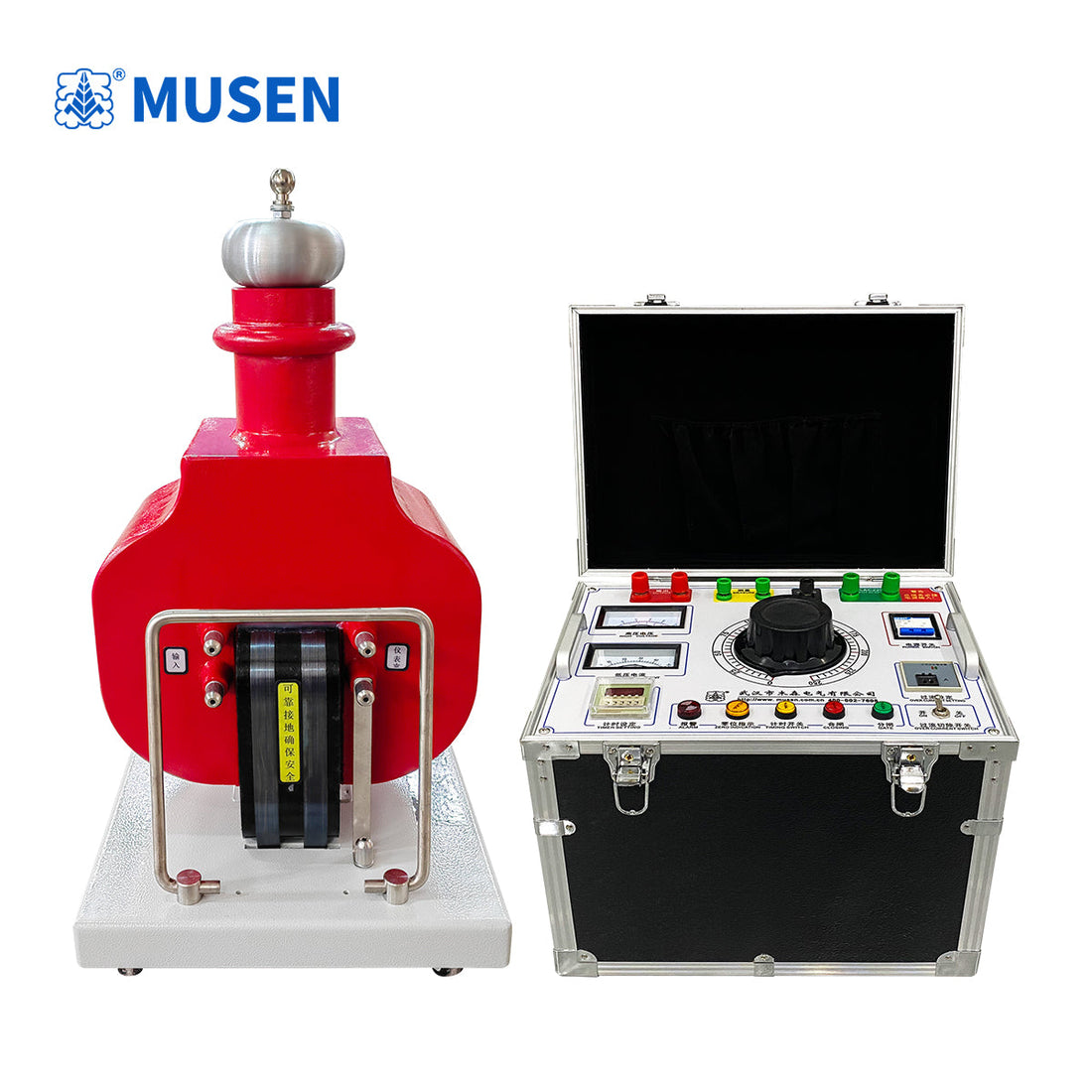

The MSYDJZ(Q) Hipot Tester from Wuhan Musen Electric Co., Ltd. is a highly flexible and reliable option, supporting both AC and DC high-voltage tests with a wide range of capacities and voltages to suit various equipment types and testing conditions.

Why a Hipot Tester is Critical for Ensuring Electrical Equipment Reliability

In conclusion, a hipot tester is an essential tool for electrical engineers and technicians to ensure the safety and reliability of electrical equipment. By simulating high-voltage stress, the hipot tester helps verify that equipment's insulation is strong enough to withstand extreme conditions, preventing dangerous failures and improving the long-term performance of power systems.

When selecting a hipot tester, it's crucial to consider your equipment's voltage requirements, testing environment, and the features offered by different models. For those in need of a reliable and versatile hipot tester, the MSYDJZ(Q) from Wuhan Musen Electric Co., Ltd. is an excellent choice. It offers the following benefits:

1. Dual-Use Capability (AC/DC): Supports both AC and DC high-voltage testing for a wide range of applications.

2. Multiple Transformer Options: Choose between oil-immersed, dry, or gas-insulated transformers based on your specific requirements.

3. Modular Design: Offers flexibility for upgrading, expansion, and easy transportation.

4. Wide Voltage and Capacity Range: Available in capacities from 1.5kVA to 300kVA, with voltages ranging from 50kV to 150kV.

5. Comprehensive Protection Features: Includes overcurrent, overvoltage, and zero-start protections to ensure safe operation.

6. Wide Testing Range: Ideal for testing transformers, switchgear, cables, and other high-voltage equipment.

For more information on the MSYDJZ(Q) hipot tester, visit our product page and learn how it can enhance the safety and reliability of your electrical testing procedures.
