What Are the Standards and Requirements for AC Withstand Voltage Testing and How Can You Ensure Power Equipment Safety?

In global power engineering projects, insulation verification is a mandatory step before energizing high-voltage assets. Understanding the standards and requirements of AC withstand voltage testing is essential for utilities, EPC contractors, renewable energy developers, and industrial operators.

This article explains applicable international standards, technical requirements, safety procedures, and how modern equipment ensures compliance and operational reliability.

 Which International Standards Govern AC Withstand Voltage Testing?

AC withstand voltage testing is regulated by widely recognized international standards, including:

• IEC standards for high-voltage test techniques

• IEEE standards for insulation testing

• Utility-specific technical specifications

These standards define:

• Test voltage levels

• Test duration

• Acceptance criteria

• Waveform requirements

• Safety procedures

For overseas projects, compliance ensures smoother FAT (Factory Acceptance Test) and SAT (Site Acceptance Test) approvals.

What Are the Core Technical Requirements?

To meet international compliance, AC withstand voltage testing must satisfy several critical requirements:

1. Accurate Voltage Control
The output must be stable and sinusoidal, typically at power frequency or variable frequency depending on the application.

2. Defined Test Duration
Test time is usually specified (e.g., 1 minute or longer depending on equipment class).

3. Proper Voltage Rise Procedure
Gradual and controlled voltage increase prevents insulation overstress.

4. Reliable Measurement and Monitoring
Continuous monitoring of voltage and current ensures early detection of abnormal conditions.

These requirements are fundamental to ensuring insulation integrity without causing damage.

 How Do You Ensure Operational Safety During Testing?

Safety is the highest priority in AC withstand voltage testing.

A professional system must include:

• Overvoltage protection

• Overcurrent protection

• Zero-start protection

• System detuning (flashover) protection

In addition, standard field practices include:

• Proper grounding

• Safety perimeter setup

• Warning signage

• Trained personnel operation

For overseas sites, especially renewable plants and remote substations, integrated protection functions significantly reduce operational risks.

Why Is Equipment Portability Important for International Projects?

Large substations and cable routes often require testing in complex field conditions.

Modern AC withstand voltage testing systems are designed with:

• Lightweight modular components

• Easy transportation

• Quick assembly and dismantling

Single components with reduced weight allow efficient site handling, particularly in offshore wind farms, desert solar plants, or mountainous transmission projects.

How Do Intelligent Control and Data Management Improve Compliance?

Digitalization plays a major role in global project documentation.

Advanced systems provide:

• Full automatic mode

• Manual mode

• Automatic tuning with manual voltage rise mode

They also support:

• Data storage with numeric indexing

• Remote printing capability

• Adjustable frequency starting point within defined sweep range

• DSP-based platform enabling function expansion and upgrades

• User-friendly human-machine interface

These features simplify reporting, improve traceability, and support regulatory audits.

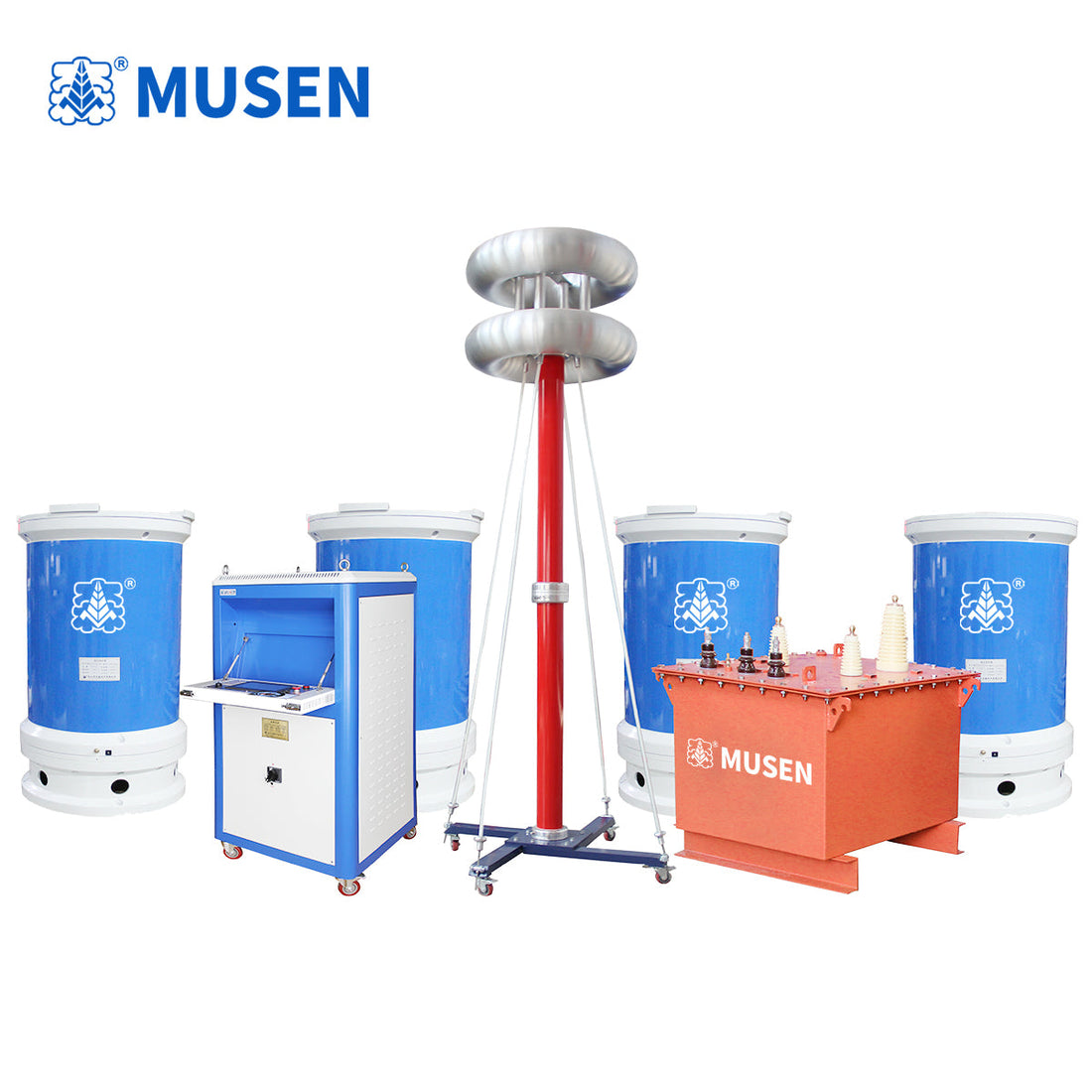

Product Overview – AC Withstand Voltage Testing Solution from Wuhan Musen Electric Co., Ltd.

The AC withstand voltage testing system from Wuhan Musen Electric Co., Ltd. (https://musenelectric.com/) is engineered for international power utilities, EPC contractors, and industrial users.

Key Advantages:

1. Comprehensive protection system including overvoltage, overcurrent, zero-start, and flashover protection.

2. Lightweight modular design for convenient on-site application.

3. Multiple operating modes: full automatic, manual, and auto-tuning with manual voltage rise.

4. Digital data storage with numeric indexing and remote printing for efficient documentation management.

5. Adjustable frequency starting point during automatic sweep for precise testing control.

6. Advanced DSP platform technology supporting function customization, upgrades, and enhanced HMI experience.

The system complies with international insulation testing requirements and is suitable for transformers, cables, GIS, generators, and other high-voltage equipment.

Compliance with international standards and strict operational procedures is essential to ensure the safety of high-voltage assets. Properly executed AC withstand voltage testing verifies insulation strength, prevents early failure, and guarantees long-term system reliability.

For overseas power engineering projects seeking safe, efficient, and standards-compliant solutions, Wuhan Musen Electric Co., Ltd. provides advanced testing systems designed for field performance and global technical support.

Visit the official website for detailed specifications and consultation:
https://musenelectric.com/
