What Are the Key Differences Between Series Resonance Test Systems and Traditional Test Systems?

Power equipment testing is essential for ensuring that electrical devices operate safely and efficiently. Understanding the differences between Series Resonance Test Systems (SRTS) and traditional test systems is crucial for selecting the right equipment for your needs. In this article, we will examine the key distinctions between the two, focusing on their working principles, testing accuracy, safety features, and economic benefits. By the end of this guide, you'll be equipped with the knowledge to make an informed decision.

1. How Does the Series Resonance Test System Work Differently from Traditional Test Systems?

1.1 Core Operational Differences

The Series Resonance Test System operates on a unique principle compared to traditional test systems. Traditional systems typically apply simple voltage or current excitation to test power equipment. However, the Series Resonance Test System leverages a resonance frequency method to generate high voltage with lower current. This creates a more efficient testing environment while reducing the strain on equipment.

By adjusting the frequency of the system to match the resonant frequency of the test circuit, the SRTS allows for high-voltage applications with significantly lower current. This characteristic makes it ideal for testing large power transformers, cables, and other sensitive electrical components. The ability to generate high voltages without exceeding current limits ensures the safety of both the equipment and the operator.

2. How Does the Series Resonance Test System Improve Testing Accuracy?

2.1 Enhanced Precision and Control

The Series Resonance Test System offers a higher level of control over both voltage and current, which significantly improves testing accuracy. Unlike traditional systems that may struggle with stable output, the SRTS provides precise frequency control, allowing for better regulation of voltage and current. This fine-tuned control leads to more reliable and accurate test results.

With improved frequency regulation, the SRTS can simulate real-world conditions more closely, ensuring that the results from transformer and cable tests are highly representative of actual performance. This makes it a valuable tool for power engineers looking for accuracy in their testing processes.

3. How Does the Series Resonance Test System Enhance Safety Compared to Traditional Test Systems?

3.1 Superior Safety Features and Protections

Safety is a top priority when working with high-voltage testing equipment. Traditional test systems often rely on complex safety protocols due to their high current output, which increases the risk of electrical hazards and equipment damage. In contrast, the Series Resonance Test System minimizes these risks by using high-voltage, low-current output.

The SRTS is equipped with multiple safety features, including over-voltage protection, over-current protection, and system detuning (flashover) protection. These protections ensure that the system operates within safe limits, reducing the likelihood of equipment failure or safety incidents. Additionally, the low current output reduces the risk of electrical fires and overheating, making it a safer option for both the equipment and operators.

4. How Does the Series Resonance Test System Offer Economic Benefits?

4.1 Cost Efficiency and Long-Term Savings

The Series Resonance Test System not only improves testing accuracy and safety but also provides economic advantages over traditional systems. Due to its ability to generate high voltage with lower current, the SRTS reduces energy consumption, equipment wear, and maintenance costs. This efficiency leads to significant long-term savings.

Additionally, the SRTS enables faster testing, which translates to lower labor costs and reduced downtime. The system’s high efficiency, combined with its longer lifespan, makes it a more cost-effective solution for power equipment manufacturers and testing service providers.

5. Recommended Series Resonance Test Systems for Power Equipment Testing

5.1 Explore Our SRTS Models

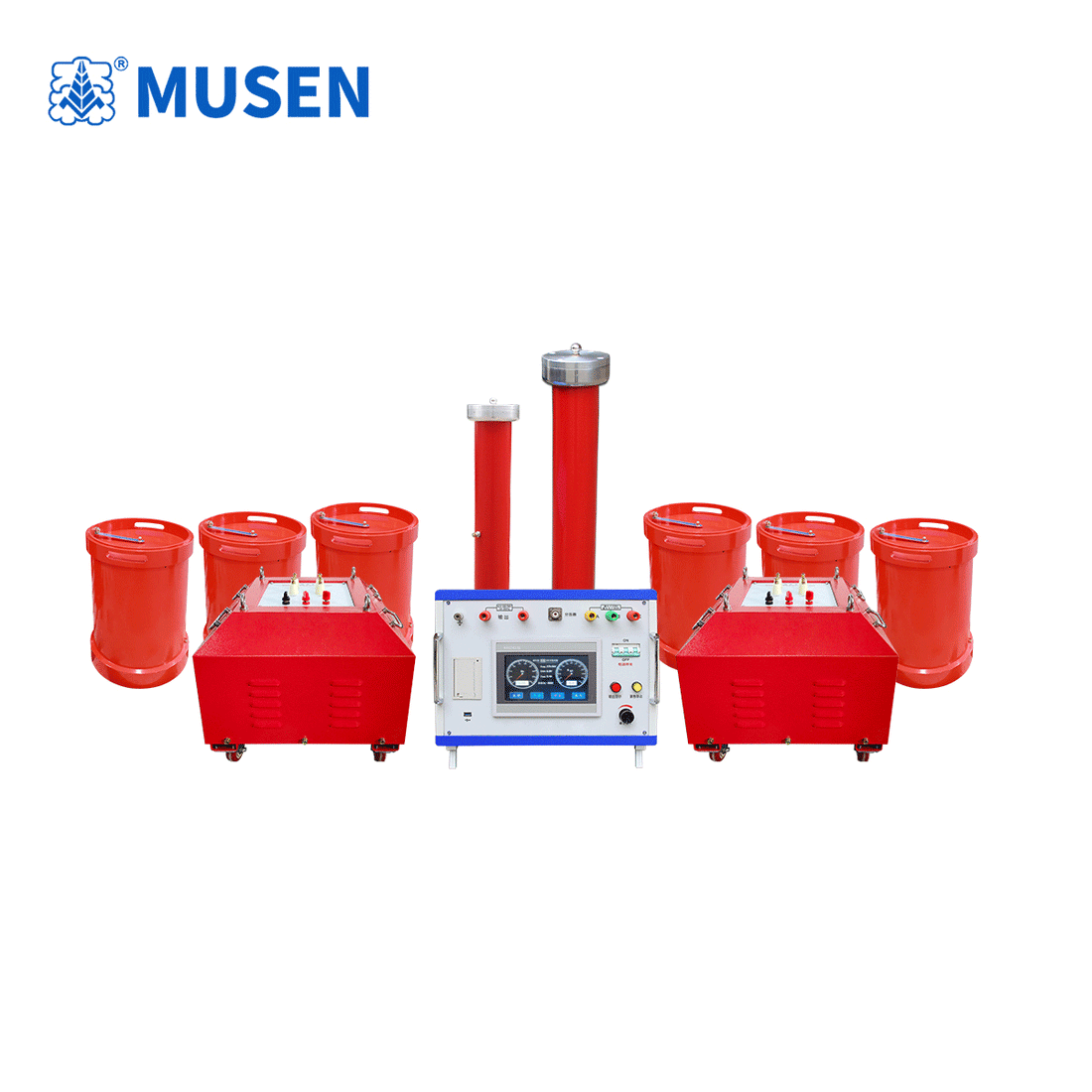

For those looking to upgrade their power equipment testing capabilities, Musen Electric offers a range of Series Resonance Test Systems (SRTS) to suit different needs. Our systems are widely used in substation tests, power cable tests, and transformer testing.

Popular SRTS Models:

• 135kVA/108kV

• 108kVA/108kV

• 270kVA/270kV

• 540kVA/270kV

• 1620kVA/540kV

• 8100kVA/500kV

Each of these models is equipped with features that ensure efficient and safe testing, including:

• Over-voltage, over-current, zero-point start, and system detuning (flashover) protections

• Lightweight components for easy field use

• Fully automated, manual, and manual tuning modes

• Data storage with easy-to-retrieve and print test results

• Frequency sweeping within a user-defined range

Why Should You Choose the Series Resonance Test System?

In conclusion, the Series Resonance Test System offers distinct advantages over traditional test systems in terms of operational efficiency, testing accuracy, safety, and cost savings. Whether you're testing transformers, cables, or other power equipment, the SRTS provides a reliable and cost-effective solution for high-voltage testing.

At Musen Electric, we are committed to offering high-quality, high-performance testing equipment to power engineers and manufacturers worldwide. For more information or to inquire about specific models, visit our official website at www.musenelectric.com.
