What Are the Key Advantages of a Frequency Resonance Test System in Power Equipment Testing?

In high-voltage power systems, insulation reliability directly determines operational stability and asset lifespan. Utilities, EPC contractors, and industrial energy operators must conduct accurate AC withstand testing before commissioning and during maintenance cycles. Selecting the right testing technology is essential to ensure safety, efficiency, and compliance with IEC and IEEE standards.

Among modern diagnostic solutions, the Frequency Resonance Test System has become a widely adopted method for testing cables, GIS, transformers, and other capacitive equipment. This article outlines its core advantages and explains why it is increasingly preferred in global power engineering projects.

How Does It Improve Energy Efficiency in High-Voltage Testing?

Traditional high-voltage test transformers require substantial input power, especially when testing long cables with large capacitance. In contrast, a Frequency Resonance Test System operates on series resonance principles, generating high output voltage with significantly reduced input capacity.

Key efficiency benefits include:

• Lower power supply requirements

• Reduced generator size for field testing

• Minimized energy loss during operation

• Optimized voltage amplification through resonance

For overseas projects in remote substations or renewable energy sites, reduced power demand translates directly into cost savings and logistical convenience.

Why Is It Safer for Equipment and Operators?

Safety is a primary concern in AC withstand testing. A properly designed Frequency Resonance Test System offers intrinsic protection advantages:

• Limited short-circuit current during breakdown

• Automatic tuning to resonance frequency

• Over-voltage and over-current protection

• Real-time monitoring and emergency shutdown

Because the system naturally limits fault current under resonance conditions, it reduces thermal and electrical stress on the test object, improving both equipment protection and operator safety.

What Makes It Ideal for Large Capacitive Loads?

Power cables and GIS installations exhibit high capacitance. Conventional test systems may become bulky and inefficient under these conditions.

The Frequency Resonance Test System is particularly suitable for:

• Long-distance XLPE cable commissioning

• GIS substations

• Power transformer AC testing

• Large industrial power networks

Its adjustable frequency range allows precise matching with different capacitive loads, ensuring stable voltage output even in complex field environments.

How Does Modularity Enhance Field Deployment?

International engineering projects demand flexibility and portability. Modern resonance systems are designed with modular reactors, allowing:

• Scalable voltage and capacity configuration

• Easier transportation to overseas project sites

• Simplified on-site assembly

• Adaptability to multiple voltage classes

This modular structure reduces shipping costs and improves testing efficiency across various project phases.

Why Choose Wuhan Musen Electric Co., Ltd?

Wuhan Musen Electric Co., Ltd is a specialized manufacturer of advanced high-voltage testing equipment serving global utilities and EPC contractors. The company provides customized system configurations based on voltage level, capacity requirements, and project conditions.

Official Website:
https://musenelectric.com/

With extensive export experience, Musen Electric ensures that every system meets international standards and field performance expectations.

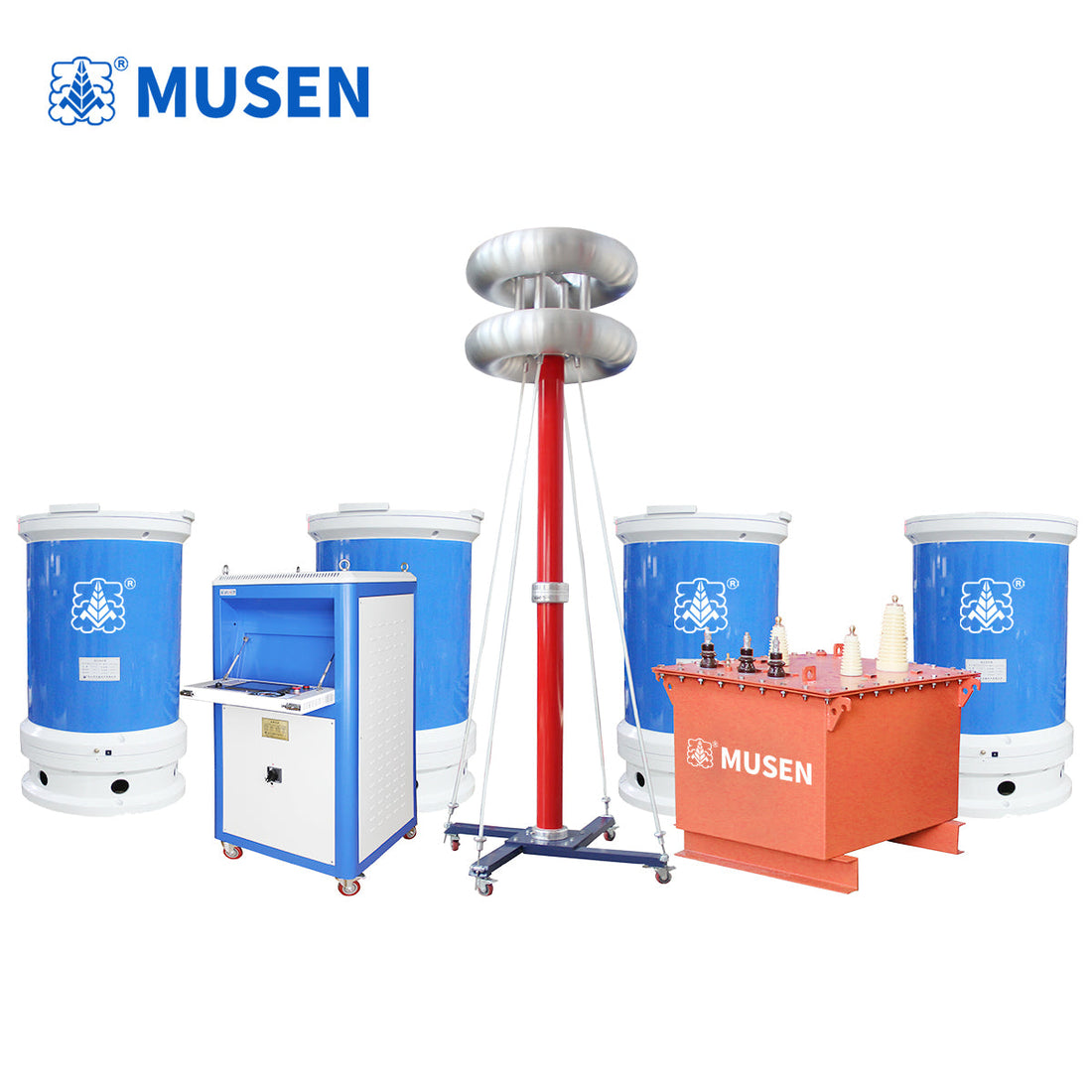

Product Overview: Frequency Resonance Test System

The Frequency Resonance Test System developed by Wuhan Musen Electric is engineered for medium- and high-voltage insulation testing applications worldwide.

Core Advantages:

• Wide frequency adjustment range for various capacitive loads

• Modular reactor configuration for flexible capacity expansion

• Compact and lightweight design for overseas deployment

• Intelligent digital control system with accurate voltage regulation

• High Q-factor design for efficient voltage amplification

• Comprehensive safety protection and compliance with IEC standards

Designed for cable commissioning, GIS testing, and transformer AC withstand verification, the system combines energy efficiency, operational safety, and precise voltage control. For international power engineering teams seeking reliable and scalable high-voltage solutions, this system provides a technically advanced and cost-effective choice.

In modern power infrastructure projects, testing efficiency, safety, and compliance are non-negotiable requirements. The Frequency Resonance Test System offers clear advantages in energy efficiency, operational protection, and adaptability to large capacitive loads.

For global utilities and engineering firms, Wuhan Musen Electric delivers professionally engineered solutions that enhance testing reliability while optimizing project performance.

Visit https://musenelectric.com/ to explore detailed technical specifications and customized solutions for your next high-voltage testing project.
