What Are the Common Issues with AC/DC Insulation Strength Testers and How to Solve Them?

AC/DC insulation strength testers are essential tools for ensuring the safety and reliability of electrical equipment. However, like any other high-tech testing device, they can sometimes present issues that may affect performance. Whether you are testing transformers, cables, or switchgear, understanding these potential problems and knowing how to troubleshoot them is crucial for maintaining accurate results and efficient operation. In this article, we will explore the most common problems users face with AC/DC insulation strength testers and provide effective solutions to resolve them.

1. Unstable Test Results: Why Does It Happen and How to Fix It?

Unstable test results can compromise the accuracy of your electrical testing. But what causes this issue?

One of the most common issues encountered with AC/DC insulation strength testers is unstable test results. This is often due to several factors, such as low battery levels, interference from the testing environment, or aging internal components. When the battery voltage is too low, the tester may fail to provide a consistent output, leading to fluctuating or incorrect test readings. Additionally, electrical interference from nearby devices or external electromagnetic fields can disrupt the device's performance.

Solution:

• Battery Maintenance: Regularly check the battery charge and replace it when needed to avoid inconsistencies in test results.

• Environmental Factors: Ensure that the test environment is free of electromagnetic interference. Test in a controlled area where external factors do not influence the results.

2. Device Freezes or Won’t Power On: What Are the Possible Causes?

Is your AC/DC insulation strength tester failing to power on or freezing mid-operation? Here’s why this could be happening.

Another issue frequently encountered is when the tester fails to power on or freezes during use. This can be due to issues with the power supply, such as a loose connection, or internal problems like software malfunctions. A lack of sufficient power, whether from the battery or a faulty power supply, can cause the device to shut down or freeze. Furthermore, software bugs or hardware issues may also cause the device to become unresponsive.

Solution:

• Check Power Supply: Always verify the power supply is stable and properly connected. If using batteries, ensure they are charged or replaced when necessary.

• Software Reset: If the device freezes, try performing a system restart. If issues persist, consider updating the software or performing a system diagnostic.

At Musen Electric, we manufacture durable, user-friendly AC/DC insulation strength testers equipped with advanced features that minimize the risk of device freezing. Our testers are built to offer consistent performance even in demanding conditions.

3. Inaccurate Voltage Settings: How to Correct Voltage Settings and Improve Test Accuracy?

What should you do if the voltage settings on your tester are inaccurate? Here’s how to handle this problem.

Inaccurate voltage settings are another issue that can lead to unreliable test results. Voltage miscalculations may occur if the device is improperly calibrated or if the settings are incorrectly adjusted. Using the wrong voltage for the test could result in failed insulation strength tests, potentially compromising safety.

Solution:

• Proper Calibration: Always calibrate your tester before using it. Calibration ensures that the tester’s output voltage is accurate and reliable.

• Adjust Settings Correctly: Double-check the voltage settings before each test to ensure they align with the equipment being tested. Most AC/DC insulation strength testers include a built-in calibration feature to adjust the voltage to the desired level.

4. Overheating or Auto-Shutdown: How to Prevent Overheating Issues?

What can cause your AC/DC insulation strength tester to overheat or shut down unexpectedly?

Overheating is a common problem, especially during prolonged or high-load testing. The internal components of the tester generate heat during operation, and if the device is not properly ventilated, it may shut down automatically to prevent damage. Excessive use without breaks, poor ventilation, or operating the tester beyond its capacity can contribute to overheating.

Solution:

• Ensure Adequate Ventilation: Always use the tester in a well-ventilated area to allow heat to dissipate effectively.

• Avoid Overloading: Avoid using the device at maximum capacity for extended periods. It’s important to let the tester cool down between uses, especially during high-voltage tests.

Musen Electric’s AC/DC insulation strength testers are designed with efficient cooling systems to prevent overheating, ensuring stable operation during even the most demanding testing scenarios.

To conclude, while AC/DC insulation strength testers are invaluable tools in electrical testing, users must be aware of the common issues that can affect their performance. From unstable test results to overheating, these problems are typically caused by simple issues like low battery, power supply problems, incorrect voltage settings, or poor ventilation. By understanding these issues and following the recommended troubleshooting steps, users can ensure that their testing equipment remains reliable and accurate.

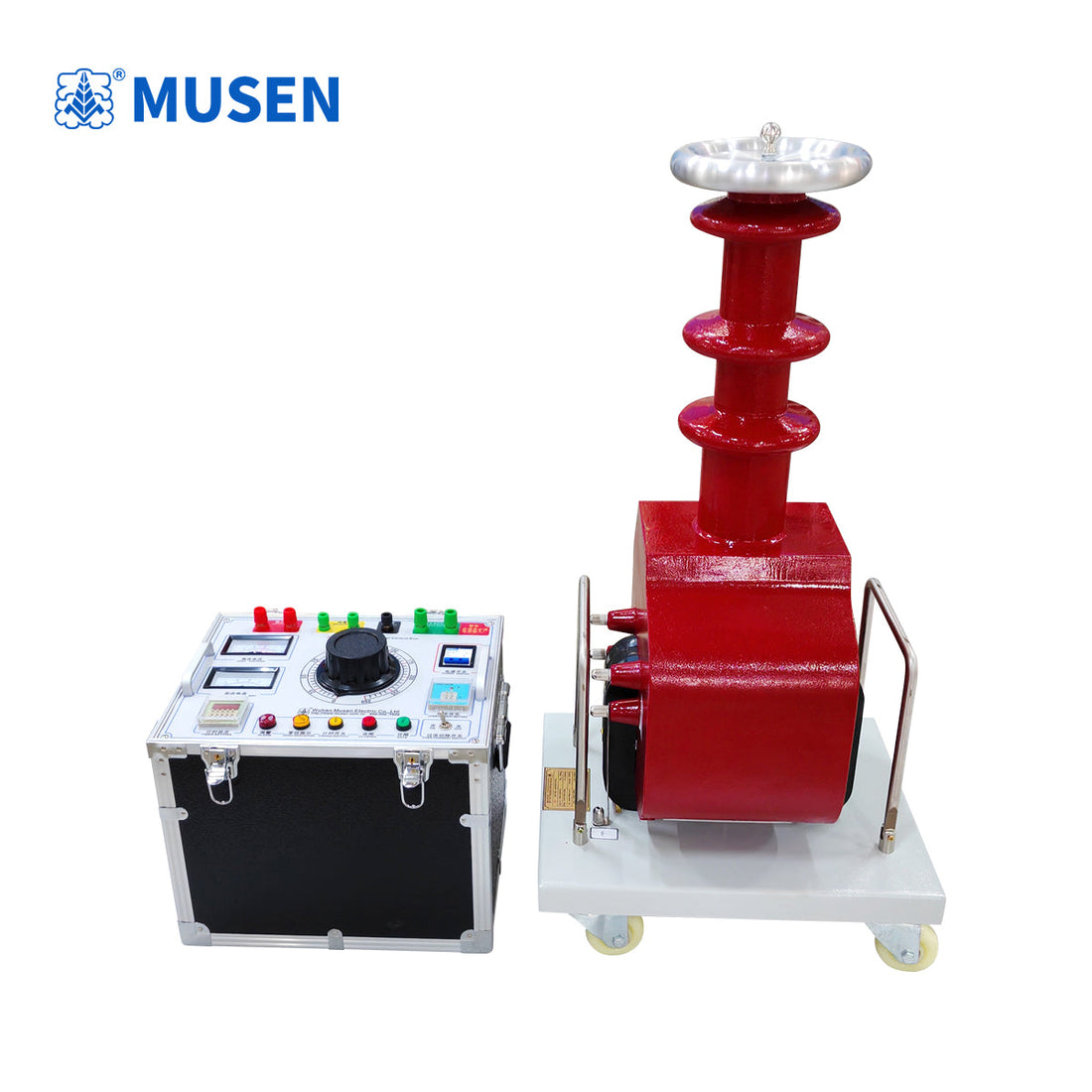

For those looking for a versatile and reliable testing solution, we recommend the MSYDJZ(W) Q High Voltage Tester. Here’s why:

• Dual Functionality: It supports both AC and DC testing, including leakage current testing.

• Customizable Transformer Options: Choose from oil-immersed, dry-type, or gas-filled transformers to match various testing scenarios.

• Modular Design: The system is flexible, allowing users to mix and match components for easy upgrades, transport, and field use.

• Wide Capacity Range: Offers capacities ranging from 1.5kVA to 300kVA, and voltage options from 50kV to 150kV.

• Comprehensive Protection Features: Includes overcurrent, overvoltage, and other safety features to ensure stable and safe operations.

• Versatile Applications: Ideal for testing switchgear, transformers, cables, insulators, and more.

For more information, visit Musen Electric and explore our range of high-quality testing equipment.
