What Are the Advantages of the High Voltage AC Resonance Test System in Power Equipment Testing?

What Are the Advantages of the High Voltage AC Resonance Test System in Power Equipment Testing?

In the electrical industry, ensuring the safety and functionality of power equipment is crucial. Traditional methods for testing high-voltage devices often face challenges such as time consumption, accuracy, and safety risks. With the advancement of technology, the High Voltage AC Resonance Test System has emerged as a more efficient, safe, and precise alternative. This article explores the key advantages of using the High Voltage AC Resonance Test System for power equipment testing and how it has become a game-changer in modern electrical engineering.

What Is the High Voltage AC Resonance Test System?

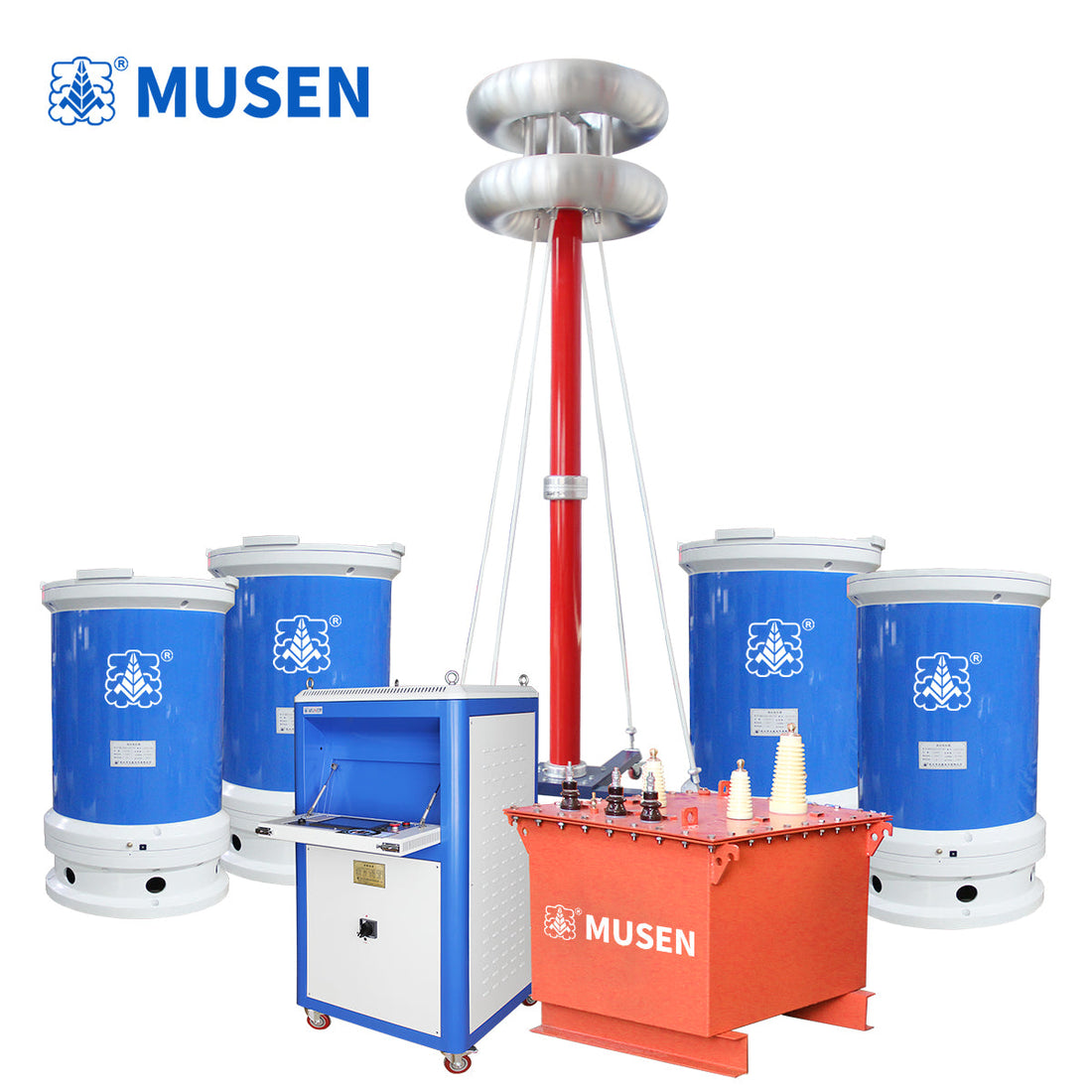

The High Voltage AC Resonance Test System is a sophisticated testing device used for high-voltage testing of electrical equipment such as transformers, circuit breakers, and cables. It utilizes resonance technology to generate AC voltage and simulate real-world operating conditions, ensuring that the equipment can withstand extreme conditions without damage. The system stands out for its ability to deliver precise and controlled voltage levels, making it an essential tool for power equipment testing.

Advantages of High Voltage AC Resonance Test System in Power Equipment Testing

1. Enhanced Safety Features
   One of the primary benefits of the High Voltage AC Resonance Test System is its emphasis on safety. The system comes equipped with multiple protection functions, including overvoltage, overcurrent, and zero-position startup protections. It also features a system detuning (flashover) mechanism that ensures the safety of both the equipment under test and the operators. This level of protection is crucial when dealing with high-voltage systems, where traditional testing methods may not offer adequate safeguards.

2. Portability and Ease of Use
   Traditional high-voltage testing equipment can be bulky and difficult to transport, which is a major challenge for field testing. In contrast, the High Voltage AC Resonance Test System is designed to be lightweight and portable, making it easy for engineers and technicians to use it on-site. Its compact size and easy setup process ensure that it can be deployed quickly and efficiently in various locations without needing specialized equipment or extensive preparation.

3. Flexibility in Operation
   The High Voltage AC Resonance Test System offers three distinct operating modes: fully automatic, manual, and manual tuning with automatic voltage ramping. This flexibility allows operators to tailor the testing process according to the specific requirements of the equipment under test. The ability to switch between different modes offers greater control, efficiency, and adaptability, setting it apart from traditional methods that often require more manual intervention.

4. Advanced Data Storage and Remote Printing
   Another significant advantage of the High Voltage AC Resonance Test System is its ability to store and print test data remotely. Test results are automatically saved with numerical identifiers, allowing users to easily organize and access historical data. This eliminates the need for cumbersome paper-based records and ensures quick retrieval of important information. Additionally, the system can print results remotely, further enhancing convenience and efficiency.

5. Precise Frequency Control
   Unlike traditional testing systems that may have fixed frequency settings, the High Voltage AC Resonance Test System allows users to adjust the starting frequency within a specified range. This level of precision is essential for testing various types of equipment and ensures that the testing conditions are optimized for each specific test. The system also features an automatic frequency sweep function, which simplifies the testing process and enhances the accuracy of results.

6. User-Friendly Interface with DSP Technology
   The High Voltage AC Resonance Test System incorporates DSP (Digital Signal Processing) technology, which enables easy customization and system upgrades. The user interface is intuitive and easy to navigate, reducing the learning curve for new users. Moreover, DSP technology ensures that the system remains adaptable, allowing for future enhancements and additional functionalities to meet the evolving needs of the electrical industry.

How the High Voltage AC Resonance Test System Improves Testing Efficiency and Accuracy

The High Voltage AC Resonance Test System is designed to streamline the testing process, making it faster and more accurate than traditional methods. Its automated features, combined with precise frequency control and advanced safety mechanisms, ensure that tests are conducted efficiently and safely.

Higher Accuracy in Test Results

Traditional high-voltage testing systems often rely on manual adjustments for voltage and current, which can lead to inconsistencies and errors. In contrast, the High Voltage AC Resonance Test System uses resonant voltage generation to provide more accurate and consistent test results. This ensures that the equipment being tested is subjected to realistic conditions, reducing the risk of failure in real-world applications.

Reduced Testing Time

The automation of the High Voltage AC Resonance Test System significantly reduces the time required to complete tests. With automated frequency scanning, voltage adjustments, and data recording, the system eliminates the need for constant manual intervention, speeding up the testing process. This time-saving aspect is particularly beneficial for large-scale testing programs or when working with multiple pieces of equipment.

Why Choose the High Voltage AC Resonance Test System for Power Equipment Testing?

The High Voltage AC Resonance Test System offers a wide range of advantages over traditional testing methods, including enhanced safety, portability, flexibility, and accuracy. Its ability to store and print data, along with its precise frequency control and user-friendly interface, makes it an ideal choice for modern power equipment testing.

For electrical engineers and professionals in the power industry, adopting the High Voltage AC Resonance Test System means achieving higher safety standards, faster testing times, and more reliable results. Whether for testing transformers, circuit breakers, or cables, the system provides a comprehensive solution to meet the demands of today's power equipment testing needs.

Product Overview: Key Features of the High Voltage AC Resonance Test System

The High Voltage AC Resonance Test System from Wuhan Musen Electric Co., Ltd. is designed to meet the highest standards in electrical testing. Some of the key features include:

1. Comprehensive Protection Mechanisms – Overvoltage, overcurrent, zero-position startup, and detuning protections ensure safe operation.

2. Lightweight and Portable Design – Easy to transport and deploy in the field for various testing scenarios.

3. Flexible Operating Modes – Fully automatic, manual, and manual tuning with automatic voltage ramping options for tailored testing.

4. Efficient Data Storage and Remote Printing – Automatic data storage with numerical identifiers and the ability to print results remotely.

5. Precise Frequency Control – Adjustable starting frequency for optimized testing conditions.

6. User-Friendly Interface with DSP Technology – Easy-to-use interface with the ability to upgrade and customize features.

For more information on the High Voltage AC Resonance Test System, visit Wuhan Musen Electric Co., Ltd..

The High Voltage AC Resonance Test System from Wuhan Musen Electric Co., Ltd. is an innovative and essential tool for the modern electrical industry. With its advanced features and multiple benefits, it offers superior performance in power equipment testing, ensuring both safety and efficiency.
