What Are the Advantages of the AC Series Resonance Test System in Power Testing?

The AC series resonance test system has become a critical tool in electrical testing due to its unique advantages in testing high-voltage equipment. In this article, we will explore the key benefits of this technology and its role in ensuring the safety and reliability of power systems. Whether you are working with transformers, cables, or switchgear, understanding the advantages of the AC series resonance test system can help you make informed decisions for your electrical testing needs.

What is an AC Series Resonance Test System?

An AC series resonance test system is a high-voltage testing device used to assess the insulation strength of electrical equipment by applying a resonant high-voltage AC. This system is known for its high precision, energy efficiency, and reliability. It is widely used in various sectors of the power industry to test transformers, cables, and other high-voltage equipment. The key advantage of using an AC series resonance test system lies in its ability to simulate real operational conditions with high accuracy.

Key Benefits of AC Series Resonance Testing

• High Precision: Provides precise and adjustable voltage control during tests.

• Energy Efficiency: Minimizes power consumption compared to traditional testing methods.

• Safety: Reduces risks of failures by identifying insulation weaknesses early on.

Why is the AC Series Resonance Test System Important for Electrical Testing?

1. Accurate Testing for High-Voltage Equipment

The AC series resonance test system applies voltage at a frequency that resonates with the electrical equipment under test, offering accurate results. By using resonance, the system can efficiently apply a high-voltage test without consuming excessive energy. This makes it ideal for testing large and complex equipment such as transformers, switchgear, and high-voltage cables. Engineers can be confident that the insulation can withstand real-world conditions, preventing future failures in the power grid.

2. Energy Efficiency and Cost-Effectiveness

Traditional high-voltage testing methods often require significant energy input, leading to higher operational costs. However, the AC series resonance test system operates with much lower power consumption due to its resonant frequency feature. By tuning to the system’s natural resonant frequency, the test device can produce the necessary high voltage with minimal energy, resulting in lower operational costs over time. This makes it a cost-effective choice for power engineers looking to optimize their testing procedures.

3. Enhanced Safety and Reliability

The AC series resonance test system ensures that the testing process is conducted under controlled and safe conditions. The system includes various protection features like over-voltage and over-current protection to safeguard both the equipment under test and the testing personnel. The ability to perform non-destructive testing by applying resonant voltage also minimizes the risk of damage to equipment. This makes the system especially valuable in substations, power plants, and other high-stakes electrical environments.

4. Flexibility in Testing Various Equipment

One of the standout features of the AC series resonance test system is its flexibility in testing a wide range of high-voltage equipment. Whether you are testing cables, transformers, or switchgear, this system provides the necessary voltage and frequency control for different testing scenarios. The flexibility of the system means it can be used in a variety of electrical power applications, making it a versatile tool in the power testing industry.

How the AC Series Resonance Test System Improves Power Engineering?

1. Compliance with Industry Standards

Electrical testing must meet strict industry regulations and safety standards. The AC series resonance test system is designed to meet these standards by offering precise voltage control and advanced protection features. The system ensures that electrical equipment is tested to the highest levels of safety and compliance, giving engineers and operators confidence in the integrity of their power equipment.

2. Portability for On-Site Testing

For field engineers, the portability of the AC series resonance test system is a significant advantage. These systems are designed to be compact and easy to transport, allowing engineers to conduct tests at remote sites, power plants, or substations. This on-site testing capability streamlines the testing process and ensures that equipment is properly validated, even in challenging environments.

3. Real-Time Monitoring and Data Logging

Modern AC series resonance test systems come equipped with real-time monitoring and data logging capabilities. Engineers can continuously monitor test parameters and results through digital displays or remote monitoring software. The system can also store test data, providing detailed records that can be accessed later for analysis or documentation. This feature is especially valuable for regulatory compliance and long-term equipment maintenance.

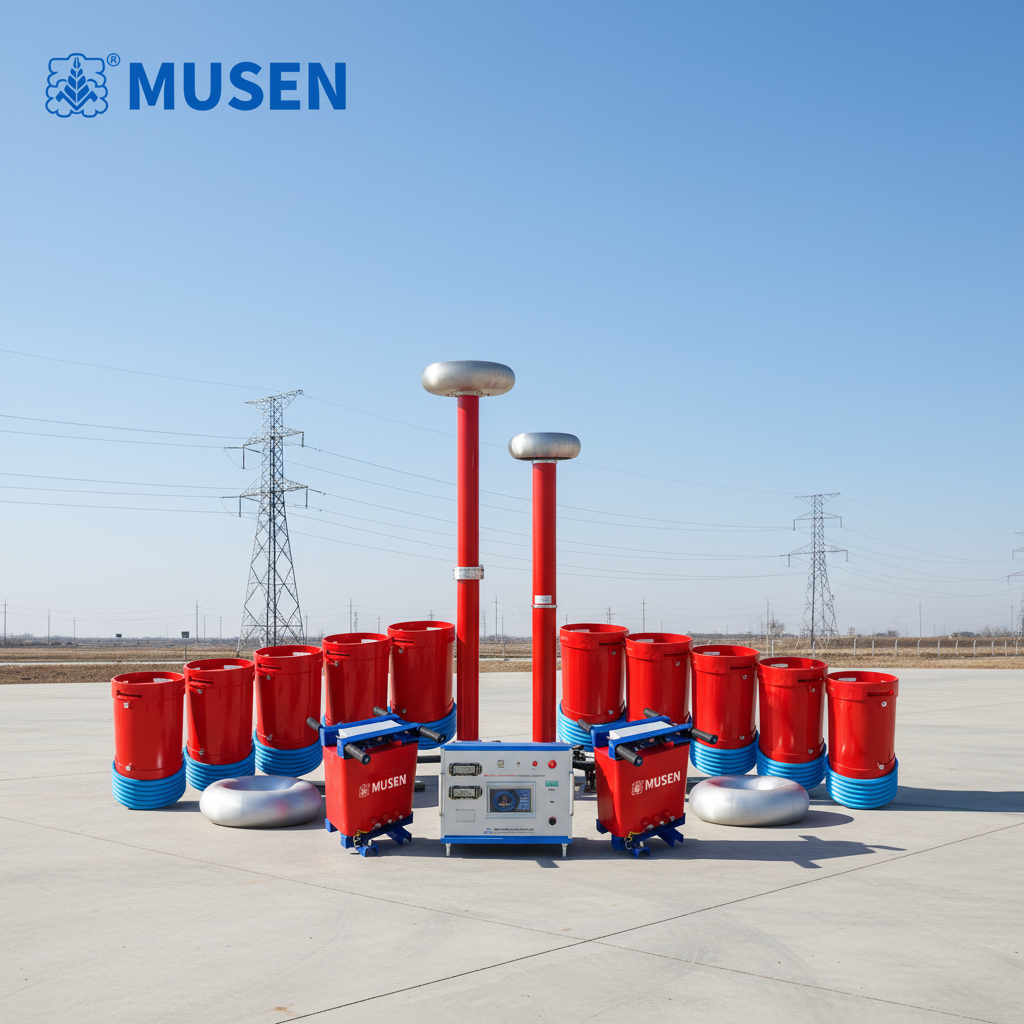

Product Overview: AC Series Resonance Test System by Wuhan Musen Electric Co., Ltd.

Product Features

At Wuhan Musen Electric Co., Ltd., we offer a range of high-performance AC series resonance test systems designed to meet the demanding requirements of power testing. Our systems are suitable for testing transformers, switchgear, and cables with ease and efficiency. Here are some of the key features of our test systems:

• High Voltage and Power Capability: Our systems cover a range of power capacities, including 108kV, 270kV, 540kV, and more.

• Energy-Efficient Design: Operates with minimal power consumption while delivering high-voltage testing.

• Multiple Protection Features: Includes over-voltage, over-current, and other safety protections.

• User-Friendly Interface: Equipped with an intuitive control panel for easy operation and monitoring.

• Portability: Lightweight and compact design for easy transportation to various testing sites.

• Data Storage and Remote Monitoring: Stores test data for easy retrieval and offers remote monitoring options.

The Essential Role of AC Series Resonance Test Systems

The AC series resonance test system has proven to be a powerful and efficient tool in the field of electrical power testing. Its accuracy, energy efficiency, and ability to enhance safety make it an indispensable asset for power engineers and electrical testing professionals. Whether you're conducting routine maintenance or testing new equipment, this system ensures reliable and safe testing for high-voltage electrical assets.
