What Are High Voltage Test Methods and How Can They Ensure Electrical Safety and Insulation Reliability?

Electrical insulation is one of the most critical factors determining the safety and reliability of power equipment. Transformers, cables, switchgear, and other high-voltage components operate under significant electrical stress. If insulation fails, the result can be equipment damage, system outages, or serious safety risks.

For this reason, power utilities, manufacturers, and engineering contractors perform high voltage testing before equipment is commissioned or returned to service. These procedures help verify insulation strength and identify hidden defects before they develop into failures.

In modern testing systems, specialized equipment such as a High Voltage Test Transformer is used to generate controlled high-voltage levels for accurate insulation evaluation. This article explains the main high voltage test methods, how they work, and how engineers use them to ensure electrical safety and insulation reliability.

High voltage test methods are procedures used to apply electrical stress above normal operating voltage to determine whether insulation systems can safely withstand high electrical loads.

The main purposes of these tests include:

• Verifying insulation strength

• Detecting hidden manufacturing defects

• Confirming installation quality

• Ensuring compliance with international electrical standards

These tests are commonly conducted on key power system components such as:

• Power transformers

• High-voltage cables

• Circuit breakers

• Switchgear systems

• Instrument transformers

By performing high voltage testing before equipment enters service, engineers can identify potential insulation weaknesses early and prevent costly failures in power systems.

2. How Do High Voltage Testing Procedures Work?

High voltage testing works by applying controlled electrical stress to the insulation system of a device and monitoring its response.

During testing, engineers evaluate several critical parameters:

• Insulation resistance

• Leakage current

• Partial discharge activity

• Dielectric breakdown voltage

If the insulation remains stable and no abnormal discharge occurs during the test period, the equipment passes the test.

To create the required test voltage safely and accurately, testing systems typically rely on a High Voltage Test Transformer, which converts standard input voltage into the higher levels required for insulation testing.

3. What Are the Most Common High Voltage Test Methods Used in Power Engineering?

Different electrical equipment requires different testing techniques. The most widely used high voltage test methods include the following.

AC Withstand Voltage Testing

AC testing applies alternating voltage at power frequency to simulate real operating conditions. It is commonly used for transformers, switchgear, and rotating machines.

DC Withstand Voltage Testing

DC testing is often used for high-voltage cable systems because it provides steady electrical stress across insulation.

Impulse Voltage Testing

Impulse testing simulates lightning strikes or switching surges to verify that insulation can withstand transient overvoltage events.

Partial Discharge Testing

This method detects microscopic electrical discharges inside insulation materials, which are often early indicators of insulation deterioration.

To perform these tests reliably, engineers often use a High Voltage Test Transformer as the main voltage generation component.

4. What Equipment Is Required for High Voltage Testing Systems?

A complete high voltage testing system typically includes several specialized components working together.

Common equipment includes:

• Voltage regulators

• Control cabinets

• Measuring instruments

• Voltage dividers

• Protection devices

At the center of these systems is the High Voltage Test Transformer, which provides the stable and adjustable high voltage required for insulation testing.

These systems are widely used in electrical equipment factories, substation commissioning projects, and power system maintenance programs.

5. Where Are High Voltage Test Methods Applied in Practice?

High voltage testing is used throughout the lifecycle of electrical equipment.

Factory acceptance testing

Manufacturers perform insulation verification before equipment is delivered to customers.

Substation commissioning

Newly installed equipment must be tested before it is connected to the power grid.

Preventive maintenance

Periodic testing allows utilities to detect insulation aging and reduce the risk of unexpected failures.

Research and development

Laboratories use high voltage testing to evaluate insulation materials and new electrical designs.

In all these scenarios, engineers rely on the stable voltage output generated by a High Voltage Test Transformer.

Because high voltage testing involves elevated electrical stress, safety procedures must always be followed.

Key safety practices include:

• Proper grounding of equipment

• Using certified testing devices

• Monitoring leakage current and discharge levels

• Maintaining safe operating distances

• Following international testing standards

A properly designed High Voltage Test Transformer with built-in protection features helps improve operational safety and testing accuracy.

To meet the needs of modern power system testing, Wuhan Musen Electric Co., Ltd. provides advanced electrical testing solutions for utilities, manufacturers, and engineering companies worldwide.

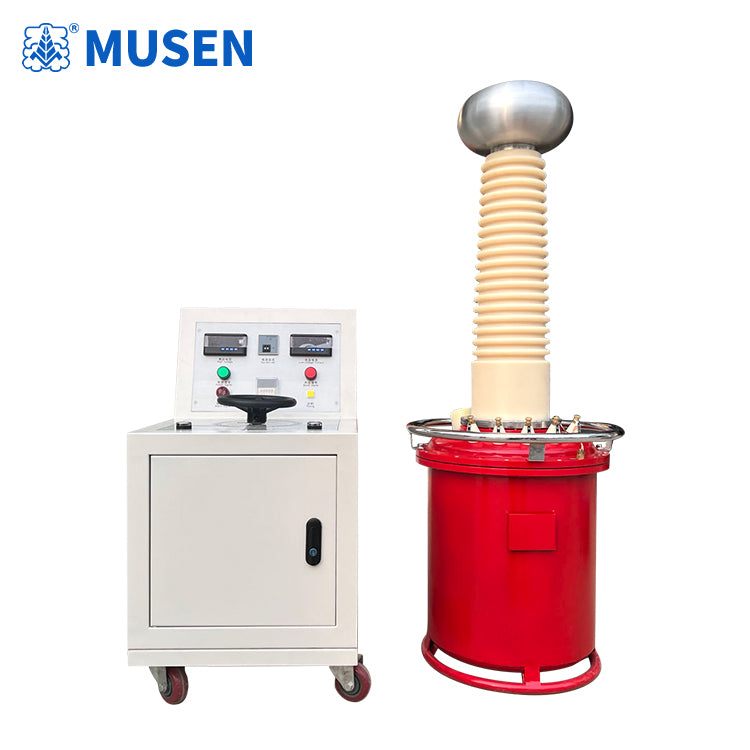

One of the company’s leading products is the MSYDQ High Voltage Test Transformer, designed for reliable insulation testing of electrical equipment and high-voltage cable systems.

Key advantages include:

Ultra-light and portable

The unit is smaller and 40–65% lighter than traditional oil-immersed transformers, making it easier to transport and suitable for field testing.

Maintenance-free and environmentally clean

Using SF6 gas insulation, the system eliminates oil leakage, pollution, and routine oil replacement.

Strong environmental adaptability

After relocation, the equipment can operate immediately without installation and maintains stable performance even under harsh weather conditions.

Excellent insulation performance

High dielectric strength and extremely low corona discharge and partial discharge ensure accurate testing results.

Reliable safety protection

Built-in protection against overcurrent, overvoltage, and overheating ensures safe operation and long service life.

For more information about professional high voltage testing equipment, visit:
Wuhan Musen Electric Co., Ltd.
www.musenelectric.com

High voltage test methods are essential tools for verifying insulation reliability and ensuring the safety of electrical power systems. By applying controlled electrical stress, engineers can detect hidden insulation defects before equipment enters operation.

From factory testing to field commissioning and routine maintenance, these methods help maintain stable and reliable electrical infrastructure. Equipment such as the High Voltage Test Transformer plays a central role in generating the high voltage required for accurate testing.

With advanced solutions from Wuhan Musen Electric Co., Ltd., electrical engineers and testing professionals can perform safe, efficient, and precise high voltage testing across a wide range of power system applications.
