How Does a VLF Hipot Tester Compare with Other Test Equipment?
A vlf hipot tester applies alternating voltage below 1 Hz, while power-frequency AC equipment operates at conventional mains frequency and a DC hipot tester applies direct voltage. These methods impose different electrical stresses and must be selected according to the cable, test objective and applicable procedure.
Why Is Very Low Frequency Used for Cable Testing?
A power cable behaves partly as a capacitive load during AC testing. For an ideal capacitive load, RMS current follows I = 2πfCV. Reducing frequency can therefore reduce the current required for a given voltage and capacitance. A Very Low Frequency (VLF) Generator is useful for applicable field tests on shielded power cable systems. The test method must still be suitable for the cable insulation and the purpose of the assessment.
What Are the Differences Between Testing Methods?
| Method | Output | Typical objective | Key limitation |
|---|---|---|---|
| VLF AC hipot | Very-low-frequency AC | Prescribed cable withstand testing and selected diagnostics | Requires a suitable VLF procedure and rated load. |
| Power-frequency AC | Conventional-frequency AC | AC withstand testing where specified | Long cables can require substantial capacitive current. |
| DC hipot | Direct voltage | DC withstand testing where permitted | Results are not universally interchangeable with VLF AC results. |
| PD instrument | Discharge measurement signals | Insulation diagnostic assessment | Requires suitable sensors, calibration and measurement methods. |
This comparison describes different principles rather than a universal ranking. Selection depends on insulation technology, cable history, owner requirements and the governing test standard.

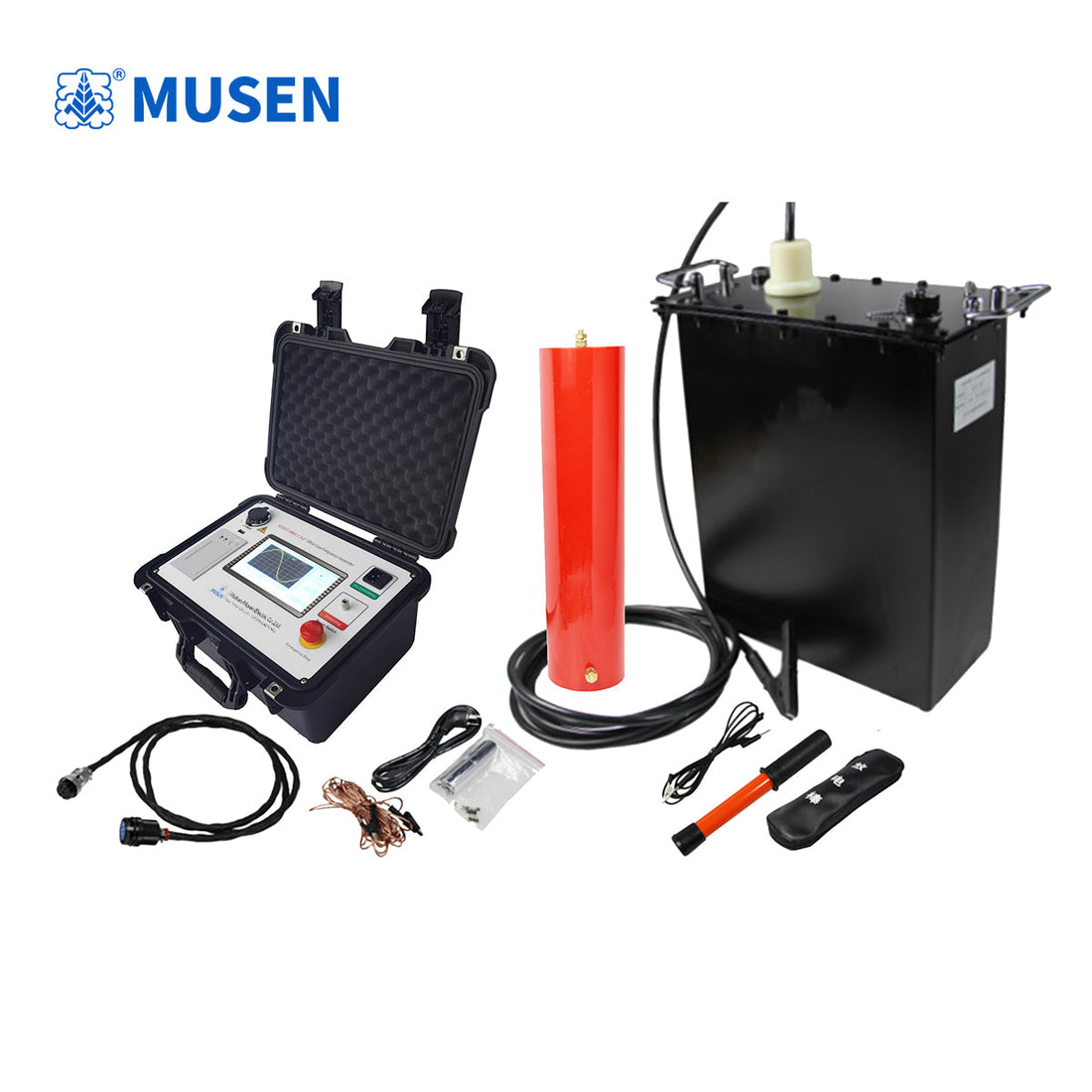

How Does the MSVLF Handle Different Cable Capacitances?
The supplied MSVLF product data lists three output frequencies with corresponding maximum load capacitances.
| Frequency | Maximum specified capacitance | Engineering consideration |
|---|---|---|
| 0.1 Hz | 1.1 µF | Verify the complete connected load against the rating. |
| 0.05 Hz | 2.2 µF | Provides a higher stated capacitance limit. |
| 0.02 Hz | 5.5 µF | Provides the largest stated capacitance limit among the listed settings. |
These values must be confirmed against the exact instrument configuration and operating voltage. Lower frequency should not be selected without checking the applicable procedure.
Which Performance Features Are Specified?
| Feature | Supplied value or description |
|---|---|
| Rated voltage options | 30, 40, 50, 60, 80 and 90 kV, depending on model |
| Measurement accuracy | 1% |
| Peak voltage error | ≤3% |
| Waveform distortion | ≤5% |
| Protection action time | ≤10 ms |
| Control | Digital frequency conversion and microcomputer control |
| Regulation | High- and low-voltage closed-loop negative feedback, according to product information |
| Interface | Touchscreen, LCD, automatic storage and printing |
These are manufacturer-supplied values and descriptions. Obtain model-specific documentation before treating them as verified acceptance criteria.
What Is the Difference Between Withstand Testing and PD Diagnostics?
A VLF withstand test evaluates the cable's ability to tolerate a prescribed electrical stress. Partial Discharge (PD) measurement examines localized discharge activity. IEC 60270:2025 addresses charge-based PD measurement; UHF sensors, acoustic emission (AE) and acoustic detection may be used for suitable diagnostic applications. A basic Very Low Frequency Cable Tester should not be described as a complete PD localization system unless those functions are documented.
Which Standards Should Engineers Consult?
IEEE 400.2-2024 is directly relevant to VLF field testing of shielded power cable systems. IEC 60502-2:2014+AMD1:2024 addresses covered extruded-insulation power cables rated from 6 kV to 30 kV. IEC 60270:2025 covers charge-based partial-discharge measurement. Each standard has a distinct scope; none should be cited as proof of product certification without supporting evidence.
Frequently Asked Questions
Q: Is VLF testing always better than DC testing?
A: No. The appropriate method depends on cable insulation, test objectives and the governing procedure.
Q: Can an MSVLF tester locate partial-discharge sources?
A: Not by itself unless the exact system includes the required PD measurement and localization functions.
Q: Which MSVLF setting has the largest listed load capacity?
A: The supplied specification lists 5.5 µF at 0.02 Hz. Verify the model's voltage-dependent load limits.
Expert Review and Authoritative References
Technical Content Reviewed by: High-Voltage Diagnostic Specialists
Entity: MSVLF Ultra-Low Frequency Generator
Review scope: Comparison of test principles and standards relevance. No independent comparative laboratory trial is claimed.
