What Is a VLF Hipot Tester and How Does It Test Power Cables?

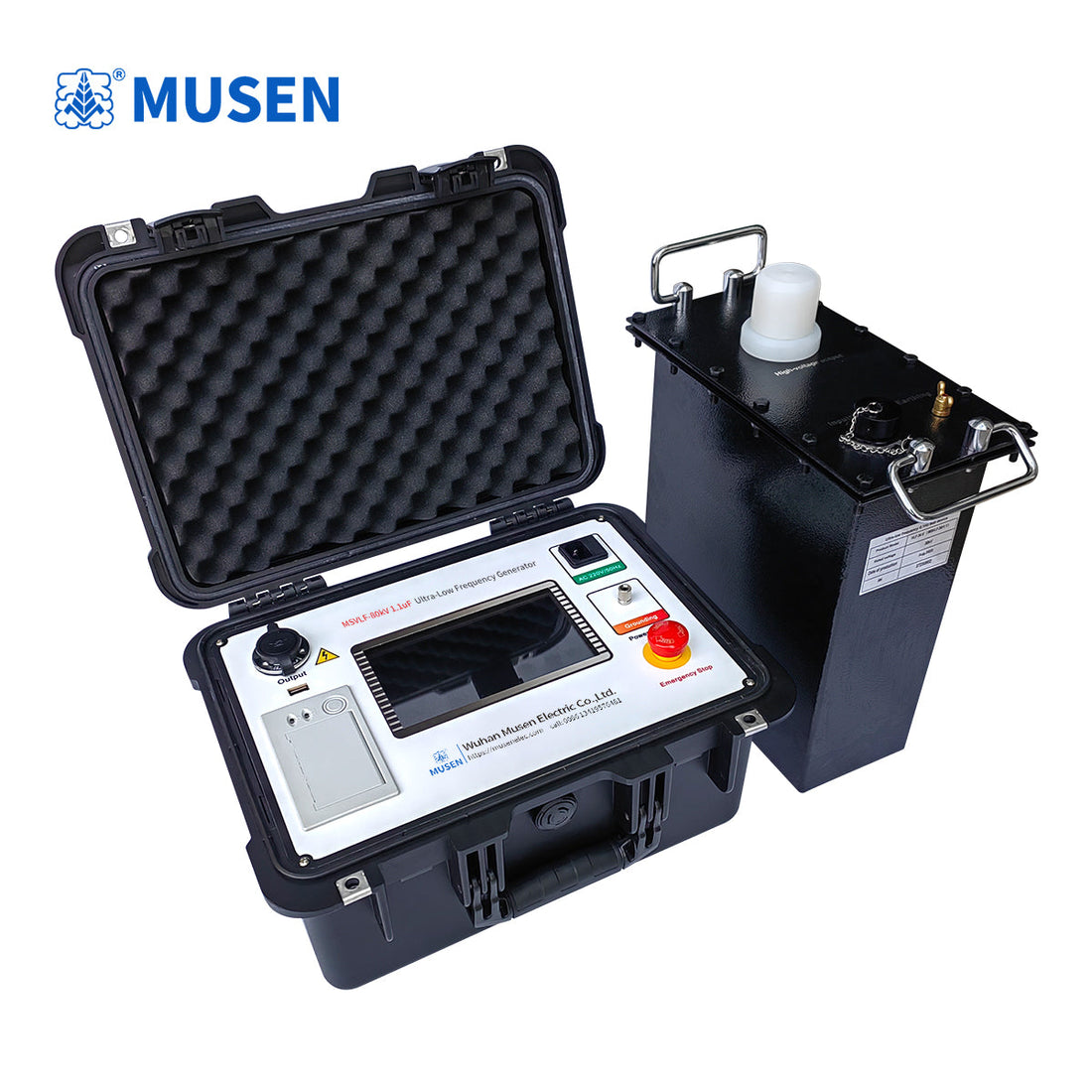

A vlf hipot tester applies very-low-frequency alternating voltage to evaluate the withstand capability of power cable insulation under a prescribed test procedure. The MSVLF series supports 0.1 Hz, 0.05 Hz and 0.02 Hz output settings, with model-dependent voltage ratings and load capacitance limits.
How Does an Ultra-Low Frequency Generator Work?
An Ultra-Low Frequency Generator produces AC test voltage below 1 Hz. Compared with conventional 50 Hz or 60 Hz testing, lower frequency can reduce the capacitive current required by a cable, making VLF equipment useful for field testing of shielded power cable systems. The MSVLF uses digital variable-frequency technology and microcomputer control. According to the supplied product specifications, voltage ramp-up, ramp-down, measurement and protection functions are automated. Operators must still select the appropriate voltage and duration according to the cable type, test objective and applicable standard.
What Are the Main MSVLF Specifications?
| Parameter | Supplied specification |
|---|---|
| Model designation | MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz |
| Rated voltage options | 30 kV, 40 kV, 50 kV, 60 kV, 80 kV and 90 kV, depending on configuration |
| Output frequency | 0.1 Hz, 0.05 Hz and 0.02 Hz |
| Maximum capacitance at 0.1 Hz | 1.1 µF |
| Maximum capacitance at 0.05 Hz | 2.2 µF |
| Maximum capacitance at 0.02 Hz | 5.5 µF |
| Measurement accuracy | 1%, as stated in supplied product data |
| Positive/negative peak voltage error | ≤3% |
| Voltage waveform distortion | ≤5% |
| Protection action time | ≤10 ms, as stated in supplied product data |
| Operating temperature | -10°C to +40°C |
| Relative humidity | ≤85% RH |
The exact voltage and load limits should be confirmed against the datasheet for the ordered configuration. The model designation should not be interpreted as evidence that every voltage option is available in every unit.
Which Features Support Field Operation?

Automated Control and Measurement
Microcomputer control supports the prescribed voltage increase, voltage decrease, measurement and protection sequence. This can help operators follow a repeatable procedure and record test conditions consistently.
Multiple Protection Functions
The supplied specifications list overvoltage protection and overcurrent protection on both high- and low-voltage sides. The stated action time is ≤10 ms. This value should be verified against official technical documentation and does not replace barriers, grounding or safe operating procedures.
Optical Control and Closed-Loop Regulation
The controller and high-voltage generator use a low-voltage control connection with optical control. The product description also specifies high- and low-voltage closed-loop negative-feedback regulation, intended to prevent capacitive voltage rise under the stated operating conditions. The exact performance claim should be confirmed in the manufacturer's technical documentation.
Display, Storage and Printing
The specified configuration includes a capacitive touchscreen, Chinese-character LCD display, automatic data storage, automatic printing and Chinese/English interface switching. These features support test documentation and multilingual operation.
How Does VLF Testing Relate to Other Diagnostics?
A withstand test checks whether insulation tolerates a defined electrical stress. Partial Discharge (PD) testing measures localized electrical discharge activity. IEC 60270:2025 addresses charge-based PD measurement, while UHF detection, acoustic emission (AE) and acoustic detection may support other diagnostic or localization applications when suitable instruments are used. A basic VLF generator should not be described as a PD measurement system unless that functionality is specifically provided.
Frequently Asked Questions
Q: Which frequencies are available on the MSVLF?
A: The supplied specifications list 0.1 Hz, 0.05 Hz and 0.02 Hz, subject to the exact model configuration.
Q: Does a VLF withstand test prove that a cable has no defects?
A: No. It evaluates withstand performance under specified conditions and does not identify every possible defect.
Q: Where can buyers request product documentation?
A: Visit www.musenelectric.com to request model-specific specifications and operating information.
Expert Review and Authoritative References
Technical Content Reviewed by: High-Voltage Diagnostic Specialists
Entity: MSVLF VLF Cable Testing Equipment
Review scope: Technical terminology, supplied product specifications and standards relevance. Independent certification or laboratory testing is not claimed.
- IEEE 400.2-2024 — IEEE Guide for Field Testing of Shielded Power Cable Systems Using Very Low Frequency (VLF), Less Than 1 Hz
- IEC 60502-2:2014+AMD1:2024 — Power Cables with Extruded Insulation, Part 2
- IEC 60270:2025 — High-Voltage Test Techniques: Charge-Based Measurement of Partial Discharges
