How Do You Perform a VLF Cable Withstand Test?
A vlf hipot tester performs a cable withstand test by applying a prescribed very-low-frequency AC voltage for a defined duration. Safe testing requires correct isolation, compatible equipment, controlled voltage application and verified discharge and grounding after the test.
What Should Be Checked Before Testing?
The engineer should identify the cable, confirm its insulation type and rated voltage, review the approved test procedure and establish a controlled work area. Disconnect equipment that cannot tolerate the test voltage and secure all possible energy sources according to the site safety procedure. Before starting, verify the following:
| Check | Required action |
|---|---|
| Cable identification | Confirm the correct circuit and test authorization. |
| Test profile | Verify voltage, frequency, duration and acceptance criteria. |
| Instrument rating | Confirm voltage and load limits for the selected model. |
| Connections | Inspect test leads, terminals and grounding points. |
| Work area | Install barriers, warning signs and access controls. |
| Discharge equipment | Prepare approved discharge and grounding equipment. |
How Should a Very Low Frequency Cable Tester Be Connected?

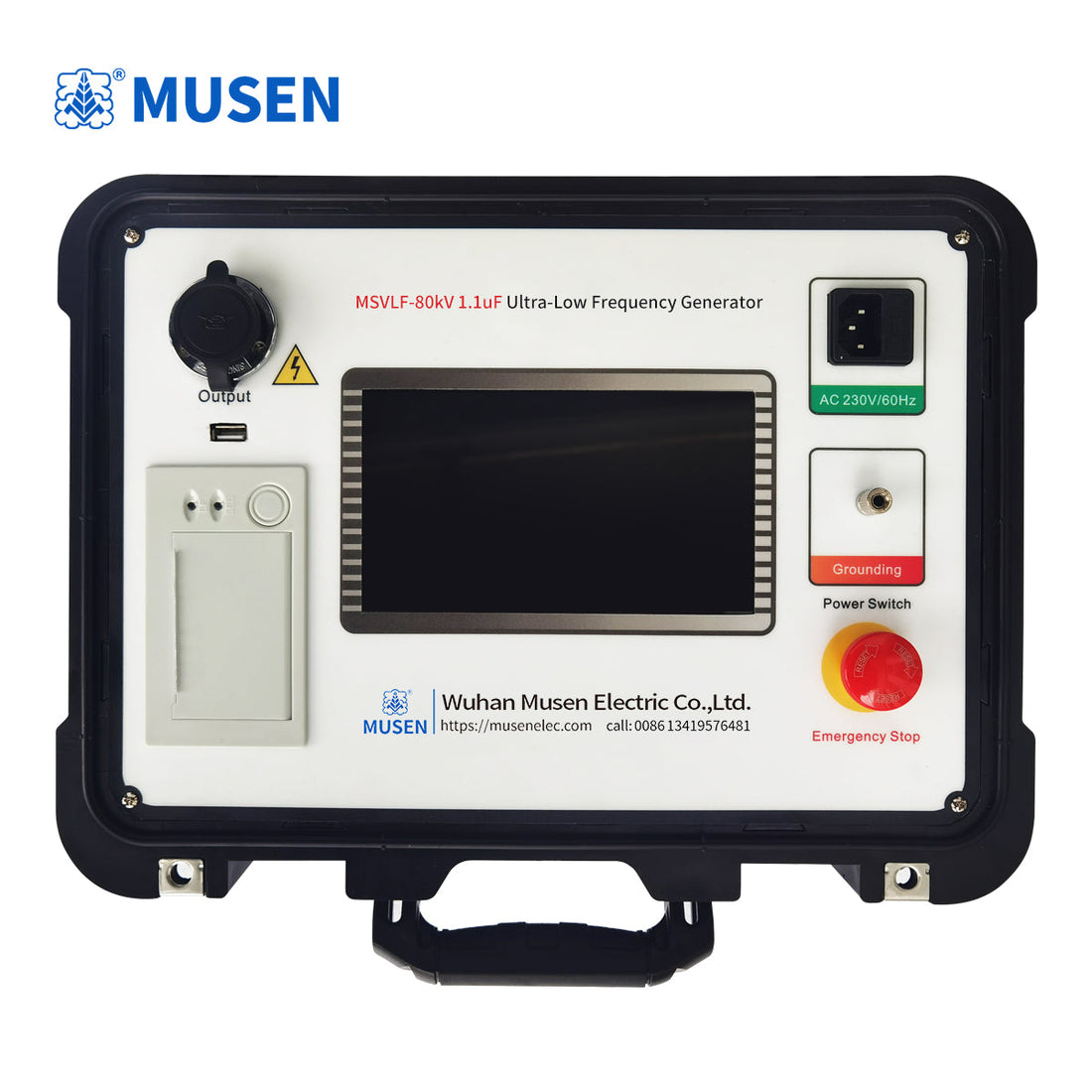

Follow the manufacturer's operating manual and the approved site procedure. The test circuit generally connects the high-voltage output to the designated conductor and the return connection to the appropriate screen or grounding point. The exact connection depends on cable construction and test objectives. The MSVLF description specifies a low-voltage control connection and optical control between the controller and high-voltage generator. This design feature does not remove the need to isolate the cable or control access to the energized test area.
How Should the Test Be Performed?
Step 1: Confirm the Test Settings
Record the cable identification, selected output frequency, target voltage, duration and applicable acceptance criteria. Never select a test voltage solely because it is within the instrument's maximum rating.
Step 2: Check the Connected Capacitance
The supplied MSVLF specifications list maximum capacitances of 1.1 µF at 0.1 Hz, 2.2 µF at 0.05 Hz and 5.5 µF at 0.02 Hz. Confirm the exact model's limits at the intended voltage before proceeding.
Step 3: Apply Voltage Under Controlled Conditions
Use the instrument's prescribed operating sequence. The supplied product information describes automatic voltage ramp-up, ramp-down, measurement and protection. Do not improvise voltage increments or bypass protection functions.
Step 4: Monitor and Document Results
Observe displayed voltage, test status and protection indications. Stop according to the approved procedure if an abnormal condition occurs. Record the settings, results and any interruption.
Step 5: Discharge and Ground the Cable
After the test, follow the approved shutdown sequence, discharge the cable using suitable equipment and verify safe conditions before applying the required grounding arrangement. A zero output display alone is not proof that stored energy has been eliminated.
Which MSVLF Performance Values Should Be Recorded?
| Parameter | Supplied specification |
|---|---|
| Output frequency | 0.1 Hz, 0.05 Hz and 0.02 Hz |
| Rated voltage options | 30 kV, 40 kV, 50 kV, 60 kV, 80 kV and 90 kV, model-dependent |
| Measurement accuracy | 1% |
| Peak voltage error | ≤3% for positive/negative peaks |
| Waveform distortion | ≤5% |
| Protection action time | ≤10 ms, as specified by the supplied product data |
| Operating temperature | -10°C to +40°C |
| Relative humidity | ≤85% RH |
These figures are supplied specifications, not results from a particular field test. A traceable report should identify the instrument, calibration status and test conditions.
How Does VLF Testing Differ from Partial-Discharge Diagnosis?
A withstand test evaluates whether insulation tolerates a specified electrical stress. Partial Discharge (PD) measurement evaluates localized discharge activity. IEC 60270:2025 covers charge-based PD measurement, while UHF detection, acoustic emission (AE) and acoustic detection can support other diagnostic or localization methods when suitable systems are available. A withstand result should not be presented as a PD measurement or a guarantee that no insulation defect exists.
Which Standards Apply?
IEEE 400.2-2024 provides guidance for field testing shielded power cable systems using VLF. IEC 60502-2:2014+AMD1:2024 specifies construction and test requirements for covered extruded-insulation cables rated from 6 kV to 30 kV. Confirm the cable category and test purpose before applying either document.
Frequently Asked Questions
Q: Can a cable be tested while connected to an energized circuit?
A: No. The circuit must be isolated and prepared under an approved high-voltage safety procedure.
Q: Does passing a VLF test guarantee long-term cable reliability?
A: No. It demonstrates performance under specified test conditions, not the absence of every possible defect or future failure.
Q: What belongs in a cable test report?
A: Include cable identification, instrument model, calibration status, frequency, applied voltage, duration, environmental conditions, observations and acceptance criteria.
Expert Review and Authoritative References
Technical Content Reviewed by: High-Voltage Diagnostic Specialists
Entity: MSVLF Very Low Frequency Cable Tester
Review scope: General test workflow and safety concepts. The final procedure must be approved against the instrument manual and site requirements.
