Engineering Technical Guide: Selecting a Variable Frequency Resonance Test System

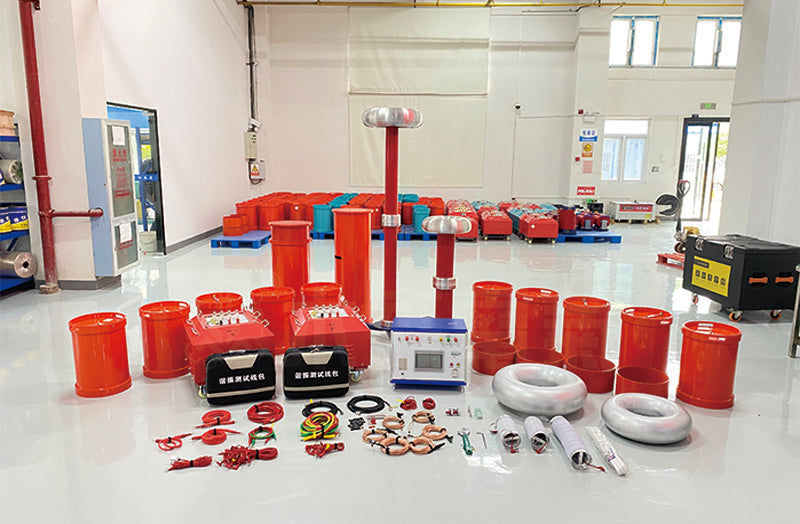

A Resonance Test System (also designated as Variable-frequency series resonant test system) generates continuous AC high voltage by tuning power frequency (typically 20 Hz to 300 Hz) to match the inductive reactance of modular reactors with the capacitive reactance of high-voltage test objects. Available at www.musenelectric.com, these specialized configurations deliver pure sinusoidal voltage required for withstand verification while reducing input power demand to 1/Q of the total output test kVA.
Why Choose Variable Frequency Resonance Over Traditional Test Transformers?
Traditional power frequency withstand transformers operate with bulky, non-modular single units. In contrast, a Series resonant test system utilizes a lightweight design where total system weight is 1/10 to 1/30 of a conventional transformer, significantly reducing transport labor and field setup time.
Technical Comparison: Resonant System vs. Standard Transformer
| Parameter | Resonance Test System | Standard Test Transformer |
|---|---|---|
| Weight & Volume Ratio | 1/10 to 1/30 of conventional size | 100% baseline weight (bulky single unit) |
| Total Harmonic Distortion (THD) | < 0.3% (pure sine wave) | 3.0% – 5.0% |
| Overcurrent Response Speed | ≤ 1 μs protection cutoff | 10 – 50 ms mechanical breaker trip |
| Input Power Requirement | 1/Q of total test capacity (kVA) | 100% total test capacity (kVA) |
Key Test Applications and International Standards
A dedicated Resonant test system or AC resonant test system serves high-capacitance assets in accordance with strict global engineering frameworks:
- 6kV–500kV XLPE Cables: AC withstand testing using a Cable resonant test system or cable AC withstand voltage test set pursuant to IEC 60840 and IEC 62067 standards.
- Power Transformers: Applied voltage withstand tests adhering to IEC 60076-3.
- GIS and SF6 Switchgear: On-site AC withstand verification following IEC 62271-203.
- Hydro and Turbo Generators: Stator winding testing in alignment with IEEE 95.
- Substation Components: Bushings, buses, and instrument transformers verified under IEC 60137.
Advanced Electrical Features and Signal Integrity
Operating a modern Series resonant test system or AC series resonant test system ensures high power quality. The circuit inherently filters high-voltage harmonics through its series resonant configuration, achieving a total harmonic distortion (THD) below 0.3%. Protective circuits instantly trip within 1 microsecond during breakdown events, preventing flashover arc destruction on critical assets.
Frequently Asked Questions
Q: What input power sources are compatible with this equipment?
A: Systems accept standard low-voltage single-phase 220V or three-phase 380V supply at 50/60 Hz, eliminating the need for large diesel generators on site.
Q: How does the system prevent secondary fault damage during insulation breakdown?
A: When dielectric breakdown occurs, the circuit detunes instantly, extinguishing the arc immediately within 1 microsecond without high fault currents.
