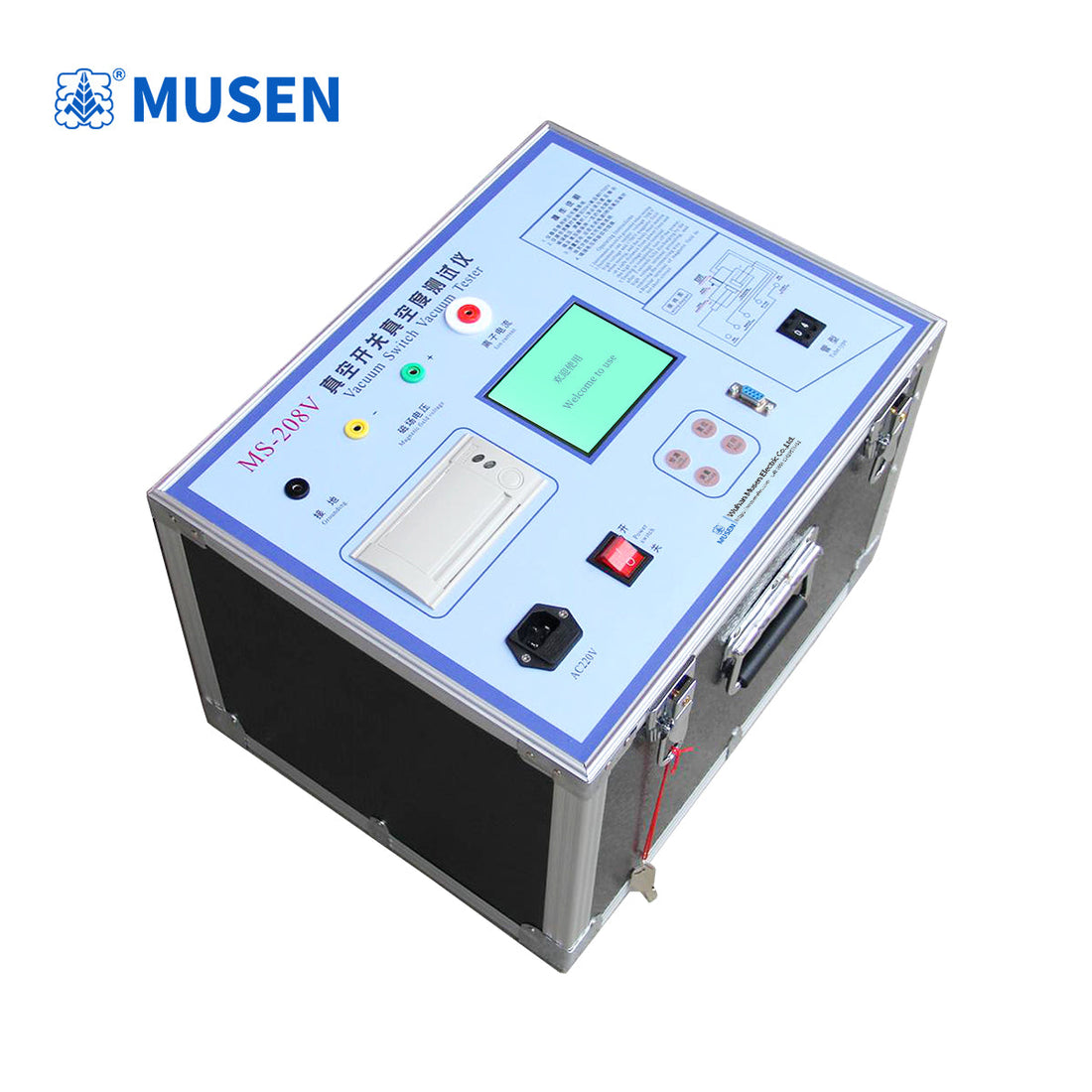

Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester 10-5-10-1 Pa
1. Quantitatively measures the vacuum degree inside the arc-extinguishing chamber of various types of vacuum switches.

2. No need to disassemble the vacuum switch during on-site measurement.

3. Accurate and reliable test results.

4. Simpler and more convenient operation.

5. Can save, print, and view test data.

6. Widely applicable to departments using vacuum switches such as power, steel, petrochemical, textile, coal, and railway industries.

1. Quantitatively measures the vacuum degree inside the arc-extinguishing chamber of various types of vacuum switches;

2. No need to disassemble the vacuum switch during on-site measurement;

3. Accurate and reliable test results;

4. LCD Chinese character display, making operation simpler and more convenient;

5. Can save, print, and view test data;

6. Equipped with an RS232 communication interface, it can be connected to a computer to achieve multiple functions such as vacuum degree-ion current curve download and life estimation;

7. Lightweight and portable; Test object: Various types of vacuum switch tubes

1. Test method 1. Vacuum Tube Measurement without Disassembly Using a New Type of Excitation Coil

2. Scope of Application: This instrument is multi-purpose and can measure various types of vacuum switches.

3. Measurement Range: 10⁻⁵-10⁻¹ Pa

4. Measurement Accuracy:

10⁻⁵-10⁻⁴ Pa 10%

10⁻⁴-10⁻³ Pa 10%

10⁻³-10⁻² Pa 10%

10⁻²-10⁻¹ Pa 10%

5. Magnetic Field Voltage: 1700V

6. Pulse Electric Field High Voltage: 30kV

7. Switch Tube Opening Distance During Vacuum Testing: Normal operating opening distance

8. Operating Environment: -20℃-40℃

9. Main Unit Weight: 24kg

10. Dimensions: 410×320×370mm

11. Sampler Magnetic control coil
