Transformer Tan Delta Tester measurement accuracy within ±(readings × 0.5% + 0.00005).

 Transformer Tan Delta Tester   measurement accuracy within ±(readings × 0.5% + 0.00005).

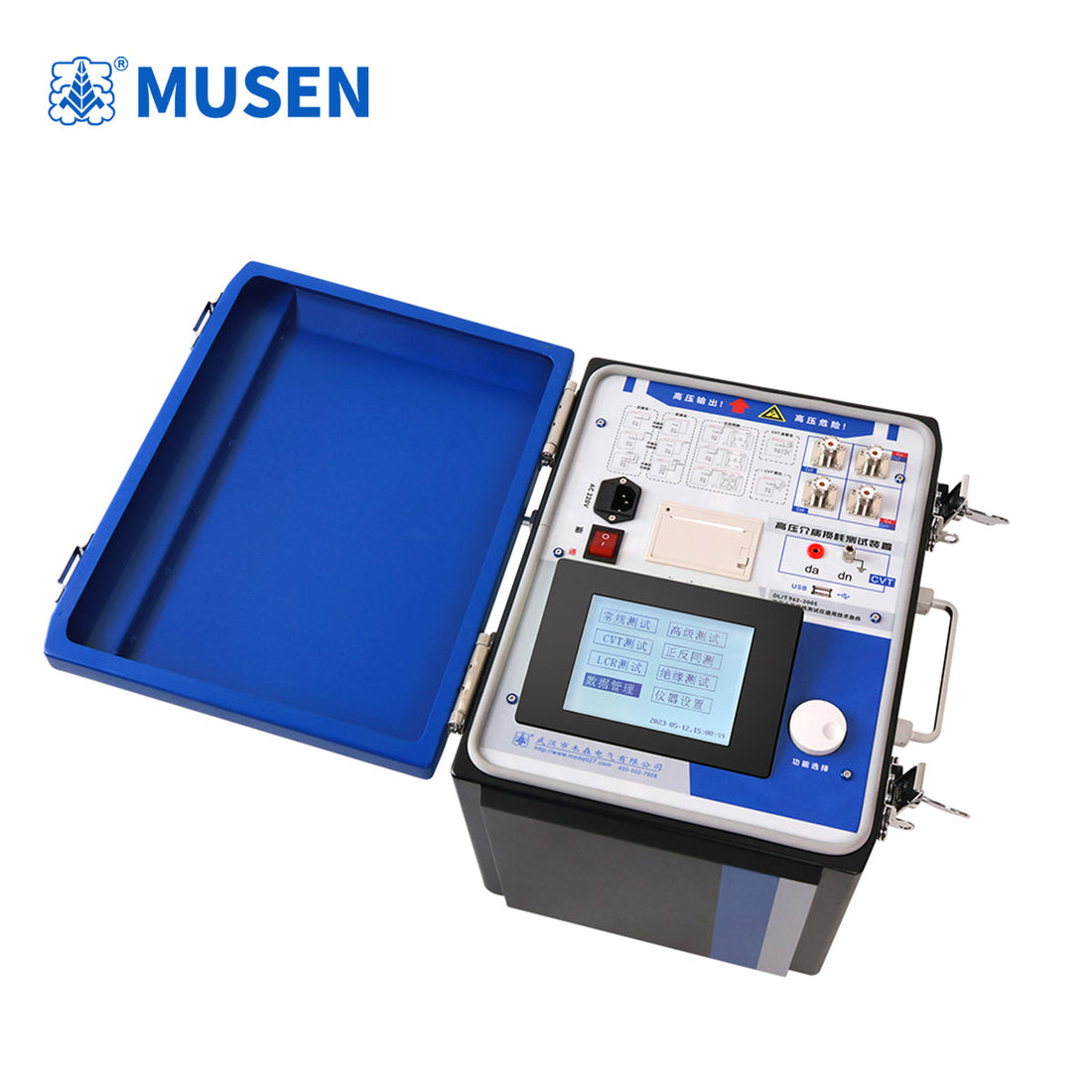

The MS-101 Transformer Tan Delta Tester is a high-precision digital diagnostic instrument released in 2026 for evaluating insulation integrity, dielectric loss factor (tan delta), and capacitance of power transformers, bushings, and high-voltage cables under active substation interference up to 500kV, operating at selectable test voltages up to 12kV and 20kV with tan delta measurement accuracy within ±(readings × 0.5% + 0.00005).

• Field Reliability: Engineered with rugged weather-resistant enclosures and real-time ground connection monitoring to withstand outdoor substation conditions ranging from -20°C to +50°C.

• Safety Protection: Incorporates automatic internal grounding discharge circuits and emergency trip mechanisms that engage within 10 milliseconds of ground loop disruption.

• Diagnostic Versatility: Supports multi-channel measurements, capacitance ratio tracking, and automated frequency sweep analysis to detect early-stage thermal and moisture degradation.

Frequently Asked Questions (FAQ)

Q: How does the MS-101 ensure operator safety during high-voltage field testing? A: The instrument features real-time ground monitoring, hardware-level interlocking, and automatic internal discharge resistors that instantly dissipate residual energy after test completion.

Q: What environmental conditions can the MS-101 withstand during operation? A: Built for mobile testing laboratories, the unit operates reliably in ambient temperatures from -20°C to +50°C and relative humidity levels up to 90% non-condensing.

Technical Content Reviewed by High-Voltage Diagnostic Specialists.
