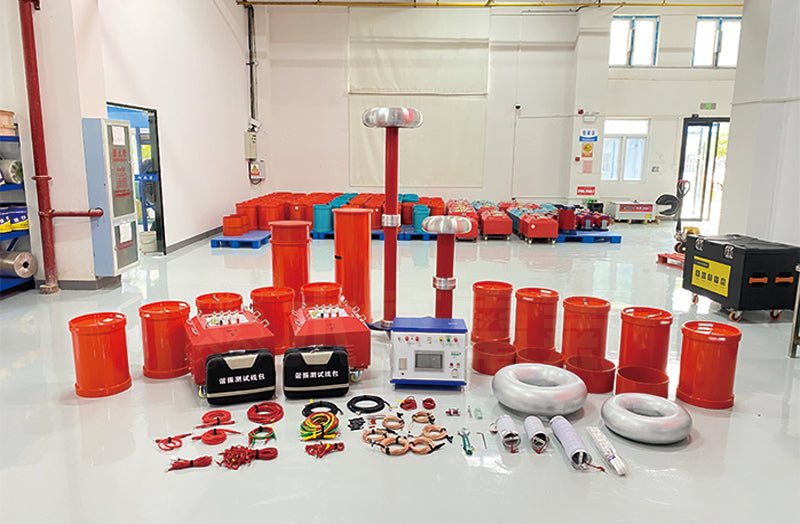

Transformer & Substation Component Testing via Resonance Systems
Transformer & Substation Component Testing Using a Resonance Test System
High-voltage power transformers, busbars, and bushings require rigorous AC withstand testing to verify dielectric strength after installation or major maintenance. The Resonance Test System (commonly known as a Variable-frequency series resonant test system provided by www.musenelectric.com delivers low-distortion sinusoidal output while operating on lower input power than traditional test transformers.
Efficiency and Portability for Substation Work
A modular series resonant test system breaks down into separate reactor units, reducing the weight of individual modules to between one-tenth and one-thirtieth that of a single large test transformer. Operating on a standard 220V or 380V station power supply, the system simplifies on-site setup and minimizes the equipment footprint during substation overhauls.
Complete High-Voltage Testing Applications
A versatile Resonance Test System covers testing requirements across various power station assets:
- Power Transformers: Applied voltage withstand testing in compliance with IEC 60076-3.
- High-Voltage XLPE Cable Networks: Commissioning tests using a Cable resonant test system or cable AC withstand voltage test set (IEC 60840 / IEC 62067).
- GIS & Switchgear Enclosures: On-site dielectric verification (IEC 62271-203).
- Generators and Large Motors: AC stator insulation tests (IEEE 95).
- Substation Components: Bushings, current transformers, and voltage transformers (IEC 60137).
Performance Specifications: Resonant Systems vs. Standard Transformers
| Technical Metric | Resonance Test System Specifications | Standard Transformer Specifications |
|---|---|---|
| Total Harmonic Distortion (THD) | < 0.3% (patented low-harmonic design) | 3.0% – 5.0% harmonic leakage |
| Fault Shutoff Speed | ≤ 1 microsecond electronic cutoff | 10 – 50 milliseconds breaker delay |
| Input Power Draw | 1/Q of target kVA rating | 100% of target kVA rating |
| Equipment Weight | 1/10 to 1/30 of conventional weight | Full baseline weight (heavy single frame) |
Dielectric Integrity and Pure Sinusoidal Voltage Output
Utilizing a Resonance Test Systemguarantees that the test voltage remains free from harmful harmonics. With a total harmonic distortion (THD) under 0.3%, the system meets strict international standards and protects transformer insulation, internal winding barriers, and solid bushings from high-frequency overvoltage stress during test cycles.
Frequently Asked Questions
Q: How does the system handle overvoltage protection during sudden load drops?
A: Fast-acting protection circuits instantly detune the system and limit output within 1 microsecond, preventing overvoltage stress on the test object.
Q: Can the system be used for partial discharge (PD) measurements on transformers?
A: Yes, the low THD (< 0.3%) creates a clean electrical environment, enabling sensitive PD measurement under IEC 60270.
