Transformer Short-Circuit Impedance Tester / Transformer Short-Circuit Impedance Test - Test Precautions and Features?

The precautions and core features of transformer short-circuit impedance testing are as follows:

I. Test Precautions

1. Safety First: Before testing, the transformer must be completely de-energized and isolated, and all external connections to the high and low voltage winding terminals must be disconnected. Properly connect the grounding wire, set up a safety barrier, and the operation must be performed by two people.

2. Secure Wiring and Voltage Monitoring: Test leads (especially high-current leads) must be extremely securely connected with low contact resistance to prevent overheating. Voltage must be measured directly across the high-voltage winding terminals to eliminate errors caused by lead resistance.

3. Stable Power Supply and Rapid Testing: Use a power supply with sufficient capacity and stable voltage. After powering on, data should be read quickly and accurately, and the voltage should be immediately reduced and the power cut off to prevent overheating caused by prolonged high current flowing through the windings.

4. Recording Conditions and Result Correction: Record the ambient temperature and the actual winding temperature during the test in detail. Test results (short-circuit impedance, load loss) must be corrected to values at a reference temperature (e.g., 75℃ or 115℃) for comparison with nameplate values or historical data.

II. Core Features

1. The Gold Standard for Diagnosing Winding Deformation: Changes in short-circuit impedance are the most direct and effective criterion for determining whether radial deformation, displacement, or other mechanical damage has occurred in the windings. It boasts high sensitivity and is highly reliable.

2. No Special Power Supply Required, Strong Field Applicability: The power supply capacity required for the test is far lower than the short-circuit current; conventional power supplies are sufficient, eliminating the need for large-capacity generator sets and facilitating on-site implementation.

3. Intuitive Results, Clear Judgment: Comparing the measured impedance value with the nameplate value or historical data, if the change exceeds the standard (e.g., ±2%), it clearly indicates that the windings may have deformed, providing crucial information for decision-making.

4. Efficient Condition Assessment: This test is a core means of verifying a transformer's ability to withstand short-circuit impacts and assessing its mechanical stability. It is of great significance for post-fault diagnosis and preventative testing.

Summary: Short-circuit impedance testing is a crucial method for diagnosing the mechanical condition of transformer windings. Its value lies in effectively determining winding deformation through precise impedance measurement. Safe and reliable wiring and accurate temperature calibration are fundamental to ensuring accurate and comparable test results.

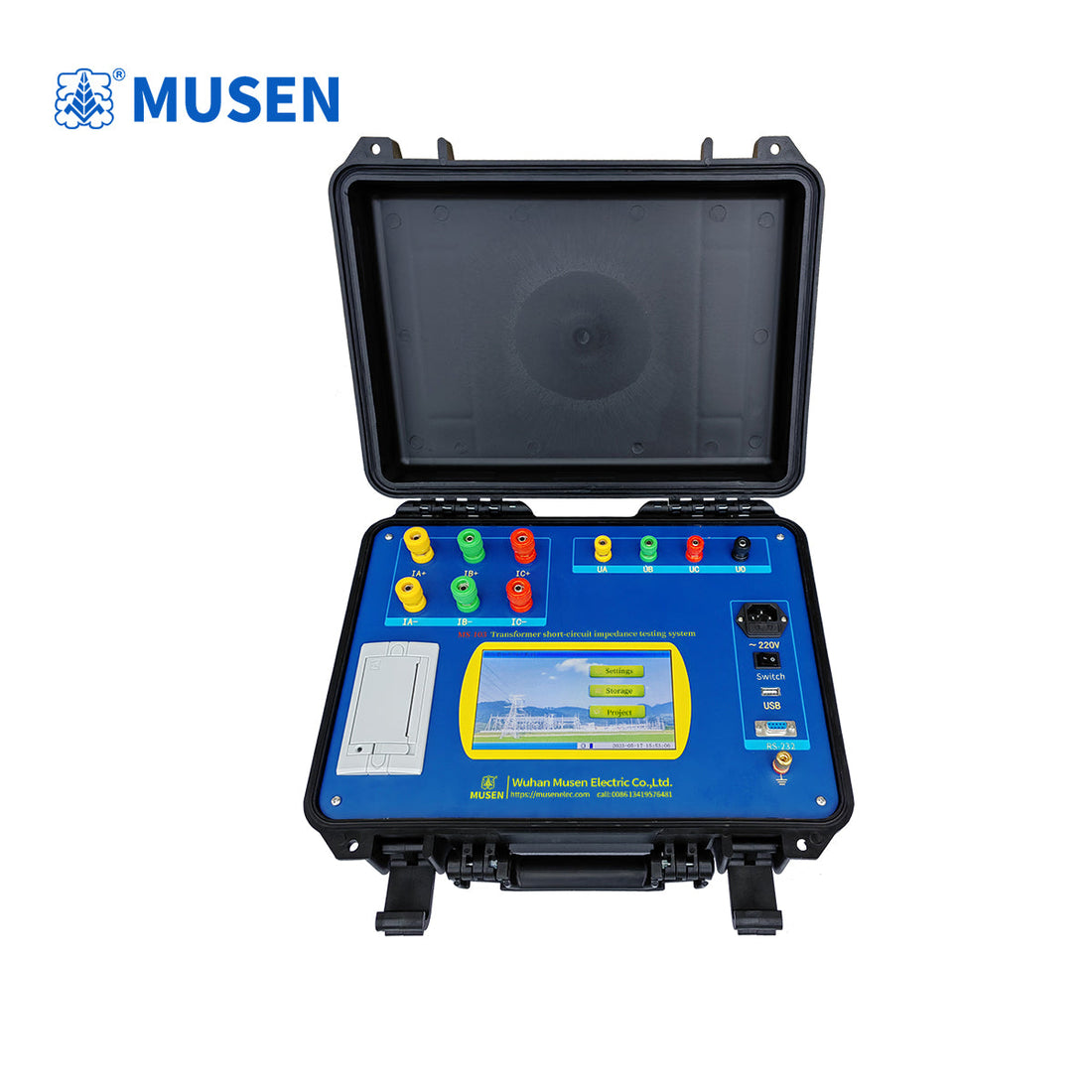

The MS-103 transformer short-circuit impedance tester utilizes advanced synchronous AC sampling and digital signal processing technology, providing accurate and reliable measurement data. It is an effective tool for transformer testing and analysis and can also be used for impedance measurement of reactors, transmission lines, and other equipment.

Main Functions and Features:
1. Measures transformer short-circuit impedance, short-circuit reactance, short-circuit resistance, and three-phase impedance voltage.

2. Displays parameters such as voltage, current, power, and frequency for each test.
