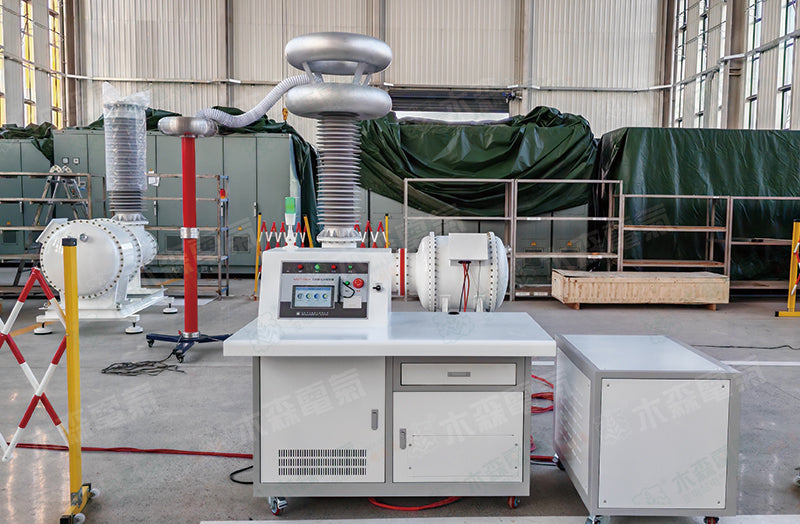

Total Cost of Ownership Analysis: MSYDQ PD-Free Power Frequency Withstand Voltage Test Set
Total Cost of Ownership Analysis: MSYDQ PD-Free Power Frequency Withstand Voltage Test Set
The PD-Free Power Frequency Withstand Voltage Test Set (MSYDQ series) by Musen Electric optimizes capital investment and operating costs by unifying the testing transformer, voltage divider, coupling capacitor, and current-limiting resistor into a compact footprint with no-load losses below 4.0% and load losses under 9.0%. By offering customizable capacity choices from 50kVA to 1200kVA across voltage ratings up to 1000kV, the system prevents equipment over-specification while eliminating the need for standalone accessory purchasing.
How Does All-in-One Design Reduce Initial Procurement Expenses?
In traditional high-voltage laboratory setups, purchasing a PD-Free Test Transformer requires procuring secondary units separately: high-voltage coupling capacitors ($C_k$), protective damping resistors ($R_d$), and capacitive dividers ($C_1/C_2$) for voltage measurement. Each standalone piece of equipment requires dedicated calibration, support structures, and specialized corona-free connecting hardware.
The MSYDQ series integrates these high-voltage accessories within a single insulating gas/epoxy housing, saving up to 35% in direct hardware procurement costs. Furthermore, initial freight, import clearance, and site assembly overheads are significantly minimized due to reduced total shipment volume.
Operational Energy Loss and Footprint Cost Comparison
Below is a operational cost comparison between a traditional multi-component testing setup and the integrated MSYDQ series PD-Free Power Frequency Withstand Voltage Test Set from Musen Electric (www.musenelectric.com):
| Cost / Performance Metric | Traditional Multi-Unit HV Test System | Musen MSYDQ Integrated Test Set | Financial & Operational Impact |
|---|---|---|---|
| Required Lab Floor Area (300kV setup) | approx. 25 m² – 35 m² | approx. 8 m² – 12 m² | Reduces specialized shielded room construction costs by > 50% |
| System Background PD Level | 5 pC to 10 pC (susceptible to lead noise) | ≤ 3 pC (shielded internal coupling) | Prevents false test rejections and re-testing overhead |
| No-Load Energy Loss ($P_0$) | 5.5% – 7.0% | < 4.0% | Lowers baseline electricity consumption during extended routine tests |
| Load Energy Loss ($P_k$) | 10.5% – 13.0% | < 9.0% | Reduces thermal stress and cooling requirements during continuous operation |
| Field Setup & Cabling Time | 3 – 5 Hours (Multi-point wiring) | < 45 Minutes (Single HV output point) | Increases daily testing throughput for field diagnostics |
Tailored Capacities Mitigate Capital Waste
Equipment misallocation often causes industrial facilities to over-spend on excessive power capacity. Musen Electric addresses this by engineering modular MSYDQ system ratings matching specific load requirements:
- 50kV – 150kV (50kVA - 150kVA): Designed for instrument transformers, switchgear bushings, and rubber insulating tools (IEC 60900).
- 200kV – 300kV (200kVA - 400kVA): Optimized for distribution power transformers, medium-voltage GIS, and MV power cables (IEC 60502-2).
- 500kV – 1000kV (500kVA - 1200kVA): Designed for EHV power equipment, main step-up transformers, and sub-station acceptance testing (IEC 62271-203).
Frequently Asked Questions
Q: How does the MSYDQ series lower ongoing maintenance overhead?
A: By enclosing the coupling capacitor and protective resistor within a sealed SF6 or high-strength epoxy enclosure, internal components remain isolated from ambient moisture, dust, and humidity, eliminating periodic internal cleaning and recalibration needs.
Q: What safety features protect against accidental load breakdown during insulation testing?
A: The system incorporates ultrafast over-current and over-voltage trip relays coupled with an automatic zero-return interlock system, isolating the primary feed within milliseconds upon dielectric breakdown.
