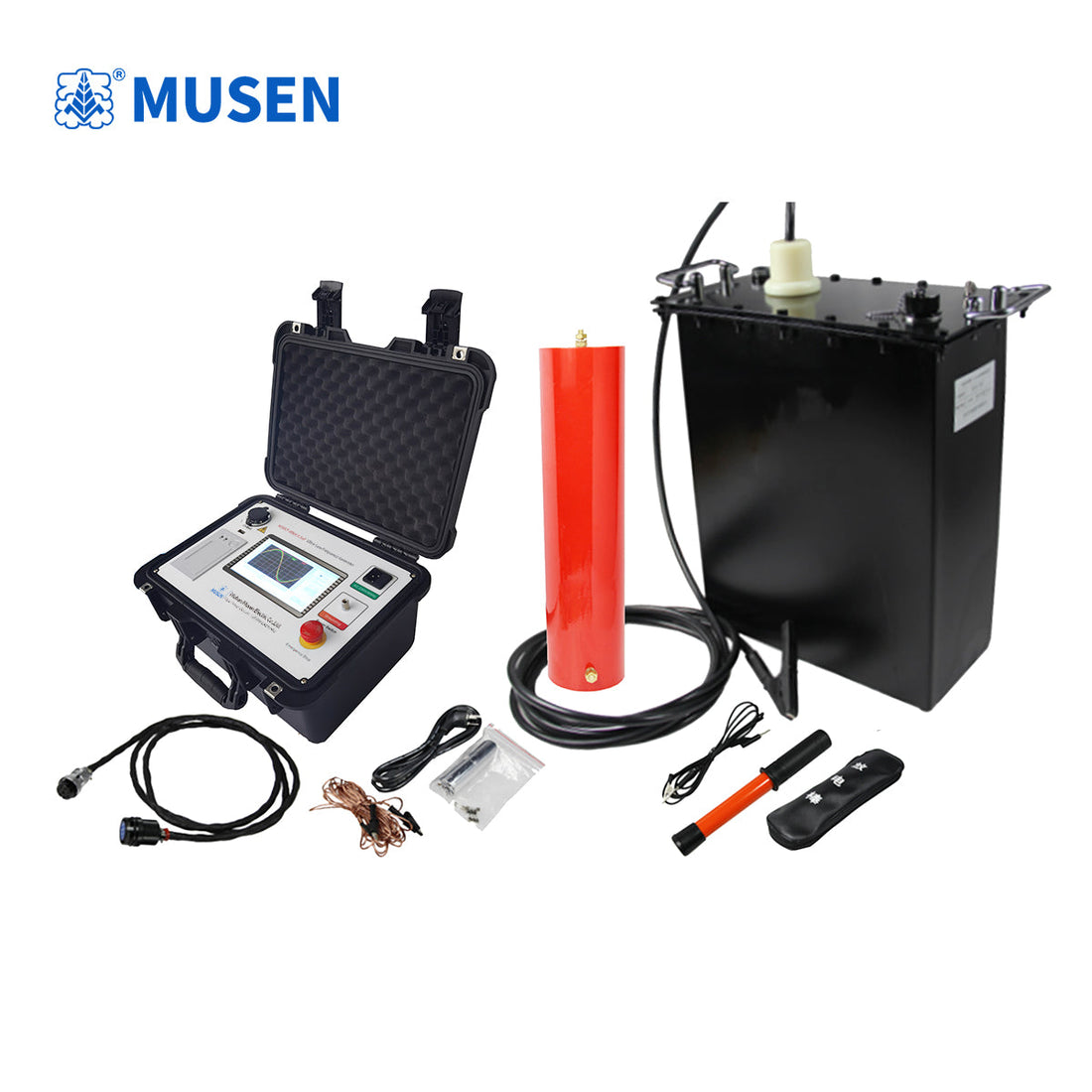

Examine detailed output parameters, load capacitance limits, and measurement accuracy of the MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz VLF Hipot Tester.
Direct Answer & Introduction
Understanding capacitive load limits is vital when operating an Ultra-Low Frequency Generator for electrical asset commissioning. The MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz vlf hipot tester provides flexible frequency selection (0.1Hz, 0.05Hz, 0.02Hz) to accommodate varying cable lengths and capacitances while ensuring strict adherence to IEC 60060 and IEEE 400.2 standards.
Managing Capacitive Loads in Cable Testing
Power cable networks present significant capacitive loads that challenge conventional test sets. Technicians often inquire: What is the maximum cable length or capacitance a Very Low Frequency Cable Tester can drive without losing waveform integrity?
Frequency Scaling and Waveform Distortion Control
By lowering the test frequency from 0.1Hz down to 0.02Hz, the MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz expands its load capacity from 1.1µF up to an impressive 5.5µF. Throughout this process, the voltage waveform distortion remains strictly controlled at ≤ 5%.
Detailed Electrical Specifications Table
| Specification Item | Rated Parameter Value |
| Output Voltage Range | Up to 30kV / 40kV / 50kV / 60kV / 80kV / 90kV (Model dependent) |
| Selectable Frequencies | 0.1Hz, 0.05Hz, 0.02Hz |
| Load Capability by Frequency | 0.1Hz: 1.1µF | 0.05Hz: 2.2µF | 0.02Hz: 5.5µF |
| Measurement Precision | ±1% of full scale |
| Voltage Positive/Negative Peak Error | ≤ ±3% |
| Operating Environment | -10°C to +40°C, ≤ 85% RH (Indoor/Outdoor) |
Automation and Data Logging Architecture
The unit features a microcomputer core that coordinates digital frequency conversion, full automation of boosting/lowering sequences, and real-time data archiving. Test results are displayed on an intuitive LCD touch screen and can be retrieved or printed instantly.
Frequently Asked Questions (FAQ)
-
Q: How does frequency scaling affect cable testing time?
-
A: Lowering the frequency to 0.02Hz allows testing of larger cables (up to 5.5µF), though test cycle durations adjust accordingly to maintain standard cycle counts per IEEE guidelines.
-
-
Q: What is the specified voltage measurement accuracy of the instrument?
-
A: The instrument provides a measurement precision of 1% with a peak error of ≤ 3%, ensuring calibration traceability for utility compliance audits.
-
