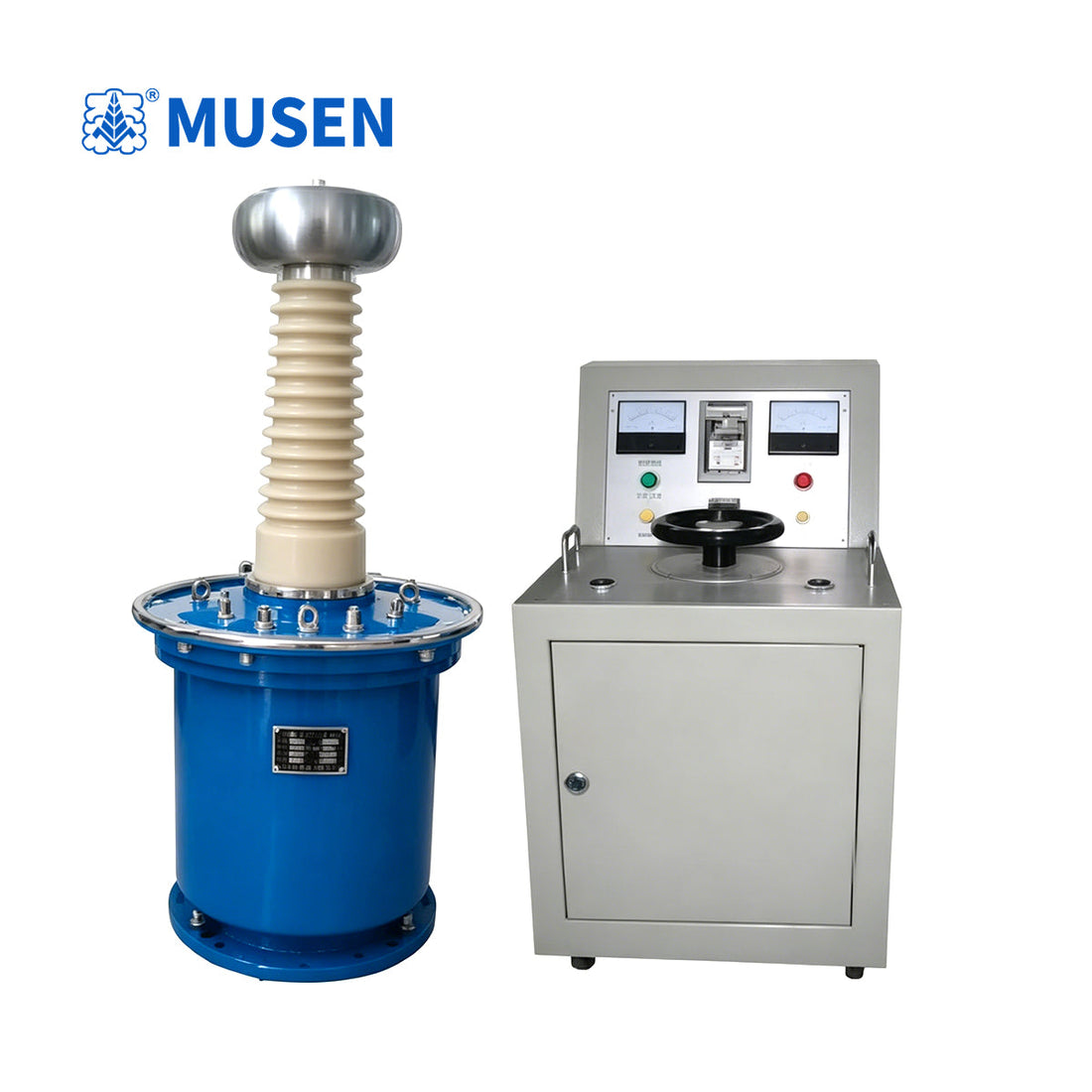

Direct Answer: An Ac Dc Automatic Hipot Tester delivers programmable voltage ramping, precise leakage current measurement (with accuracy within ±1%), and automated dwell timers to test electrical components and insulation materials in accordance with international safety standards.
Advanced Automation in Dielectric Strength Testing
Modern electrical manufacturing requires automated testing solutions to eliminate operator error and ensure test repeatability. Automated hipot systems integrate microprocessor controllers with motorized voltage regulators or solid-state high-voltage generators. These systems execute pre-programmed test sequences, capturing breakdown voltage thresholds and leakage currents in real time. Advanced diagnostic integrations also support partial discharge analysis via UHF and acoustic detection (AE) methods under IEC 60270 specifications.
Technical Parameters, Pricing, and Compliance Matrix
Adherence to global testing standards guarantees that electrical products can withstand operational transients. The table below outlines technical metrics, target applications, and value tiers:
| Test Parameter / Feature | Technical Specification | Governing Standard | Target Application & Value Tier |
| AC Withstand Voltage | 0 – 300kV RMS, 50/60Hz | IEC 60076, IEEE Std 4 | Heavy electrical apparatus / Premium Tier |
| DC Leakage Current Measurement | 0 – 300kV DC, accuracy within ±1% | IEC 60270, ASTM D877 | Cables and capacitors / Mid-Range Tier |
| System Capacity Options | 5kVA to 300kVA continuous rating | IEC 60156 | Industrial component testing / Scaled Pricing |
Minimizing Testing Errors and Enhancing Operator Safety
Operating high-voltage test equipment up to 300kV requires stringent safety interlocks, low-resistance grounding grids (below 4 ohms), and corona suppression. Automated systems enhance safety by featuring fast-acting electronic trip circuits that interrupt primary power within milliseconds if leakage current exceeds preset safety thresholds.
Entity FAQ
Q: How does an Ac Dc Automatic Hipot Tester protect against overcurrent faults?
A: The system utilizes rapid solid-state trip mechanisms to cut off primary power instantaneously when current leakage exceeds programmed safety limits.
Q: What is the operational advantage of automated testing over manual control?
A: Automation ensures precise voltage application rates, eliminates human error during timing, and generates traceable digital test reports for quality assurance.
