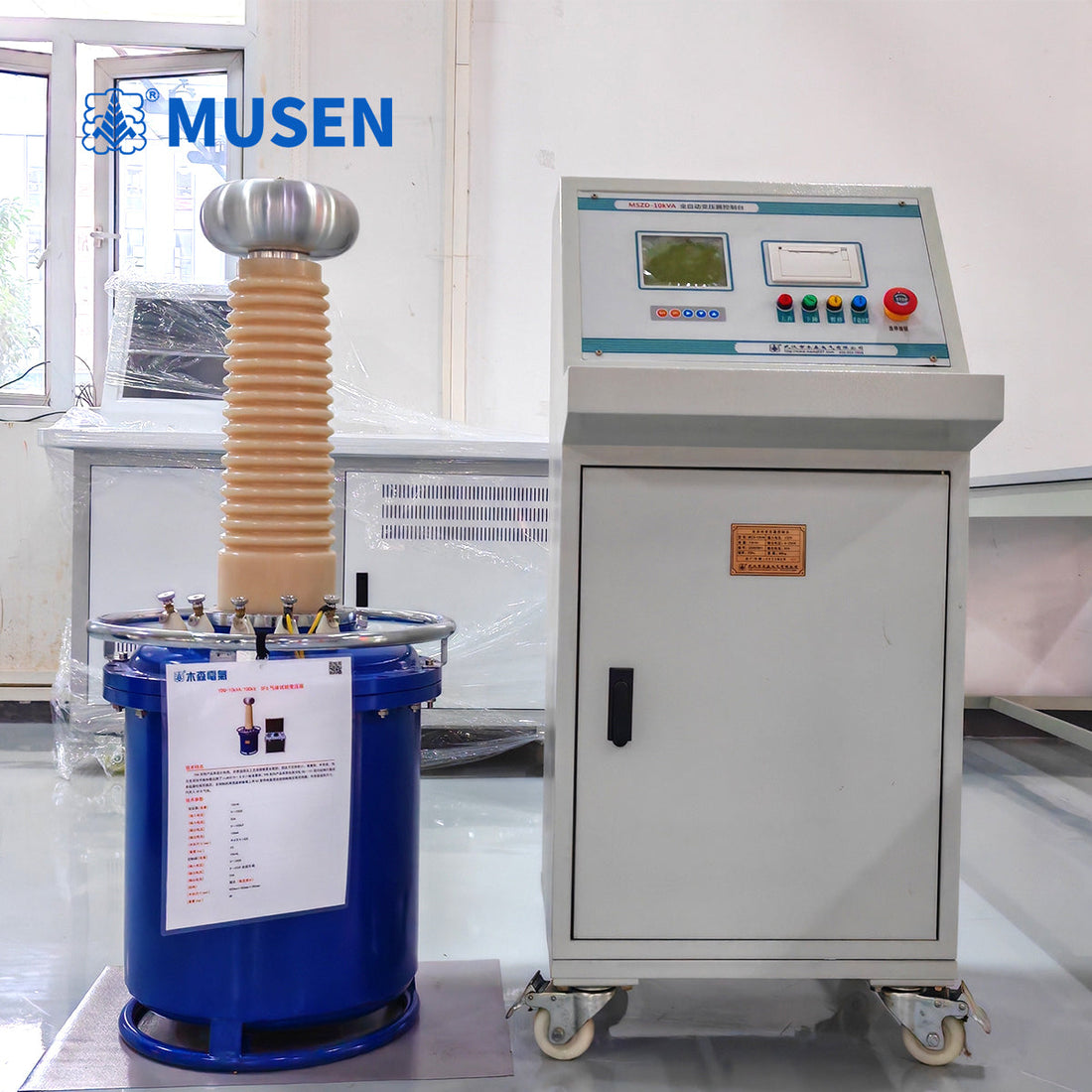

A Gas-insulated test transformer utilizes sulfur hexafluoride (SF6) gas as its primary insulating and arc-extinguishing medium to deliver stable high-voltage power for dielectric withstand testing. Engineered by www.musenelectric.com, these transformers replace traditional mineral oil with gas dielectric technology, reducing total equipment weight by 40% to 60% while maintaining partial discharge levels below 5 pC per IEC 60270 specifications.
How SF6 Gas Insulation Elevates High-Voltage Testing
Dielectric strength in high-voltage testing equipment dictates physical weight and internal clearance. SF6 gas exhibits a dielectric breakdown strength roughly 2.5 times higher than air at atmospheric pressure and up to 5 times greater under 0.3 to 0.5 MPa operating pressure. This high dielectric density eliminates internal oil clearance margins, allowing single-operator transport for field commissioning of switchgear, cables, and insulators.
Model Specifications and Technical Comparison
Selecting the correct high-voltage source depends on the system operating voltage and capacitive load requirements. The table below details technical specifications for three standard units designed per IEC 60060-1 standards:
|
Parameter / Model |
YDQ-10kVA/100kV |
YDQ-20kVA/100kV |
YDQ-30kVA/250kV |
|---|---|---|---|
|
Primary Application Target |
35kV & below substations |
110kV & below electrical grid equipment |
110kV safety tools & high-altitude barriers |
|
Rated Capacity |
10 kVA |
20 kVA |
30 kVA |
|
Rated Output Voltage |
100 kV AC |
100 kV AC |
250 kV AC |
|
Gas Medium / Operating Pressure |
SF6 (0.35 MPa) |
SF6 (0.35 MPa) |
SF6 (0.40 MPa) |
|
Partial Discharge Level |
≤ 5 pC at rated voltage |
≤ 5 pC at rated voltage |
≤ 3 pC at rated voltage |
|
Weight Reduction vs. Oil-Type |
52% lighter |
48% lighter |
42% lighter |
Application Scope: Safety Tools and Operating Rods
The YDQ 30kVA/250kV provides dedicated high-voltage excitation for testing 110kV electroscopes, operating rods, and insulating poles. Performing power-frequency withstand tests under IEC 61235 and ASTM F711 requires a stable sinusoidal high-voltage source. The low internal capacitance of SF6 insulation minimizes voltage waveform distortion, ensuring reliable flashover detection without damaging sensitive test samples.
Frequently Asked Questions
Q: What international standards govern partial discharge measurement during testing?
A: Partial discharge tests conducted with a Gas-insulated test transformer adhere to IEC 60270 and IEEE Std 4-2013, using ultra-high frequency (UHF) and acoustic sensors (AE) to verify insulation integrity.
Q: What ambient temperature range is permissible for field operations?
A: Gas density switches maintain internal vessel pressure across ambient ranges from -20°C to +55°C without dielectric degradation.
