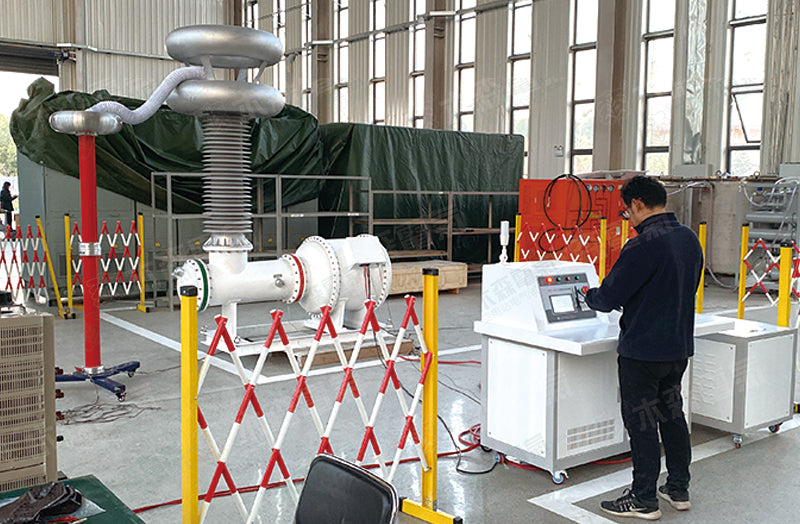

Target Industry Solutions: Quality Assurance and Diagnostic Testing with MSYDQ Systems PD-Free Test Transformer
Target Industry Solutions: Quality Assurance and Diagnostic Testing with MSYDQ Systems PD-Free Test Transformer
The PD-Free Power Frequency Withstand Voltage Test Set (MSYDQ series) by Musen Electric serves power equipment manufacturers, electric utilities, national metrology institutes, and field maintenance service providers requiring precise insulation diagnostics. Featuring integrated capacitive dividers, damping resistors, and coupling capacitors, the MSYDQ system delivers high-precision withstand voltage testing and background partial discharge levels below 3pC across capacity ratings from 50kVA to 1200kVA.
Which Key Industrial Sectors Benefit Most from MSYDQ Test Transformers?
Dielectric breakdown in high-voltage assets often causes catastrophic equipment failure, unpredicted grid outages, and severe financial losses. Utilizing a high-precision PD-Free Test Transformer during factory manufacturing and field commissioning ensures that micro-voids, treeing degradation, and surface tracking are identified before assets are energized.
Target customer groups rely on the MSYDQ series from Musen Electric (www.musenelectric.com) across specific operational workflows:
1. Electrical Equipment Manufacturers (OEMs)
Producers of distribution transformers, instrument transformers (PTs/CTs), gas-insulated switchgear (GIS), high-voltage bushings, and power cables require rigorous factory acceptance testing (FAT) under IEC 60076, IEC 62271-200, and IEC 60840 standards. The MSYDQ series' low loss characteristics (<4% no-load loss) and low background noise (≤3pC) provide reliable pass/fail metrics during routine manufacturing QA.
2. Third-Party Calibration and Electric Power Research Institutes
High-voltage calibration laboratories and research institutions require traceable, stable reference voltage sources. The integrated voltage measurement branch of the MSYDQ series provides high ratio accuracy (＜1.0%), eliminating the need for external reference dividers during routine certification.
3. On-Site Substation Maintenance and Asset Management Teams
Commissioning teams performing post-installation stress testing on newly laid cable circuits or newly assembled EHV substations require compact systems that fit on flatbed utility vehicles while maintaining laboratory-grade sensitivity.
Standards-Driven Testing Parameters across Asset Classes
The following table maps asset testing requirements to the corresponding MSYDQ series system configuration:
| Tested HV Asset Class | Governing Test Standard | Required Test Voltage Level | Recommended MSYDQ Configuration |
|---|---|---|---|
| 11kV / 33kV Power Cables | IEC 60502-2 / IEEE 400.2 | 2.5 $U_0$ (Up to 50kV – 70kV) | MSYDQ-50 / MSYDQ-100 (50kV–100kV) |
| 110kV Gas-Insulated Switchgear (GIS) | IEC 62271-203 | 160kV – 230kV Power Frequency | MSYDQ-300 (300kV / 300kVA) |
| 220kV Main Step-Up Transformers | IEC 60076-3 | 360kV – 460kV Induced / Separate Source | MSYDQ-600 (600kV / 600kVA) |
| 500kV Transmission System Bushings | IEC 60137 | 680kV – 750kV Dry/Wet Withstand | MSYDQ-1000 (1000kV / 1200kVA) |
Frequently Asked Questions
Q: How does the system handle capacitive loads during high-voltage cable testing?
A: When testing high-capacitance loads like long power cables, the MSYDQ series can be connected with an external variable-frequency power source or compensating reactor to form a resonant circuit, significantly reducing the required input source kVA.
Q: What protection measures prevent high-voltage surges from damaging the low-voltage control unit?
A: The control unit features multi-stage surge arresters, fast isolation transformers, and fiber-optic signal isolation channels, ensuring complete galvanic separation between the high-voltage testing bay and operator controls.
