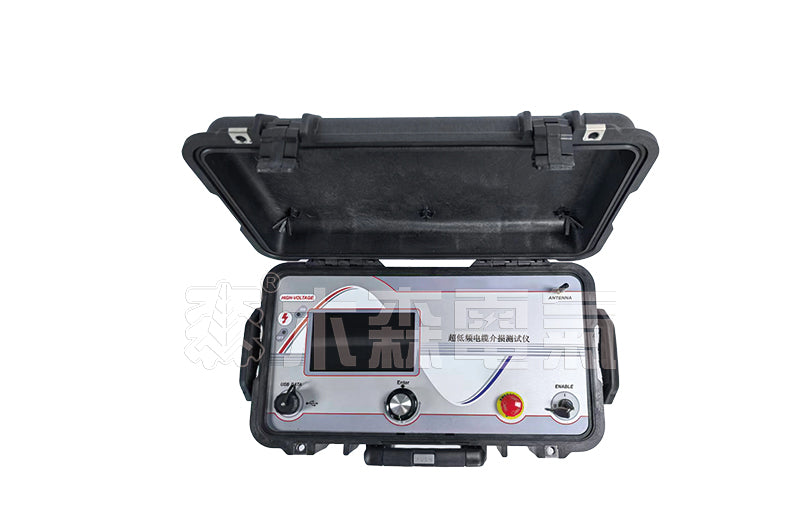

Target Customer Applications and Field Diagnostic Protocols for the MSVIF-101G VLF Tan Delta Tester
Target Customer Applications and Field Diagnostic Protocols for the MSVIF-101G VLF Tan Delta Tester
The MSVIF-101G VLF Tan Delta Tester provides electrical power utilities, renewable energy collector networks, and heavy industrial facilities with a standardized field testing protocol for medium-voltage cable commissioning and condition assessment. Designed to execute automated ultra-low frequency (0.1 Hz) withstand voltage and dissipation factor diagnostics on cross-linked polyethylene (XLPE), ethylene propylene rubber (EPR), and paper-insulated lead-covered (PILC) cables up to 31.8 kV peak, this system optimizes asset management under IEEE 400.2 guidelines. Detailed application procedures are accessible at www.musenelectric.com.
Which Key Customer Segments Rely on the MSVIF-101G System?
Medium-voltage distribution systems form the backbone of critical electrical infrastructure worldwide. Electrical testing service contractors, wind and solar farm operation and maintenance (O&M) teams, municipal distribution system operators (DSOs), and petrochemical industrial plants require precise, non-destructive tools to prevent unscheduled outages. The MSVIF-101G serves as a multi-functional VLF Dielectric Loss Test Set and specialized VLF Dissipation Factor Tester, consolidating multiple test routines into one portable field instrument.
As a combined VLF withstand voltage and Tan Delta tester, this unit streamlines maintenance protocols for field engineers. Procurement departments worldwide specify this device as a reliable and durable instrument for verifying cable integrity via Tan Delta testing before re-energization. Integrating this versatile VLF dissipation factor and withstand voltage tester into routine asset testing ensures continuous operational reliability across complex power networks.
Standard Utility Field Testing Protocol (IEEE 400.2 Workflow)
The recommended execution sequence for field diagnostics using the MSVIF-101G system is detailed in the structured table below:
| Protocol Step | Voltage Level & Waveform | Measurement Objective & Standard Limits |
|---|---|---|
| 1. Outer Sheath Testing | 10 kV DC (per IEC 60229) | Verifies outer HDPE/PVC jacket integrity; pinpoints sheath faults via step-voltage mode. |
| 2. Baseline Tan Delta ($\tan \delta$) | 0.5 U0 (0.1 Hz Sinusoidal) | Establishes baseline dielectric loss angle ($I_R / I_C$) prior to high-voltage stress. |
| 3. Step Voltage Tan Delta Analysis | 1.0 U_0 to 1.5 U_0 (0.1 Hz) | Calculates Differential Tan Delta ($\Delta \tan \delta$) to detect water trees and tracking. |
| 4. Monitored Withstand Test | 1.5 U_0 to 2.0 U_0 (15–60 min) | Combines continuous AC stress withstand with real-time leakage current trip monitoring. |
| 5. Automatic Data Logging | N/A (Internal Memory / USB) | Exports raw test records to PC software for automated IEEE 400.2 compliance reporting. |
How Does Automatic Frequency Regulation Handle Variable Cable Lengths?
In renewable generation sites and large industrial complexes, cable runs vary significantly in length, directly impacting total capacitive load (C). When testing longer cable circuits where total load capacitance approaches maximum generator limits, the MSVIF-101G automatically adjusts its output frequency from 0.1 Hz down to 0.05 Hz or 0.02 Hz. This manual and automatic frequency adjustment ensures that full target peak voltage (V_p) is delivered without overloading internal power electronics, maintaining compliance with international diagnostic standards.
Frequently Asked Questions (FAQ)
Q: What cable insulation types can be tested with the MSVIF-101G?
A: The MSVIF-101G is compatible with solid dielectric cables including XLPE, EPR, and TR-XLPE, as well as laminated PILC cables. The system's diagnostic algorithms adjust evaluation criteria according to the selected insulation material profile.
Q: How does the system handle unexpected breakdown during a field test?
A: The unit features real-time voltage breakdown detection. If dielectric breakdown occurs, the internal safety control automatically disconnects the high-voltage circuit within milliseconds, logging the exact breakdown voltage to memory to protect both operator and equipment.
