Specifying a No Partial Discharge AC Dielectric Test Set for Industrial Quality Control
Optimizing Quality Control with a No Partial Discharge AC Dielectric Test Set

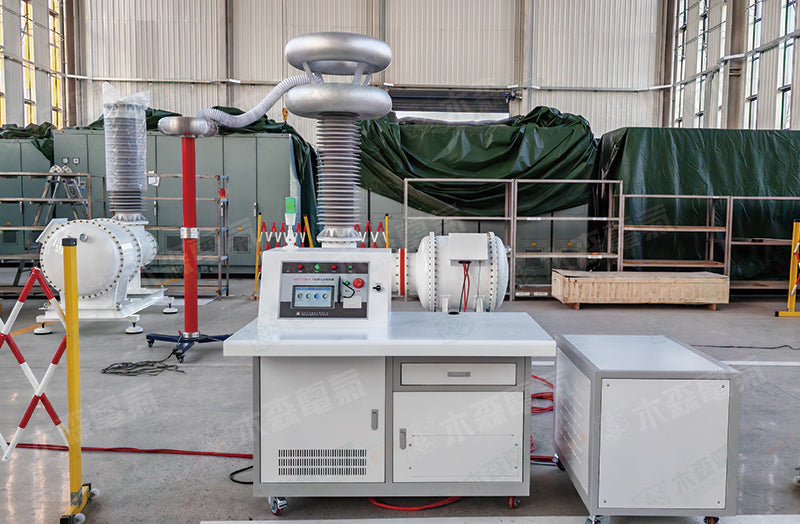

A No Partial Discharge AC Dielectric Test Set is a specialized high-voltage testing system designed to measure the insulation breakdown strength and localized discharge characteristics of electrical equipment without introducing test-system noise. The MSYDQ series by Musen Electric integrates the test transformer, protective resistor, divider, and coupling capacitor into a compact gas-insulated enclosure, providing guaranteed discharge metrics ≤3pC across operating voltages from 50kV up to 1000kV. This system allows electrical apparatus manufacturers to execute stringent factory acceptance testing (FAT) in accordance with IEC 60270 and IEEE Std 4.
What Makes Integrated Gas Insulation Superior to Air or Oil Systems?
Traditional open-air or oil-immersed test transformers present operational challenges in space-constrained production facilities. Air-insulated units require large safety clearances to prevent flashovers, while oil-filled systems present environmental containment risks and elevated background noise (often exceeding 10pC to 15pC) due to internal fluid convection currents and particulate suspension. A Gas-Type Partial Discharge-Free Test Transformer utilizes sulfur hexafluoride (SF6) at pressurized conditions to achieve high dielectric withstand in a small frame.
| Performance Metric | Conventional Oil/Air Test Set | MSYDQ Gas-Insulated System |
|---|---|---|
| System Partial Discharge Baseline | 10 pC – 50 pC | ≤ 3 pC (Max < 5 pC) |
| Component Integration | Discrete (Separate Divider/Capacitor) | All-in-One Internal Integration |
| No-Load Losses (P0) | > 6% | < 4% |
| Load Losses (Pk) | > 12% | < 9% |
| Footprint Requirement | 100% (Baseline Reference) | 30% to 40% of conventional footprint |
How Does the MSYDQ Series Reduce Life-Cycle Operating Costs?
Investments in high-voltage testing infrastructure are evaluated on capital expenditure (CAPEX) and long-term operational expenditure (OPEX). The MSYDQ Pd Free Test Transformer architecture delivers financial advantages across both domains:
- Reduced Equipment Procurement: Eliminates the need to buy independent coupling capacitors, high-voltage current-limiting reactors, and standalone capacitive voltage dividers.
- Facility Footprint Optimization: Requires minimal floor area, allowing installation inside standard factory bays or mobile testing trailers without expanding specialized high-voltage halls.
- Energy Loss Reduction: Engineered with low-coercivity silicon steel cores and optimized winding geometry, maintaining no-load losses below 4% and load losses below 9%, reducing power consumption during prolonged stress testing.
Where Is the MSYDQ Test Set Applied in High-Voltage Manufacturing?
This Partial Discharge Free Testing System is deployed across production lines for high-voltage bushings, current and potential transformers (CT/PT), gas-insulated switchgear (GIS) components, synthetic insulation materials, and safety protective equipment. The system features auto-zeroing controls, over-current tripping, and over-voltage protection circuits to prevent accidental breakdown of specimens under test.
Q: What standards govern the operation of the No Partial Discharge AC Dielectric Test Set?
A: The system complies with IEC 60270 (Partial Discharge Measurements), IEC 60060-1 (High-Voltage Test Techniques), IEEE Std 4, and ASTM D1816/D877 for dielectric strength diagnostics.
Q: What voltage steps are available in the MSYDQ series?
A: Standard MSYDQ models offer discrete voltage ratings including 50kV, 100kV, 150kV, 200kV, 250kV, 300kV, 500kV, 600kV, and 1000kV, with custom power capacities scaled from 50kVA up to 1200kVA.
