Primary Current Injection Tester - Test Precautions and Features? The test precautions and core features of the primary current injection tester are as follows:

I. Test Precautions

1. Safety and Connection Verification

◦ Preventing Open Circuit Hazards: Ensure the test circuit (including high-current conductors, connecting terminals, and test specimen) is securely and reliably connected. Open circuits at the output terminal are strictly prohibited to prevent dangerous high voltage damage to the equipment.

◦ Conductor Matching and Fire Prevention: Select dedicated high-current conductors with sufficient cross-sectional area and check that the conductor insulation is intact. The contact resistance at connection points should be low to prevent localized overheating and fire hazards.

2. Standard Operation and Monitoring

◦ Gradual Current Increase: Smoothly increase the output current from zero, closely monitoring the equipment and circuit status. Maintain the current for the specified time after reaching the predetermined value.

◦ Immediate Stop in Case of Abnormalities: If abnormal sounds, overheating, smoke, or abnormal ammeter readings occur, immediately and quickly reduce the current and disconnect the power.

3. Grounding and Heat Dissipation

◦ The equipment and test specimen must be reliably grounded. Prolonged high-current output requires close monitoring of equipment temperature rise. Ensure adequate ventilation and heat dissipation to prevent overheating and equipment damage.

II. Core Features

1. High-Capacity Current Output: Its core capability is providing hundreds to thousands of amperes of power frequency current to simulate primary system fault currents and directly test the performance of primary equipment (such as circuit breakers and transformers).

2. Direct and Effective Testing: Compared to the "secondary-side simulation" testing method, the primary current injection method directly generates a real high current in the primary circuit, providing the most realistic and comprehensive assessment of the performance of all components (such as current transformers, circuit breakers, and connection points) along the entire current path.

3. Portable Integration and Comprehensive Protection: Modern equipment is highly integrated with optimized size and weight for easy field relocation. Built-in overcurrent, overtemperature, and open-circuit voltage protection ensures safe operation.

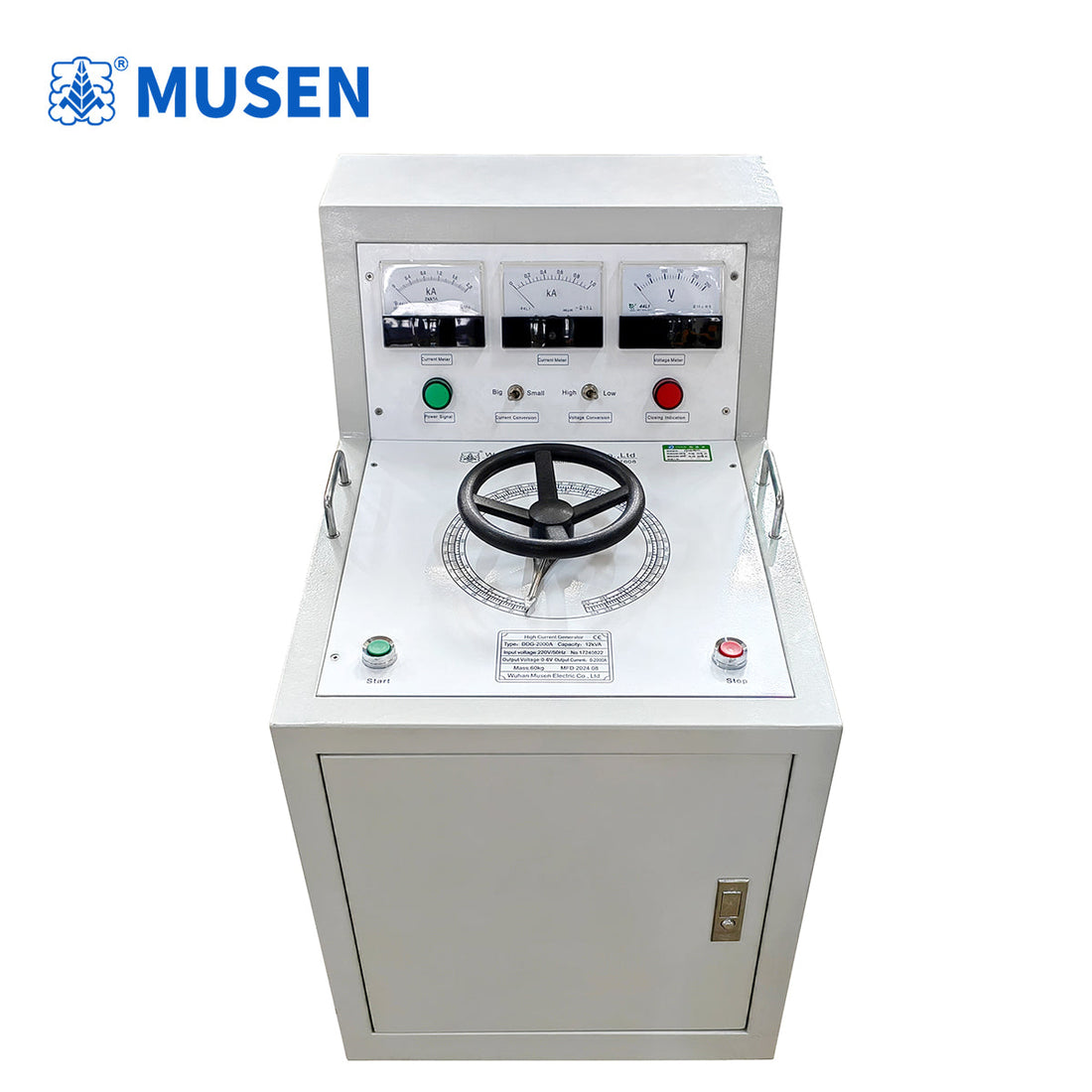

Summary: This equipment is an authoritative means of verifying the current-carrying capacity of primary system equipment and the accuracy of protection system actions. Its key operational aspects are preventing open circuits, maintaining connections, and gradual current ramp-up. Its core value lies in providing a realistic and effective high-current testing environment. The MSDDG-1000A primary current injection tester is an essential piece of equipment for electrical testing in applications requiring high current. It is used in power plants, substations, electrical manufacturing facilities, research institutions, and laboratories. Operating on a short-time or intermittent basis, it features small size, light weight, high performance, and ease of use and maintenance.
