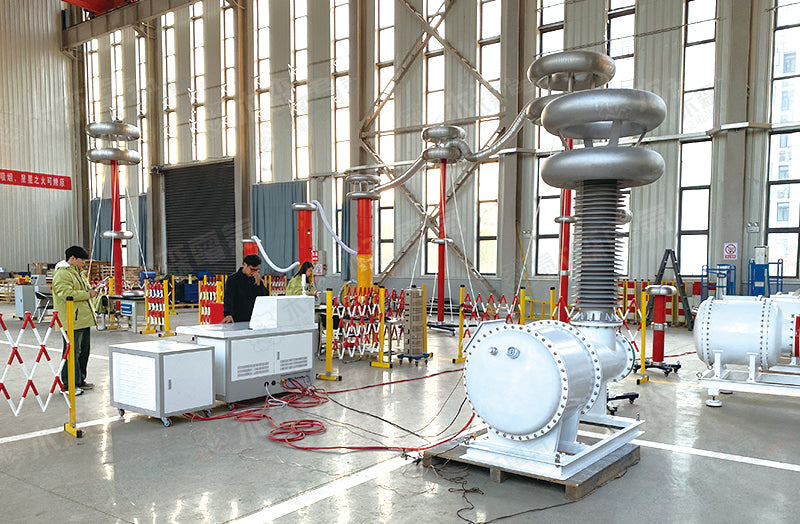

Selecting Gas Insulated Hv Test-Transformer Systems for Field and Lab Applications
Selection Criteria for Gas Insulated Hv Test-Transformer Systems
Gas Insulated Hv Test-Transformer Systems provide stable high-voltage generation with low background partial discharge, serving as essential tools for evaluating solid, liquid, and gas insulation systems. The MSYDQ series by Musen Electric integrates the primary transformer, coupling capacitor, capacitive divider, and limiting reactor into a sealed gas vessel, maintaining background partial discharge levels ≤3pC across capacities from 50kVA to 1200kVA and voltages up to 1000kV. This integration eliminates external interconnections and complex ground loops, simplifying setup for both factory and field applications.
What Key Technical Parameters Define an Optimal Test System?
When selecting a Gas Insulated Ac Discharge Free High Voltage Testing setup, engineering teams evaluate dielectric stress capability, total loss metrics, and systemic interference levels. The MSYDQ series offers competitive performance across these metrics:
| Engineering Selection Criterion | MSYDQ Series Benchmark Value | Operational Advantage |
|---|---|---|
| Partial Discharge Noise Level | ≤ 3 pC (Guaranteed) / < 5 pC (Max Peak) | Enables measurement of tiny insulation voids per IEC 60270 |
| No-Load Losses (P0) | < 4.0 % | Reduces thermal dissipation and power consumption |
| Full-Load Losses (Pk) | < 9.0 % | Supports extended duty cycles without overheating |
| Available Output Voltages | 50kV, 100kV, 150kV, 200kV, 250kV, 300kV, 500kV, 600kV, 1000kV | Matches standard grid voltage test requirements |
| Test Frequency Range | 50/60 Hz Power Frequency & 30–300 Hz Resonant Range | Meets IEEE 400.2 and IEC 60840 standards |
How Does the Integrated MSYDQ Architecture Streamline Field Testing?
Deploying a traditional Partial Discharge Free Testing System on-site requires transporting multiple heavy components, including separate coupling capacitors, high-voltage filter chokes, and measuring dividers. Assembling these components under outdoor conditions introduces floating capacitance and corona discharge from temporary connections. The MSYDQ series incorporates all four core high-voltage elements within a single gas-insulated cylinder:
- Integrated Voltage Divider: Provides precise high-voltage feedback for metering and control without external wiring.
- Integrated Coupling Capacitor: Decouples high-frequency partial discharge signals (kHz to MHz range) directly to the measuring instrument.
- Integrated Damping Resistor: Limits short-circuit flashover current, protecting both the internal windings and the specimen under test.
Which Industries Benefit Most from MSYDQ Deployment?
The MSYDQ series is designed for manufacturers of power transformers, high-voltage switchgear (GIS/PASS), subsea power cables, and synthetic polymer insulators. It is also used by national electric power research laboratories and utility testing teams performing routine field withstand checks on safety equipment.
Q: What voltage ratings are recommended for safety tool testing in mobile units?
A: Models rated at 50kV, 100kV, or 150kV with capacities between 50kVA and 100kVA are ideal for vehicle-mounted safety tool testing due to their compact footprint and light weight.
Q: How does the auto-zero function contribute to testing safety?
A: The control unit requires the voltage regulator to return to zero before energization, preventing sudden voltage transients from damaging the test specimen or stressing internal insulation.
