Safety Dielectric Verification of 110kV Live-Working Protective Tools Using the YDQ-30kVA/250kV Gas-Insulated Test Transformer
Safety Dielectric Verification of 110kV Live-Working Protective Tools Using the YDQ-30kVA/250kV Gas-Insulated Test Transformer

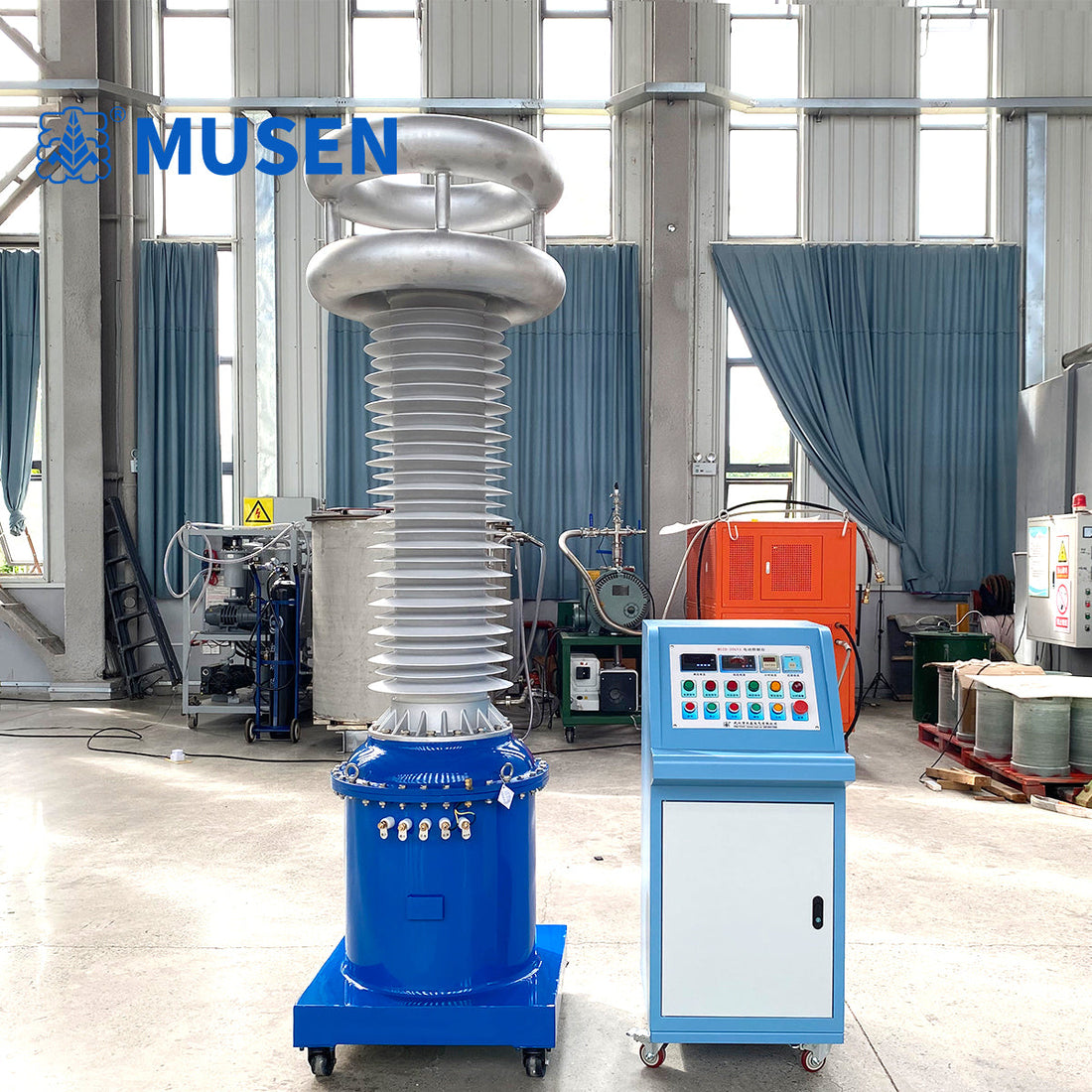

The YDQ-30kVA/250kV gas-insulated test transformer serves as an ultra-high voltage (UHV) AC power supply engineered specifically for safety compliance testing on 110kV live-working protective tools, including capacitive voltage detectors, drop-out fuse operating poles (Link sticks), and insulating hot sticks. Compliant with IEC 61243-1, IEC 60855-1, and IEEE Std 978, this system delivers an adjustable power-frequency voltage up to 250kV AC to establish standardized testing conditions for electrical safety equipment.
Why Is 250kV Output Required for 110kV Line Tool Testing?
Safety standards for live-line maintenance tools require proof testing at voltages significantly higher than the nominal line-to-ground operating voltage ($63.5\text{ kV}$ for a $110\text{ kV}$ system). Per IEC 60855-1, insulating rods undergo withstand verification tests reaching up to 220kV–250kV AC across specified segment lengths to account for environmental humidity, impulse overvoltages, and surface contamination margins.
|
Target Protective Tool |
Applicable Voltage Class |
Standard Test Voltage (AC) |
Holding Time |
Governing Standard |
|---|---|---|---|---|
|
Capacitive Voltage Detectors |
110 kV System |
145 kV - 180 kV |
1 minute |
IEC 61243-1 |
|
Insulating Hot Sticks / Operating Rods |
110 kV System |
220 kV - 250 kV |
1 minute |
IEC 60855-1 |
|
Drop-out Fuse Operating Sticks |
35kV - 110kV System |
105 kV - 250 kV |
1 minute |
IEEE Std 978 |
Key Technical Features of the YDQ-30kVA/250kV Test System
Generating 250kV AC in field test facilities traditionally required large, oil-filled transformer tanks weighing over 400 kg. The YDQ-30kVA/250kV gas-insulated test transformer replaces oil with SF6 gas dielectric insulation at 0.4 MPa operating pressure. This reduces overall mass to approximately 160 kg, enabling single-vehicle field transport.
1. Optimized Electric Field Symmetry
Equipped with a top-mounted toroidal corona ring, the outer vessel minimizes localized field concentration, preventing premature air ionization and corona discharge during 250kV testing.
2. Environmental Immunity
The sealed metal enclosure isolates the primary and secondary winding assemblies from atmospheric moisture, dust, and altitude variations, delivering repeatable output accuracy within pm 1.5%$
Q: Why is a gas-insulated test transformer preferred over resonant test systems for tool safety testing?
A: Insulating sticks and voltage detectors represent purely resistive/small capacitive loads. Variable frequency resonant test systems require precise inductance tuning which is inefficient for low-capacitance test items. A gas-insulated test transformer provides direct, reliable voltage step-up without complex tuning networks.
Q: What maintenance is required for the SF6 gas chamber?
A: The YDQ series features a hermetic seal with an annual leakage rate of less than 0.5% per IEC 60376. Under normal operating conditions, no gas replenishment or media filtration is required for up to 5 years.
