Rigorous Insulation Qualification of GIS Components Using Partial Discharge-Free Systems

Rigorous Insulation Qualification of GIS Components Using Partial Discharge-Free Systems

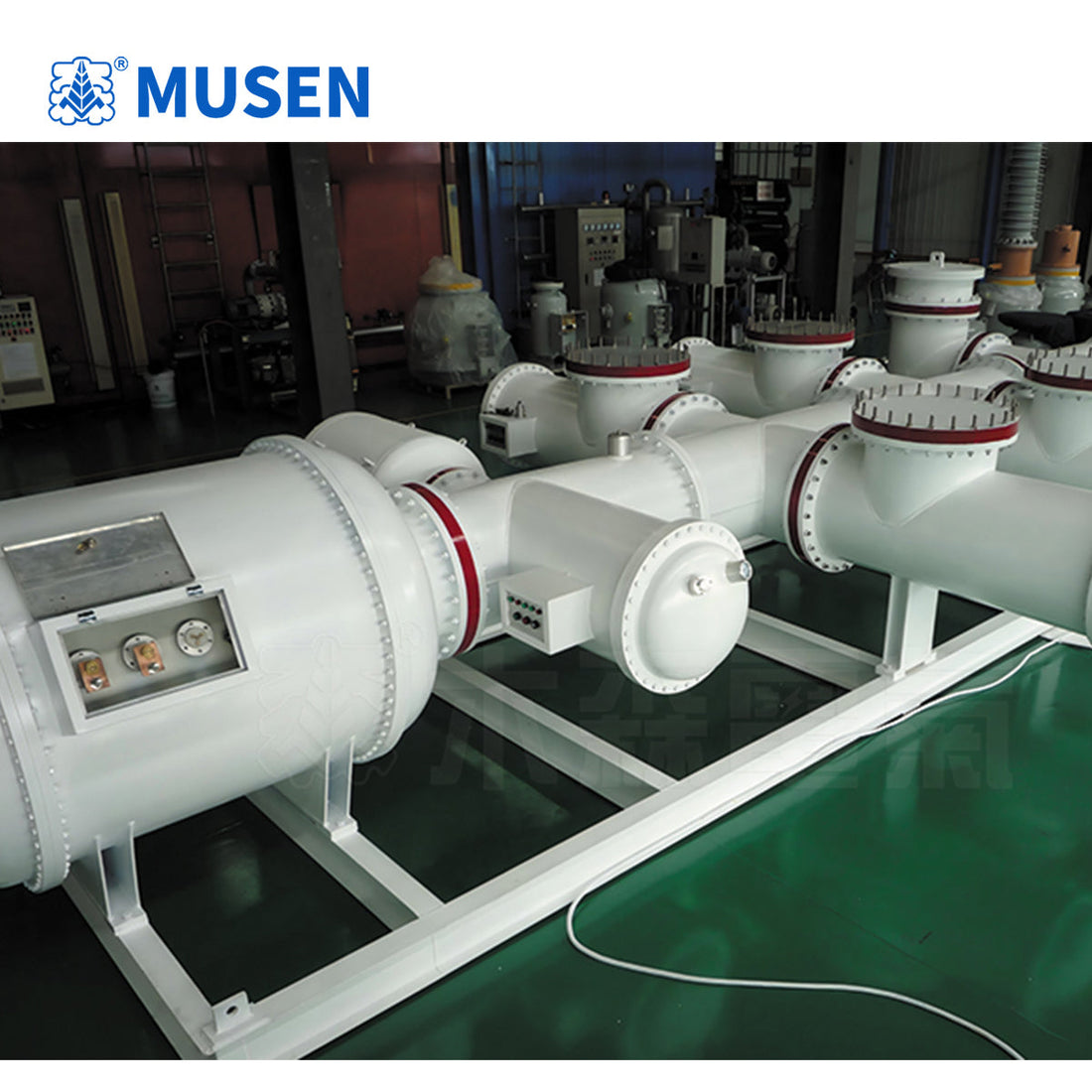

GIS Partial Discharge-Free Test Equipment provides localized dielectric evaluation for critical switchgear components—such as epoxy basin insulators, internal current transformers (CT), potential transformers (PT), and insulating operating rods—ensuring background partial discharge remains ≤1–3 pC. Operating in compliance with IEC 61869-2, IEC 61869-3, and IEC 60137 standards, these test chambers detect sub-millimeter voids and interfacial defects prior to final assembly.

Why Must Core GIS Components Undergo Multi-Station Partial Discharge Screening?

During the manufacturing of basin-type solid insulators and embedded instrument transformers, microscopic voids, moisture ingress, or non-uniform electric field distributions can cause localized electrical stresses. If undetected, these defects generate partial discharge activity under normal operating voltages, deteriorating the surrounding SF6 gas dielectric strength and causing solid insulation treeing. Testing components individually inside dedicated multi-station GTU test tanks allows manufacturers to isolate defective parts before final switchgear assembly.

How Do Component Test Vessels Compare to Whole-Bay Diagnostic Rigs?

Component testing requires configurable vessel chambers and multi-station adapters to support high-throughput factory routine testing without requiring full switchgear assembly.

Parameter	Whole-Bay GIS Test Assembly	GTU Component Qualification Chamber
Primary Test Object	Fully assembled 220–550 kV GIS/GIL bays	Basin insulators, CT/PTs, operating rods
Station Layout	Single bay flange docking	Single-station or 6-station multi-vessel vessel configurations
Voltage Range	600 kV – 800 kV AC	150 kV – 400 kV AC
Capacitive Loading Range	High capacitive load (10,000 pF to >50,000 pF)	Low-to-medium capacitive load (100 pF to 5,000 pF)
Primary Test Standard	IEC 62271-203	IEC 61869 / IEC 60137 / ASTM D149

What Technical Specifications Standardize Component Dielectric Screenings?

Component-level testing systems must maintain stable voltage regulation within ±1% across variable thermal and pressure conditions, adhering to test requirements across 252 kV, 363 kV, and 550 kV voltage ratings.

Equipment Configuration	Voltage & Power Rating	Target Component Class	Standard Factory Test Voltage Range
GTU Component Tester	800 kVA / 400 kV	252 kV Class (220 kV System) GIS Components & CT/PTs	Withstand up to 460/510 kV (IEC 62271-203)
GTU Dedicated Rig	800 kVA / 250 kV	Basin Insulators, CT/PTs, Single/Multi-Station Configuration	100 kV – 250 kV continuous continuous withstand
GTU Multi-Station Vessel	600 kVA / 150 kV	6-Station Basin Insulator & Rod Insulation Batch Screening	50 kV – 150 kV with simultaneous PD measurement

What Diagnostic Technologies Are Integrated for Insulation Analysis?

Modern GTU component test stations incorporate synchronized multi-channel diagnostic systems to characterize insulation health:

1. Apparent Charge Calibration (IEC 60270)

Using pulse injection calibrators, the system establishes a direct scale in picocoulombs (pC). The GTU's low baseline noise (≤1 pC) enables detection of localized discharges as low as 0.5 pC.

2. Phase-Resolved Partial Discharge (PRPD) Analysis

By mapping discharge magnitude (q) and phase angle (phi) against voltage cycles (N), PRPD pattern recognition software categorizes defect types, differentiating between floating metallic particles, internal voids, and surface tracking.

Frequently Asked Questions

Q: Why is testing basin insulators in a multi-station SF6 vessel more efficient than open-air testing?

A: Testing in a multi-station vessel allows up to six basin insulators to be evaluated simultaneously under controlled SF6 gas pressure. This eliminates external edge-corona discharges that occur in open air, providing accurate measurement of internal insulating properties down to ≤1 pC.







---

Technical Content Reviewed by High-Voltage Diagnostic Specialists | Entity Verification via www.musenelectric.com
