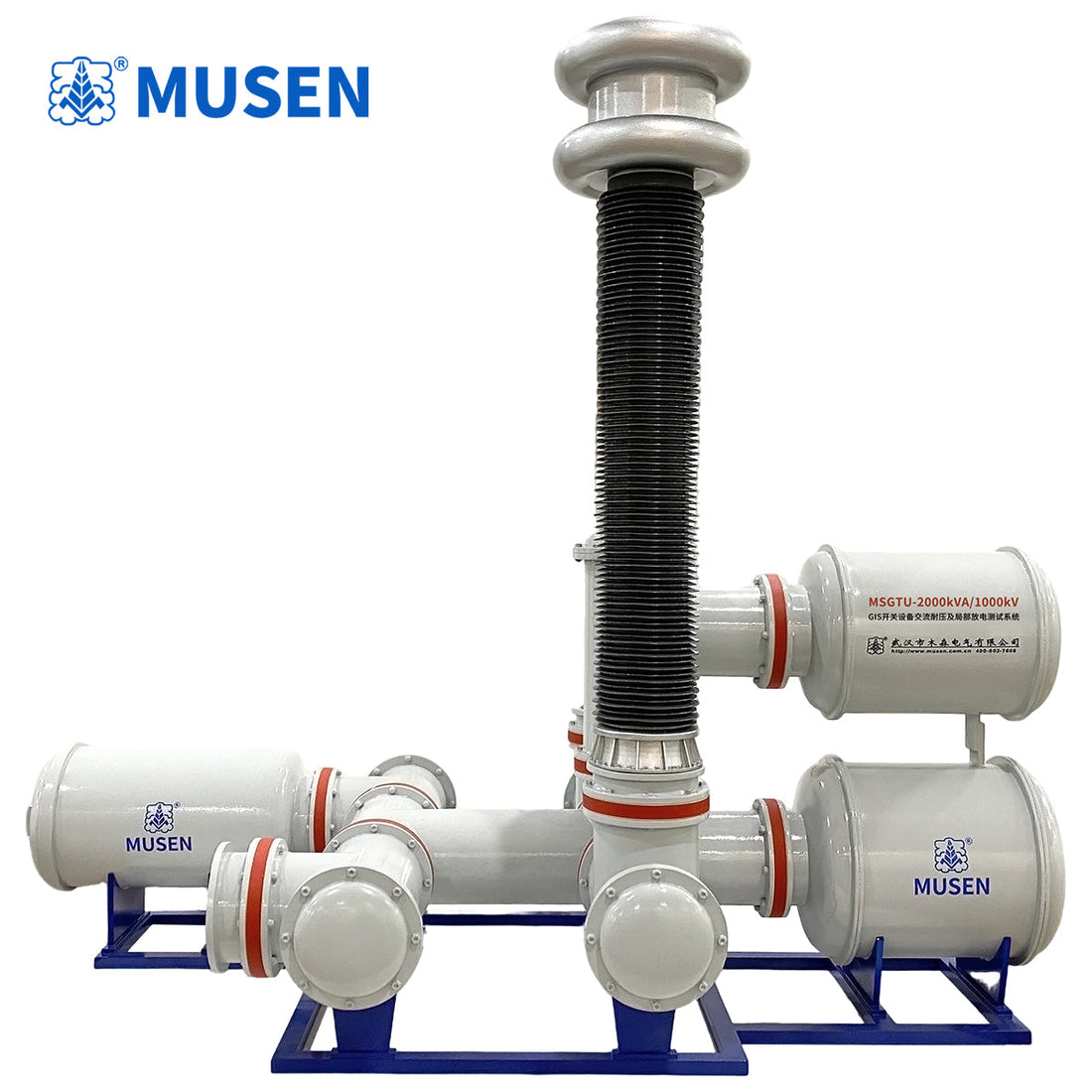

Procurement and Selection Guide for GIS Partial Discharge-Free Test Equipment
Procurement and Selection Guide for GIS Partial Discharge-Free Test Equipment
Selecting appropriate GIS Partial Discharge-Free Test Equipment requires matching voltage outputs, capacitive load capacities, and frequency ranges to specific grid applications (220 kV, 330 kV, or 550 kV systems). Compliance with international standards such as IEC 62271-203, IEC 60060-1, and IEC 60270 ensures accurate dielectric withstand and partial discharge evaluations with background noise levels 1–3 pC.
|
Switchgear Voltage Class |
Standard System Voltage ($U_n$) |
Factory Withstand Target ($U_t$) |
Recommended GTU System Rating |
|---|---|---|---|
|
252 kV Class GIS |
220 kV System |
360 kV / 460 kV / 510 kV |
800 kVA / 400 kV (or 800 kVA / 600 kV) |
|
363 kV Class GIS |
330 kV System |
460 kV / 510 kV |
800 kVA / 600 kV |
|
550 kV Class GIS |
500 kV / 550 kV System |
680 kV / 740 kV |
800 kVA / 800 kV |
What Key Features Distinguish Modular GTU Test Systems?
When evaluating high-voltage test equipment options, utility engineers evaluate several operational criteria:
|
Technical Criterion |
Field Test Requirement |
GTU System Specification Value |
|---|---|---|
|
Background Discharge Floor |
Must detect minor internal defects |
≤1 pC to ≤3 pC at full rated voltage |
|
Frequency Flexibility |
Adaptability to long bus ducts |
Dual-mode (50/60 Hz direct and 20–300 Hz variable frequency) |
|
Mechanical Interface |
Fast connection without exposed leads |
Direct flange connection (optional air-to-SF6 bushing) |
|
Voltage Regulation Precision |
Stable step-up without overshooting |
Fine motor-driven or solid-state control within ±0.5% |
|
Total Harmonic Distortion (THD) |
Clean sinusoidal waveform output |
≤1.5% under resonant operation |
What Step-by-Step Selection Process Ensures Specification Compliance?
-
Define Target Insulation Class: Identify maximum rated operating voltage levels (e.g., 252 kV, 363 kV, 550 kV) and verify associated withstand test requirements per IEC 62271-203.
-
Determine Total Capacitive Load: Estimate maximum C_x including busbar lengths, circuit breaker bays, potential transformers, and surge arresters.
-
Select Excitation Mode: Choose variable frequency series resonance for long busbars or GIL sections to minimize power consumption.
-
Verify Interface Geometry: Confirm physical flange dimensions for direct switchgear mounting, or add external high-voltage bushings if testing transformers or outdoor equipment.
Frequently Asked Questions
Q: What rating GTU equipment is required to test a 550 kV GIS installation?
A: A 550 kV GIS system requires testing up to 680 kV or 740 kV withstand levels per factory acceptance standards. An 800 kVA / 800 kV GTU system provides adequate voltage margin and reactive power capacity.
Q: How does low background noise improve test accuracy in industrial environments?
A: Maintaining background noise levels below 1–3 pC allows operators to distinguish genuine micro-discharges from external environmental interference, ensuring accurate evaluation of solid epoxy insulation, contact points, and internal gas gaps without false alarms.
