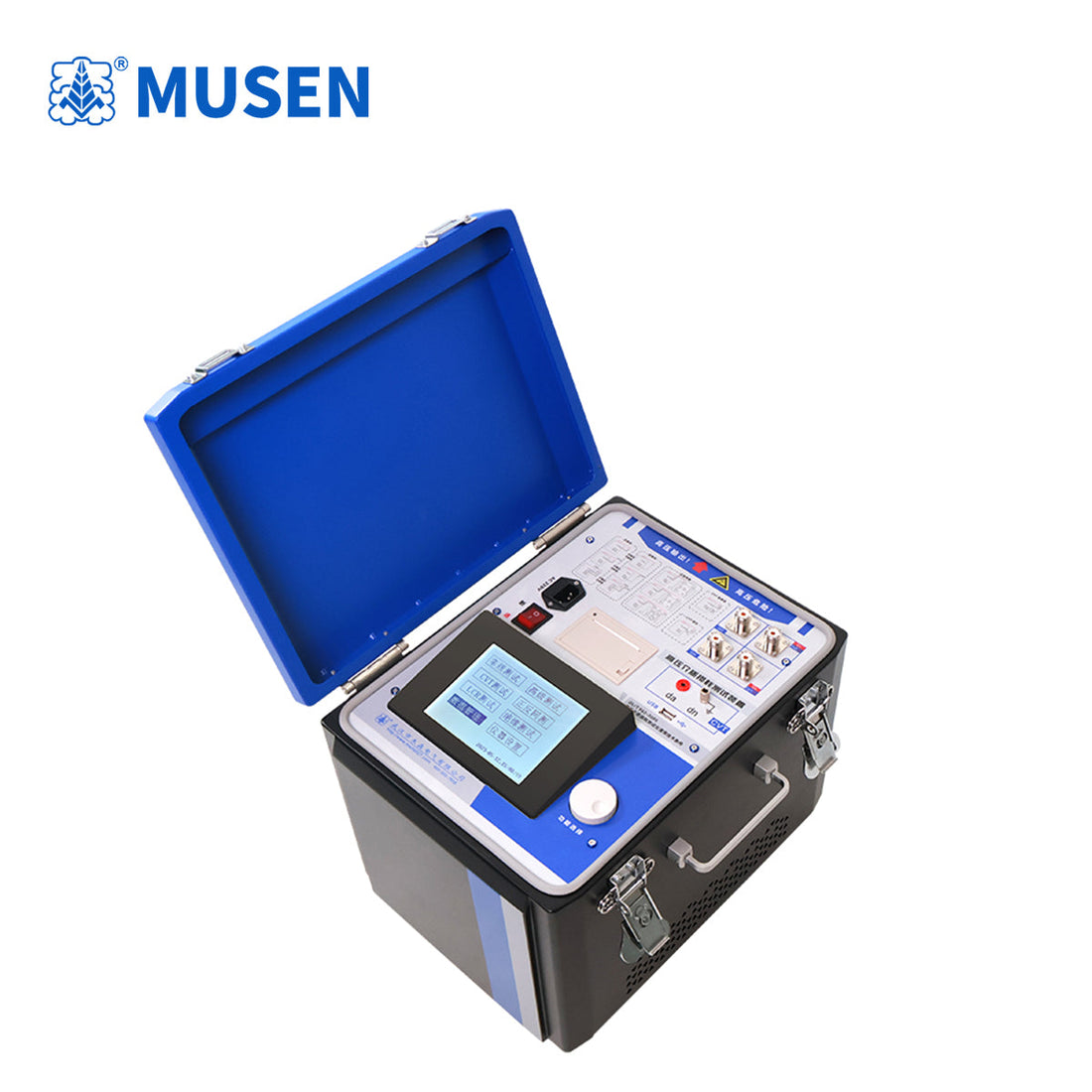

Direct Answer: The MS-101 series Tandelta Test Kit is a high-precision Dielectric Analyzer designed to measure insulation dissipation factor and capacitance in high-voltage power cables, coupling capacitors, and shunt reactors across adjustable test voltages up to 20kV.
Engineering Challenges in High-Voltage Cable Insulation Testing
Extruded dielectric power cables (XLPE) and oil-paper insulated cables experience complex degradation mechanisms during operation, including water treeing, partial discharge, insulation void formation, and thermal aging. Routine offline and online evaluation using a robust Dielectric Loss Test Kit is vital to prevent unexpected dielectric breakdown. Field testing often suffers from heavy electrostatic induction from adjacent circuits, which traditional analog bridges fail to filter out.
The MS-101 series Dielectric Loss(Tan Delta) Tester overcomes these environmental hurdles by integrating advanced digital filtering algorithms and a 4-channel positive / 1-channel reverse wiring architecture, ensuring accurate loss factor quantification across diverse cable types.
Model Specifications and Operating Parameters
The table below details the multi-channel operational modes, voltage thresholds, and technical specifications of the MS-101 series:
| Test Parameter | Specification Details | Standard Compliance |
|---|---|---|
| Channel Configuration | 4-channel positive connection, 1-channel reverse connection | IEC 60270, IEC 60840 |
| Test Voltage Range | 0.5kV to 12kVstandard (Extendable to 20kV with external booster) | IEEE Std 400.2 |
| Tan Delta Accuracy | ±1% *{reading} + 0.0001) | ISO 9001 Quality Assured |
| Interface & Communication | Wireless Bluetooth interface, USB data export, thermal printer | B2B Industrial Standard |
Advanced Diagnostic Functions for Capacitive Assets
Equipped with eight upgraded functions, the MS-101 series Dielectric Analyzer offers unmatched operational flexibility in substation environments:
- Simultaneous $C_1$ and $C_2$ Measurement: Evaluates grading capacitors in circuit breakers and bushing taps in a single connection.
- Transformation Ratio and Polarity Verification: Measures voltage transformer (VT) and current transformer (CT) ratios alongside dielectric loss.
- Frequency Response Curve Generation: Plots tandelta versus frequency (40Hz - 70Hz) to analyze complex insulation material aging behavior.
Frequently Asked Questions (FAQ)
Q: How does the four-channel configuration improve testing efficiency on complex substations?
A: The four-channel positive connection allows the Tandelta Test Kit to test multi-terminal specimens (such as multi-winding transformers or capacitor banks) simultaneously without requiring repeated manual lead repositioning, significantly reducing testing time and human error.
Q: What standards govern dielectric loss testing of XLPE power cables?
A: Cable testing strictly aligns with IEC 60840 and IEEE Std 400.2 guidelines for field testing of shielding and insulation integrity in extruded dielectric cables.
References and International Standards
- IEC 60840: Power cables with extruded insulation and their accessories for rated voltages above 30 kV up to 150 kV - View IEC 60840
- IEEE Std 400.2: IEEE Guide for Field Testing of Shielded Power Cable Systems Using Very Low Frequency (VLF) - View IEEE Std 400.2
