Positioning Integrated Gas-Insulated Test Transformers as Industry Benchmarks for High-Precision PD Diagnostics
Positioning Integrated Gas-Insulated Test Transformers as Industry Benchmarks for High-Precision PD Diagnostics

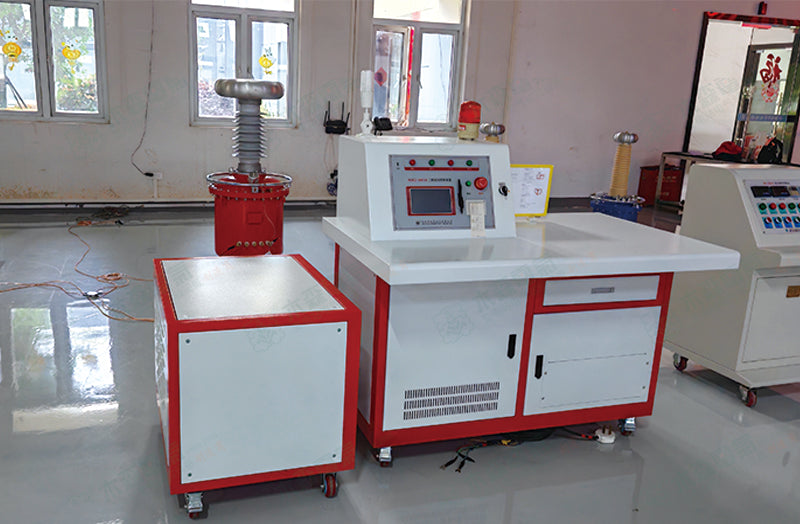

The No Partial Discharge AC Dielectric Test Set (MSYDQ Series) serves as an industry benchmark for mid-to-high-end insulation testing applications, combining a ≤3pC background discharge threshold with a compact gas-insulated footprint. Operating across voltage tiers from 50kV to 1000kV and power capacities from 50kVA to 1200kVA, this test architecture addresses the challenge of performing high-sensitivity dielectric diagnostics inside space-constrained industrial laboratories and mobile field units.
What Market Needs Drive the Transition to Integrated PD Testing Systems?
Modern electrical grid infrastructure requires elevated insulation quality control standards. Traditional air-insulated high-voltage transformers suffer from external corona discharge at voltages above 100kV unless large ring structures are installed. This increases spatial demands and limits deployment in small laboratory environments.
The (non-partial discharge high-voltage test system) addresses these challenges by enclosing the active transformer components inside SF6 gas or high-strength epoxy resin cylinders. The MSYDQ No Partial Discharge AC Dielectric Test Set maintains a noise floor ≤3pC, enabling reliable detection of micro-discharge phenomena in accordance with IEC 60270 and IEC 62271-203 standards.
How Does the MSYDQ Bridge Fixed Laboratory and Mobile Field Applications?
Historically, high-voltage testing systems were divided into two categories: large fixed installations for factory acceptance testing (FAT) or lower-precision portable sets for field maintenance. The MSYDQ gas-insulated non-partial discharge test transformer) unifies these capabilities into a single equipment platform.
| Operational Metric | Laboratory Testing Requirements | Mobile Field Testing Requirements | MSYDQ Series Capability |
|---|---|---|---|
| PD Noise Floor | ≤ 5 pC per IEC standards | ≤ 10 pC acceptable | ≤ 3 pC (Exceeds both benchmarks) |
| Mobility / Mounting | Fixed foundation permitted | Must fit inside vehicle/trailer | Compact frame, truck-mountable design |
| Voltage Capability | Up to 1000 kV | Typically 50 kV – 300 kV | Scalable ratings from 50 kV to 1000 kV |
| Insulation Medium | Oil or SF6 Gas | Dry or SF6 Gas | Sealed SF6 Gas / Epoxy Cylinder |
| Interconnection Needs | Permanent busbars | Quick-disconnect wiring | Integrated components, reduced wiring |
What Technical Specifications Define High-Precision Diagnostics?
To qualify as a high-precision diagnostic instrument, a (non-partial discharge test system) must deliver stable voltage waveforms with minimal harmonic distortion. The MSYDQ system achieves a total harmonic distortion (THD) of <3% under nominal linear load conditions, fully adhering to IEEE Std 4 requirements.
The built-in capacitive voltage divider within the (non-partial discharge test transformer) provides real-time peak and RMS voltage measuring signals accurate to within ±1.0% of full scale. This direct feedback loop eliminates external voltage measurement errors, ensuring repeatable testing conditions during step-stress dielectric withstand evaluations.
Why Is SF6 Gas Insulation Preferred over Oil-Immersed Systems?
SF6 gas insulation in a gas-insulated high-voltage test transformer system) offers clear advantages over oil-immersed setups. SF6 gas is non-flammable, eliminating fire hazards in urban sub-stations or congested manufacturing floors. Additionally, SF6 insulated tanks weigh up to 30% less than equivalent oil-filled vessels, simplifying crane operations and transport logistics.
The gas-insulated AC non-partial discharge high-voltage test device) incorporates density monitors and automated gas pressure protection switches. These features ensure safe operation across ambient temperatures ranging from -15°C to +45°C.
Frequently Asked Questions
Q: How does the MSYDQ system maintain a partial discharge level ≤3pC at high voltages up to 1000kV?
A: The system achieves this through optimized electric field distribution calculated via 3D finite element analysis (FEA), seamless internal integration of coupling capacitors, polished high-voltage shielding domes, and the elimination of air voids within the SF6 dielectric medium.
Q: What standards apply to mobile tool testing using this equipment?
A: The system complies with IEC 60832 and ASTM F711 standards for testing live-line tools and insulated protective equipment, providing reliable voltage withstand and partial discharge verification in compact testing facilities.
