Performance Comparison: vlf hipot tester vs Traditional Testing | Musen
-
vlf hipot tester, Ultra-Low Frequency Generator, Very Low Frequency (Vlf) Generator, (Vlf) Generator, Very Low Frequency Cable Tester
-

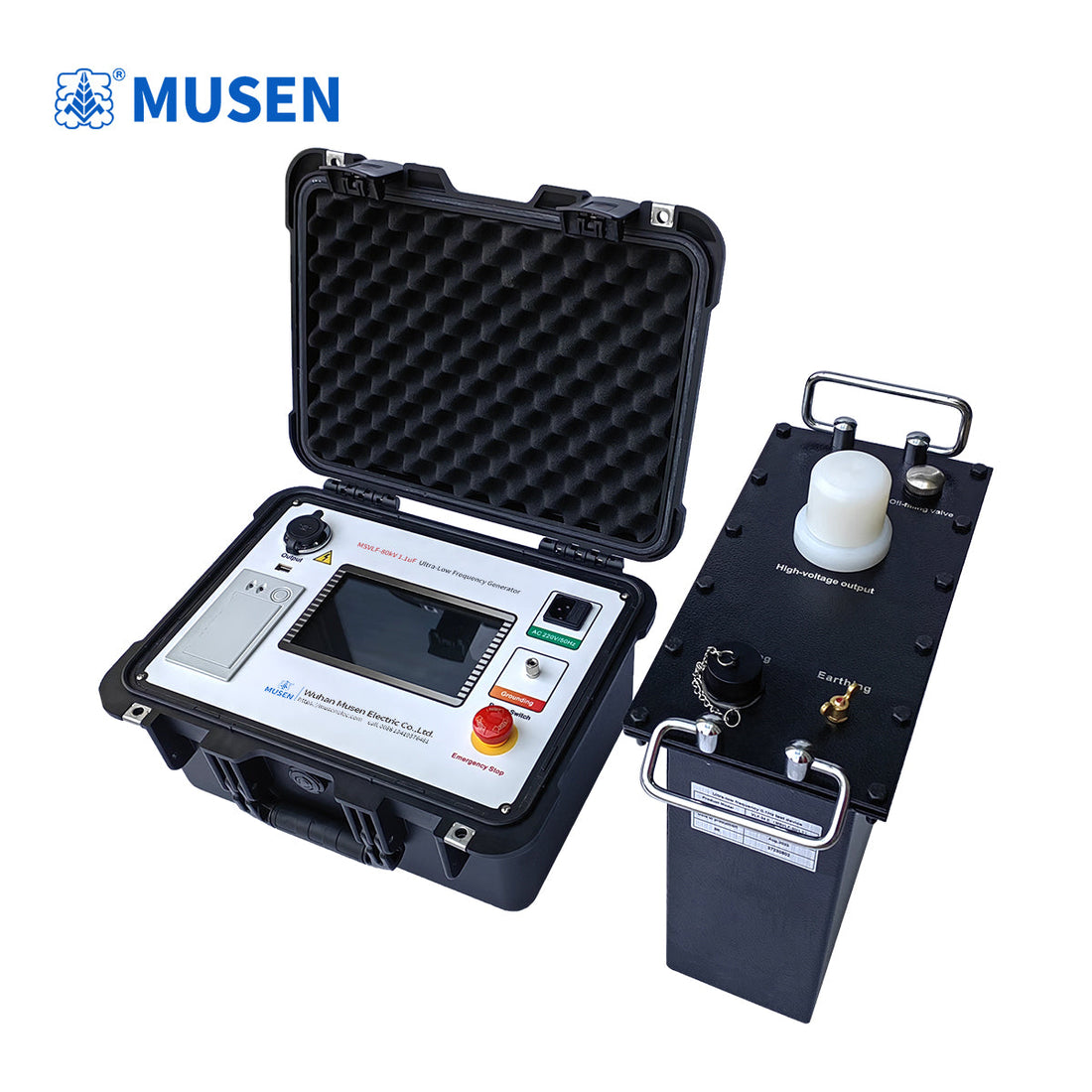

Compare the MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz Ultra-Low Frequency Generator with traditional DC and AC testing methods based on IEEE standards.
Direct Answer & Introduction
Evaluating insulation integrity requires selecting appropriate diagnostic tools; specifically, a vlf hipot tester provides superior diagnostic accuracy for XLPE-insulated cables compared to legacy DC testing. The MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz Ultra-Low Frequency Generator prevents space charge accumulation while reliably precipitating structural flaws in accordance with IEEE 400 and IEC 60502.
Evaluating Test Equipment Performance: Why 0.1Hz Matters
Traditional DC testing methods have been shown to accelerate degradation in extruded dielectric cables by creating space charges that distort electric field distributions.
What is the performance comparison between a Very Low Frequency (Vlf) Generator and conventional AC/DC units?
The MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz unit offers adjustable multi-frequency outputs (0.1Hz, 0.05Hz, and 0.02Hz), allowing technicians to test long cable runs up to 5.5µF at 0.02Hz. Its digital frequency conversion technology guarantees stable waveforms with a voltage distortion factor of ≤ 5%.
Performance and Specification Comparison Matrix
| Test Parameter | MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz | Traditional DC Testing |
| Waveform Type | True Sinusoidal (0.1Hz / 0.05Hz / 0.02Hz) | Direct Current (DC) |
| Insulation Damage Risk | Minimal (Non-destructive defect localization) | High (Space charge accumulation in XLPE) |
| Max Load Capacitance | Up to 5.5µF (at 0.02Hz) | Limited by DC source output ripple |
| Measurement Accuracy | Within ±1% (Voltage peak error ≤ ±3%) | ±2% to ±5% |
Operational Reliability and Field Usability
Designed for harsh environments, the unit operates within an ambient temperature range of -10°C to +40°C and relative humidity up to ≤ 85% RH. Featuring a color capacitive touch screen, Chinese/English language switching, and an internal thermal printer, data management and reporting comply with rigorous industrial quality audits.
Frequently Asked Questions (FAQ)
-
Q: Why is DC testing discouraged for modern XLPE cables?
-
A: According to IEEE 400.1, DC voltage tests can leave harmful space charges in XLPE insulation, which can lead to premature cable failure when re-energized at power frequency.
-
-
Q: What safety features prevent high-voltage feedback damage?
-
A: The system incorporates dual overvoltage and overcurrent protection on both high and low voltage sides, responding in ≤ 10ms to isolate faults safely.
-
