Partial Discharge Testing (PD Testing) / Partial Discharge Tester - Test Precautions and Features? The test precautions and features of the partial discharge tester are as follows:

I. Test Precautions

1. Safety First, Standardized Operation: Ensure the test sample is completely de-energized, isolated, and reliably grounded. The tester itself and all sensors, coupling capacitors, and other accessories must also be properly grounded to prevent electric shock and reduce common-mode interference.

2. Strengthen Anti-interference Measures: On-site electromagnetic interference is a major challenge. Before testing, the background interference level should be measured, and effective measures should be taken, such as using an independent power supply, installing a power filter, and keeping away from interference sources. During analysis, functions such as time-domain windowing and frequency-domain filtering should be used to identify and eliminate interference signals.

3. Ensure Correct Sensor Installation and Calibration: Select appropriate sensors (such as HFCT, TEV, UA) according to the test sample and detection target. Installation must be reliable; for example, high-frequency current transformers must be correctly oriented and have good contact, and ultrasonic sensors must be effectively coupled. Regularly calibrate the sensors and system to ensure the accuracy of measurement data.

4. Comprehensive Analysis and Diagnosis: Avoid relying solely on a single discharge quantity indicator. A comprehensive judgment must be made by combining discharge phase, repetition frequency, and discharge spectrum. Phase-resolved partial discharge (PRPD) spectrum analysis is used to analyze the discharge type and assess the severity of insulation defects.

II. Main Technical Features

1. High Sensitivity and Multiple Detection Methods: Possesses high detection sensitivity, capable of detecting early, weak discharges. It typically integrates multiple detection methods, allowing simultaneous or selective use of pulse current method, transient ground voltage, ultrasonic, and ultra-high frequency methods for multi-dimensional verification.

2. Intelligent Analysis and Location Functions: Built-in advanced analysis software automatically generates PRPD and PRPS spectra to assist in identifying discharge types. Some devices can achieve time-difference positioning through multi-sensor collaboration, accurately locating the discharge source.

3. Portability and Ease of Use: The equipment is designed for portability, integrating data acquisition and analysis units, and equipped with an intuitive graphical interface for rapid on-site deployment and use, suitable for condition-based maintenance and inspection.

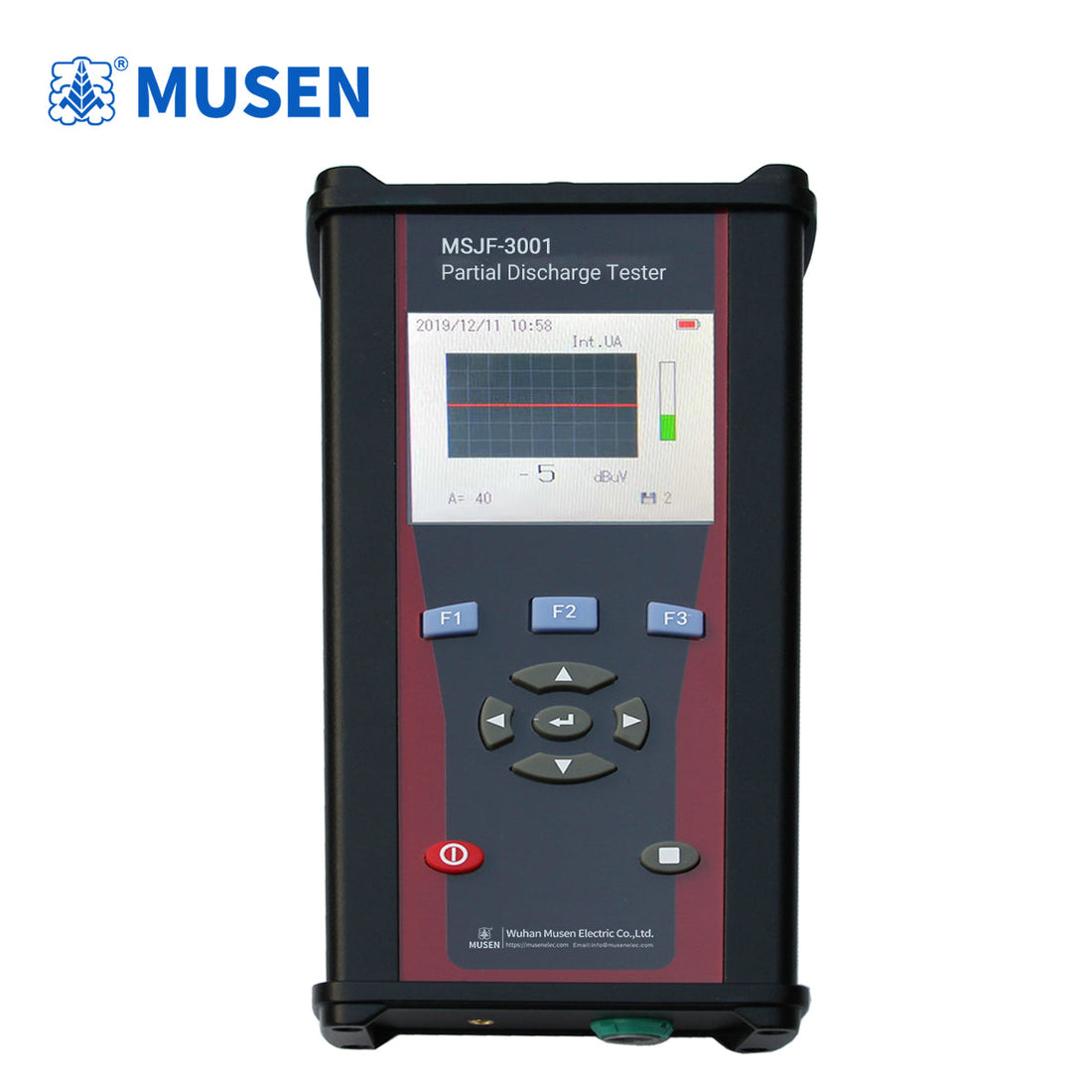

In summary, partial discharge testers are crucial equipment for diagnosing insulation defects. Their value lies in their ability to effectively capture, analyze, and locate partial discharges in complex field environments through high sensitivity and multiple technological means, enabling early warning and accurate diagnosis of equipment insulation status. The MSJF-3001B partial discharge tester employs ultra-high frequency (UHF) ground waves and ultrasonic waves to detect partial discharges. An external UHF sensor receives the UHF and ultrasonic signals generated by partial discharges within the GIS (Gas Insulated Switchgear), effectively detecting whether discharges exist inside the equipment.

This new partial discharge detector is primarily used to detect partial discharges in switchgear, transformers, cables, GIS, overhead lines, etc., during operation.

It integrates a built-in ultrasonic and ground wave dual-sensor within the main unit, enabling partial discharge detection of switchgear without the need for external sensors.

It features non-invasive detection, requires no power interruption during the detection process, is easy to operate, and offers multiple uses.
