I. Test Precautions

1. On-site Safety First: Ensure the test sample is completely powered off, isolated, and reliably grounded. Before testing, confirm that the tester casing and coupling components (such as high-frequency current transformers) are correctly grounded to prevent ground potential interference and ensure the safety of personnel and equipment.

2. Key Anti-interference Measures: On-site electromagnetic interference is a major challenge. Keep as far away as possible from corona sources (such as overhead lines), and prioritize the use of power filters. Before measurement, measure background interference and use various methods such as time-domain windowing and frequency-domain spectrum analysis to effectively identify and eliminate interference signals.

3. Correct Sensor Installation: Ensure the high-frequency current transformer (HFCT) is tightly engaged and correctly oriented; the ultrasonic sensor (UA) is well coupled; and the measurement impedance is correctly matched. Connecting cables should be reliable to avoid loosening and introducing additional noise.

4. Comprehensive Judgment Using Multiple Technologies: Avoid relying on only a single parameter. A comprehensive diagnosis requires combining multiple information sources, including discharge quantity, phase, frequency, and PRPD (Pressure-Resolved Phase Diagram) spectra, to accurately assess the type and severity of insulation defects.

II. Key Technical Features

1. Portability and High Integration: The compact design integrates impedance detection, acquisition units, and analysis software, making it suitable for mobile field testing and rapid deployment.

3. Multi-Sensor Fusion Detection: Typically supports multiple detection principles such as high-frequency current transformers, ultrasonic sensors, and transient voltage-to-ground (TPD) sensors, enabling the capture of discharge signals from different locations for comprehensive diagnosis and localization.

4. Intelligent Analysis and Localization: Built-in advanced analysis software generates phase-resolved phase diagrams and uses methods such as time-difference positioning to assist in determining the discharge type and accurately locating the discharge source.

5. High Sensitivity and Wide Bandwidth: Possesses high detection sensitivity, capable of detecting early, weak discharges; utilizes wide bandwidth acquisition to retain rich discharge waveform details for analysis.

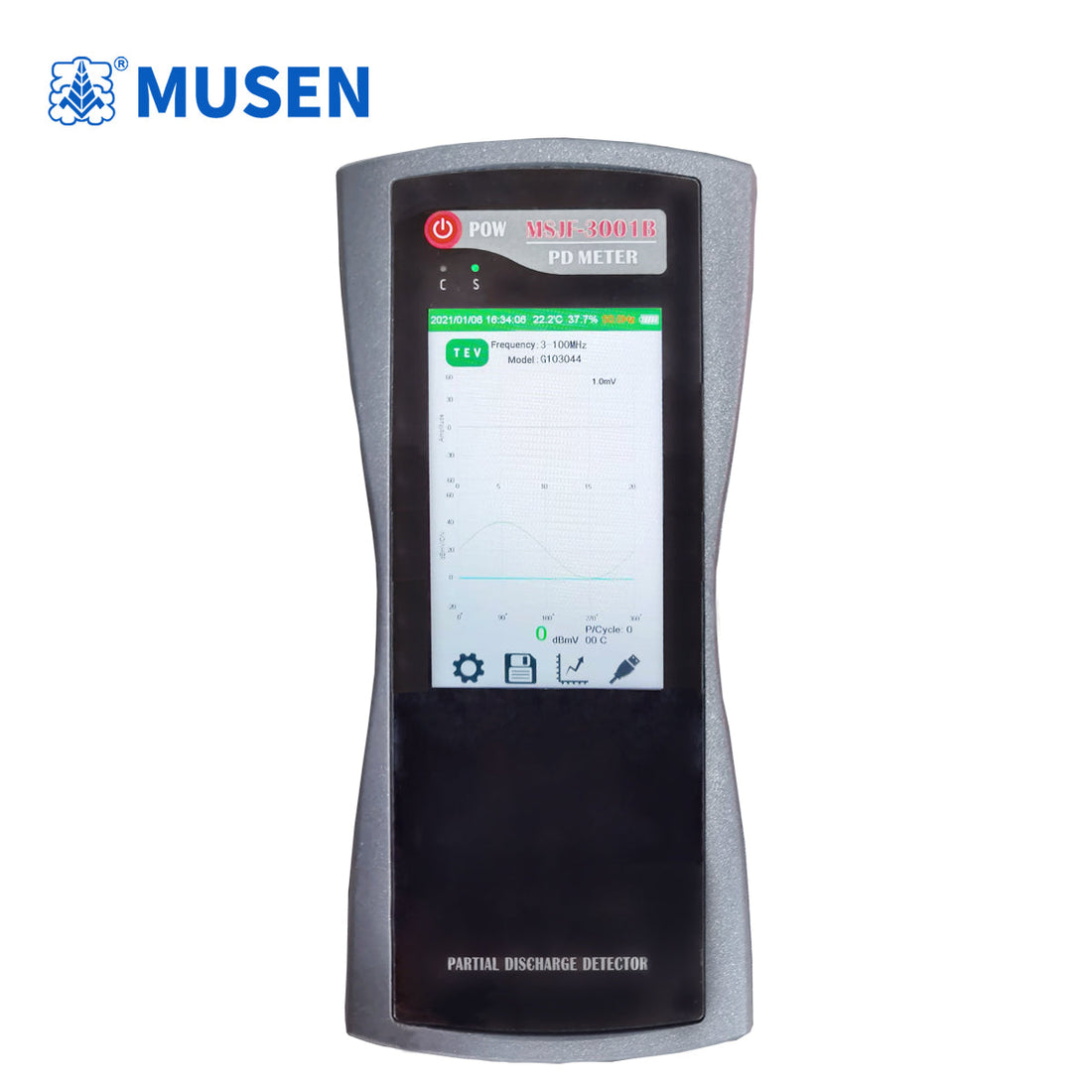

Summary: This instrument is a highly efficient insulation diagnostic tool. Its value lies in accurately capturing and analyzing partial discharge signals under complex interference conditions using multiple technologies, enabling early warning and fault location of equipment insulation status. The MSJF-3001 portable partial discharge tester is applicable to the detection and location of partial discharge defects in high-voltage electrical equipment using a non-invasive detection method. Standard sensor configuration: Ultrasonic sensor (UA), ground wave sensor (TEV); optional: transformer-specific sensor network, GIS-specific UHF sensor, high-voltage cable-specific sensor; customization is also available upon request.

Detection principle: Ultrasonic method (UA), ground wave method (TEV), and ultra-high frequency method (UHF).
