A Gas-insulated test transformer   is designed with optimized internal electric field distribution to suppress background partial discharge noise below 3–5 pC. Engineered by www.musenelectric.com, these transformers enable high-precision dielectric testing on electrical power equipment without interference from internal transformer discharges.

Physics of Partial Discharge Suppression in SF6 Mediums

Partial discharge (PD) occurs when local electrical field intensity exceeds the dielectric breakdown strength of the surrounding insulation medium. In oil-filled transformers, trapped air bubbles, moisture, and particulate contaminants create field enhancements that lead to localized discharges. SF6 gas-insulated systems maintain high gas purity and uniform field distribution around high-voltage windings, preventing internal PD interference during sensitive insulation diagnostics.

Electrical Performance Parameters and Standards Compliance

The table below summarizes performance criteria across the YDQ series under IEC 60060-1 and IEC 60270 standards:

Technical Metric YDQ-10kVA/100kV YDQ-20kVA/100kV YDQ 30kVA/250kV
Maximum Output Voltage 100 kV AC 100 kV AC 250 kV AC
Internal PD Noise Floor ≤ 5 pC ≤ 5 pC ≤ 3 pC
Insulation Medium High-Purity SF6 Gas High-Purity SF6 Gas High-Purity SF6 Gas
Voltage Distortion Factor < 3% < 3% < 2.5%
Applicable Standards IEC 60060-1, IEEE 4 IEC 62271-200, IEC 60270 IEC 61235, ASTM F711

Specialized High-Voltage Testing Applications

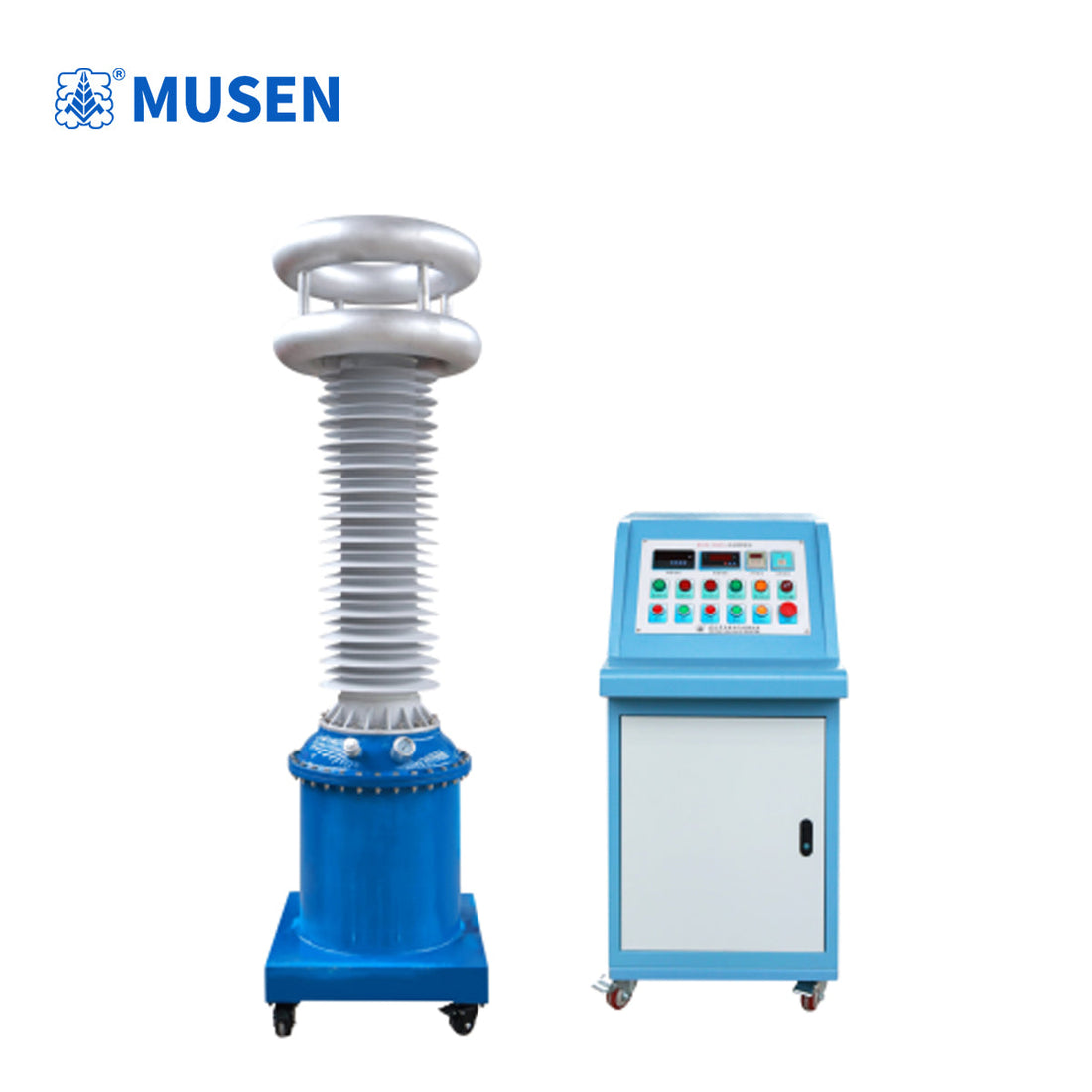

Field crews deploy the YDQ-10kVA/100kV  Gas-insulated test transformer for dielectric testing on 35kV switchgear, while the YDQ-20kVA/100kV  Gas-insulated test transformer supports higher capacity testing on 110kV grid components. For high-voltage safety tool testing, the YDQ 30kVA/250kV Gas-insulated test transformerprovides high-voltage excitation for testing 110kV electroscopes, operating rods, and insulating poles, supplying an accurate power-frequency test environment without background noise interference.

Frequently Asked Questions

Q: What signal detection methods are used during partial discharge testing?
A: Diagnostic systems use high-frequency current transformers (HFCT), ultra-high frequency (UHF) sensors, and acoustic emission (AE) detectors per IEC 60270 standards.

Q: Why is partial discharge control critical for insulating pole testing?
A: Excessive background noise from the test source can mask minor internal micro-cracks in glass-fiber reinforced poles, increasing risk during field operations.


Technical Content Reviewed by High-Voltage Diagnostic Specialists at Musen Electric (www.musenelectric.com).
