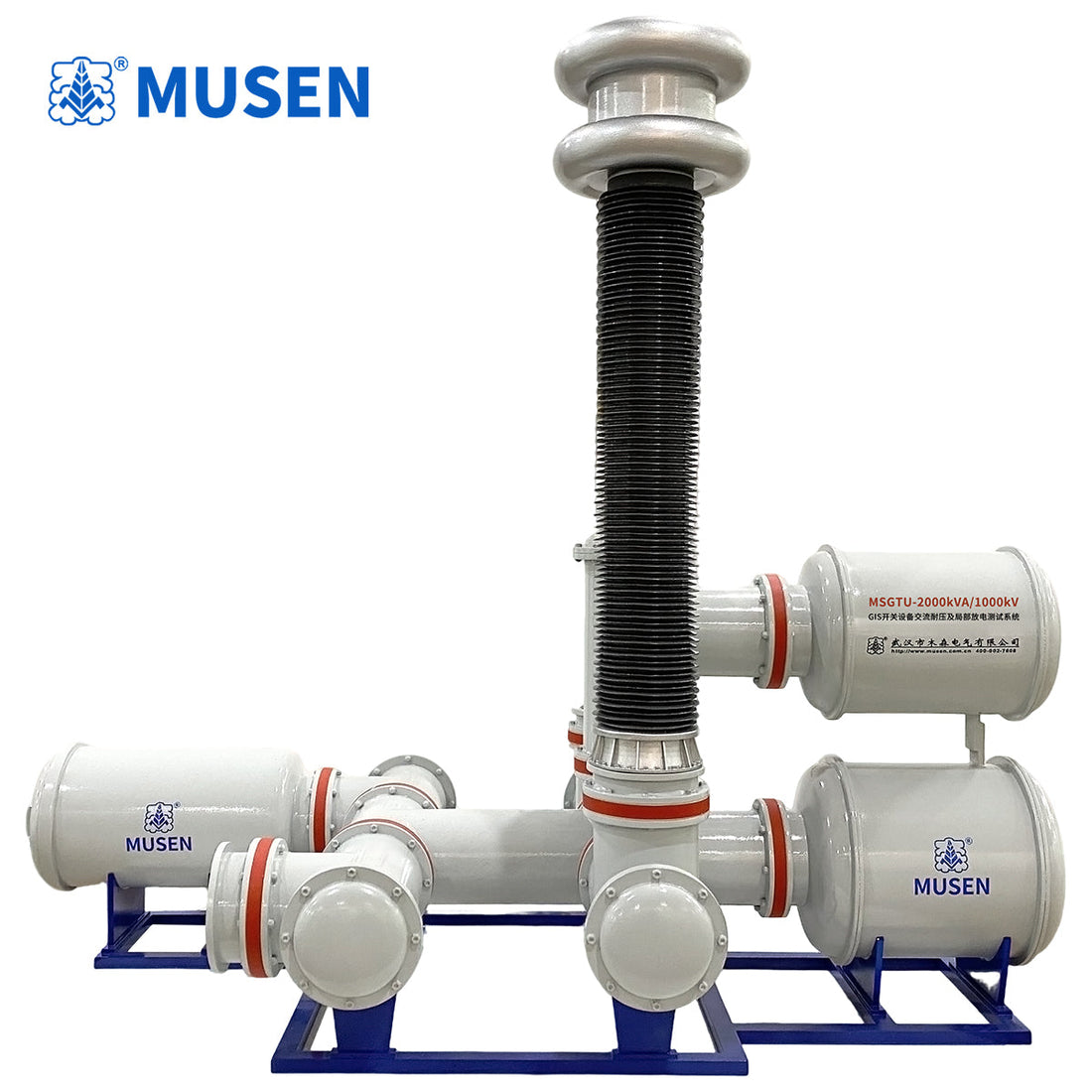

Optimizing Substation Handover Testing with GIS Partial Discharge-Free Test Equipment
Optimizing Substation Handover Testing with GIS Partial Discharge-Free Test Equipment
Deploying GIS Partial Discharge-Free Test Equipment during site acceptance testing (SAT) ensures that newly installed gas-insulated switchgear meets strict dielectric integrity criteria defined by IEC 62271-203 and CIGRE WG B3.24. Operating with an internal discharge floor of ≤1–3 pC at rated voltage, this test system combines high-voltage AC withstand testing with simultaneous partial discharge diagnostic measurements.
What Are the Primary Application Scenarios for Fully Enclosed Test Units?
High-voltage substations rely on gas-insulated architectures due to their compact footprint and resistance to atmospheric pollution. However, field assembly of long busbar sections introduces potential contamination risks from dust particles, mechanical vibration burrs, or bolt torque misalignment. Key applications for GIS Partial Discharge-Free Test Equipment include:
-
GIS, GIL, and HGIS Factory Type & Routine Tests: Verifying complete switchgear bay performance prior to shipment.
-
On-Site Handover Tests for New Substations: Performing AC insulation withstand tests combined with multi-channel UHF and acoustic PD localization across 220 kV, 330 kV, and 550 kV substations.
-
Insulation Qualification of Core Components: Conducting batch tests on epoxy basin insulators, internal current transformers (CT), and potential transformers (PT).
-
Post-Overhaul Diagnostic Testing: Synchronous high-voltage withstand and PD testing following major breaker maintenance or section replacements.
-
Expanded Appliance Testing: Utilizing optional external high-voltage bushings to test power transformers, air-insulated switchgear (AIS), and outdoor porcelain/composite insulators.
How Does On-Site Partial Discharge Measurement Achieve Sub-Picocoulomb Sensitivity?
Under IEC 60270 specifications, apparent charge q is expressed in picocoulombs (pC). In traditional field environments, atmospheric noise can exceed 50 pC, obscuring critical internal insulation signals. Fully enclosed GTU diagnostic systems eliminate this noise by surrounding all high-voltage conductors with an earthen metal shield.
|
Diagnostic Parameter |
Standard IEC 60270 Method |
UHF Detection Method |
Acoustic Emission (AE) Method |
|---|---|---|---|
|
Operating Spectrum |
100 kHz – 1 MHz |
300 MHz – 1.5 GHz |
20 kHz – 300 kHz |
|
Sensitivity Floor |
≤1 pC (within shielded GTU) |
~1 pC localized equivalent |
Acoustic mechanical response (~5–10 pC) |
|
Interference Immunity |
High shielding via GTU tank |
Immune to low-frequency noise |
Immune to electrical noise |
|
Defect Identification |
Apparent charge magnitude |
Defect classification via PRPD patterns |
Physical defect localization along tank |
What Are the Technical Parameters Across System Capacities?
Selecting appropriate equipment configurations depends on the test object's capacitive load (C_x), required test voltage (U_t), and duty cycle requirements under standards such as IEEE 4 and IEC 60060-1.
|
Equipment Rating |
Output Voltage Range |
Nominal Capacity |
Primary Application Range |
|---|---|---|---|
|
GTU System 800/800 |
0 – 800 kV |
800 kVA |
550 kV GIS Complete Assembly Withstand (680/740 kV) & PD Test |
|
GTU System 800/600 |
0 – 600 kV |
800 kVA |
363 kV / 330 kV GIS Factory Withstand (460/510 kV) & PD Test |
|
GTU System 800/400 |
0 – 400 kV |
800 kVA |
252 kV / 220 kV GIS Full Assembly & Large-Capacity Component Test |
|
GTU Component Test Unit |
0 – 250 kV |
800 kVA |
Single/Multi-station Basin Insulator & CT/PT Insulation Testing |
|
GTU Modular Unit |
0 – 150 kV |
600 kVA |
6-Station Vessel Testing for Disconnector Rods & Sub-Assemblies |
How Does Direct Flange Coupling Improve Site Safety and Operational Speed?
Conventional field test setups require building elevated high-voltage test leads, maintaining large safety clearances, and positioning multiple support insulators. GIS Partial Discharge-Free Test Equipment connects directly to the switchgear flange via a gas-tight SF6 joint. The grounded outer tank eliminates high-voltage exposure risks, enhancing safety for field engineers while reducing mechanical setup times by over 50%.
Frequently Asked Questions
Q: Can the GTU test system be expanded to test conventional air-insulated substation equipment?
A: Yes. By attaching an optional air-to-SF6 high-voltage bushing module, the GTU system converts into an open-air test source capable of testing conventional power transformers, outdoor switchgear, distribution cabinets, and cable terminations.
Q: What standards govern the partial discharge baseline during field commissioning?
A: Field testing adheres to IEC 62271-203 for gas-insulated switchgear and IEC 60270 for partial discharge measurement techniques. Under these standards, acceptance criteria generally require partial discharge levels to remain below 5 pC at 1.2 \times U_0 or 1.5 * U_0 phase-to-ground voltage.
