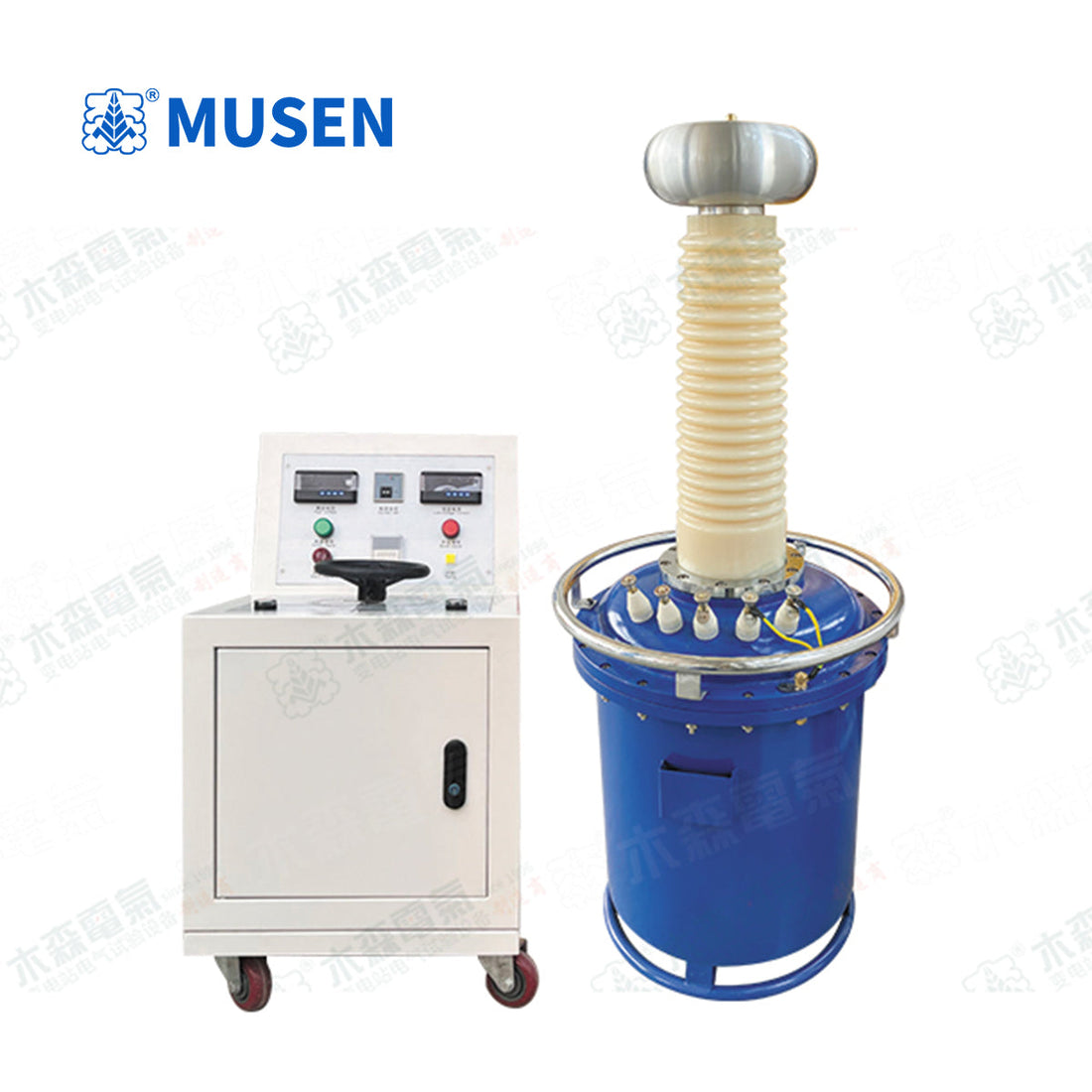

A low-noise gas-insulated test transformer provides high-voltage AC excitation with minimal internal background partial discharge ＜5pC at 100kV), enabling accurate insulation defect identification in high-voltage apparatus. Engineered in accordance with IEC 60270 and IEEE Std 4, the YDQ series utilizes high-purity SF6 dielectric gas and optimized electric field geometry to prevent internal partial discharge from obscuring weak defect signals in tested equipment.
Why Is Internal Partial Discharge Suppression Critical for High-Voltage Testing?
Partial discharge (PD) measurements detect localized breakdown within solid, liquid, or gas insulation systems prior to complete dielectric failure. If the test transformer itself generates background discharge levels exceeding 10 pC to 20 pC, micro-discharge signals from void imperfections inside power cables, GIS switchgear, or instrument transformers cannot be distinguished.
The YDQ series gas-insulated test transformer achieves an internal background noise level below 5 pC by implementing smooth, polished internal shield structures and high-purity SF6 insulation gas (IEC 60376), ensuring high signal-to-noise ratio during diagnostic measurements.
|
Diagnostic Parameter |
Standard HV Test Set |
YDQ Precision Gas-Insulated Set |
Diagnostic Benefit |
|---|---|---|---|
|
Internal PD Level |
20 pC - 50 pC |
≤ 5 pC at 100kV / ≤ 8 pC at 250kV |
Detects micro-voids in solid insulation |
|
Insulation Medium |
Unfiltered Mineral Oil |
SF6 Gas (0.4 MPa, IEC 60376) |
Eliminates particulate-induced discharge |
|
Coupling Methods |
Galvanic Direct |
HFCT, UHF, AE Acoustic Sensors |
Supports multi-channel online/offline PD detection |
|
THD Waveform Distortion |
≤ 5% |
≤ 2.5% |
Prevents high-frequency harmonic interference |
How to Integrate the YDQ Transformer into an IEC 60270 Test Setup
1. System Calibration
Connect a calibrated pulse generator parallel to the test object to inject a known charge pulse (e.g., 10 pC) in accordance with IEC 60270 recommendations.
2. Signal Acquisition
Place High-Frequency Current Transformers (HFCT) around the grounding shield of the tested cable or apparatus. Connect Ultra-High Frequency (UHF) sensors to GIS inspection ports or attach Acoustic Emission (AE) sensors to the outer tank.
3. Voltage Application
Ramp the output voltage of the YDQ gas-insulated test transformer to the Partial Discharge Inception Voltage (PDIV). Observe real-time Phase-Resolved Partial Discharge (PRPD) patterns to classify defect types, including internal voids, surface tracking, or free-moving metallic particles.
Q: What is the maximum recommended ambient humidity for conducting partial discharge tests with the YDQ system?
A: Relative ambient humidity should remain below 80% non-condensing. High external humidity can cause surface tracking across the exterior high-voltage ceramic or epoxy bushing, artificially increasing external PD interference.
Q: How does the YDQ transformer protect against back-EMF spikes during sample breakdown?
A: The system includes a fast-acting primary overcurrent trip circuit combined with an external series damping resistor, protecting both internal transformer windings and sensitive partial discharge acquisition instruments from breakdown transients.
