Optimizing Field Commissioning with Portable Ac/Dc Dielectric Strength Testers
Optimizing Field Commissioning with Portable Ac/Dc Dielectric Strength Testers
Ac/Dc Dielectric Strength Testers, portable high voltage tester, gas-filled test transformer, YDQ series, substation commissioning
Discover how portable Ac/Dc Dielectric Strength Testers reduce equipment weight by 20% to 60%, offering optimal solutions for on-site substation testing and maintenance.

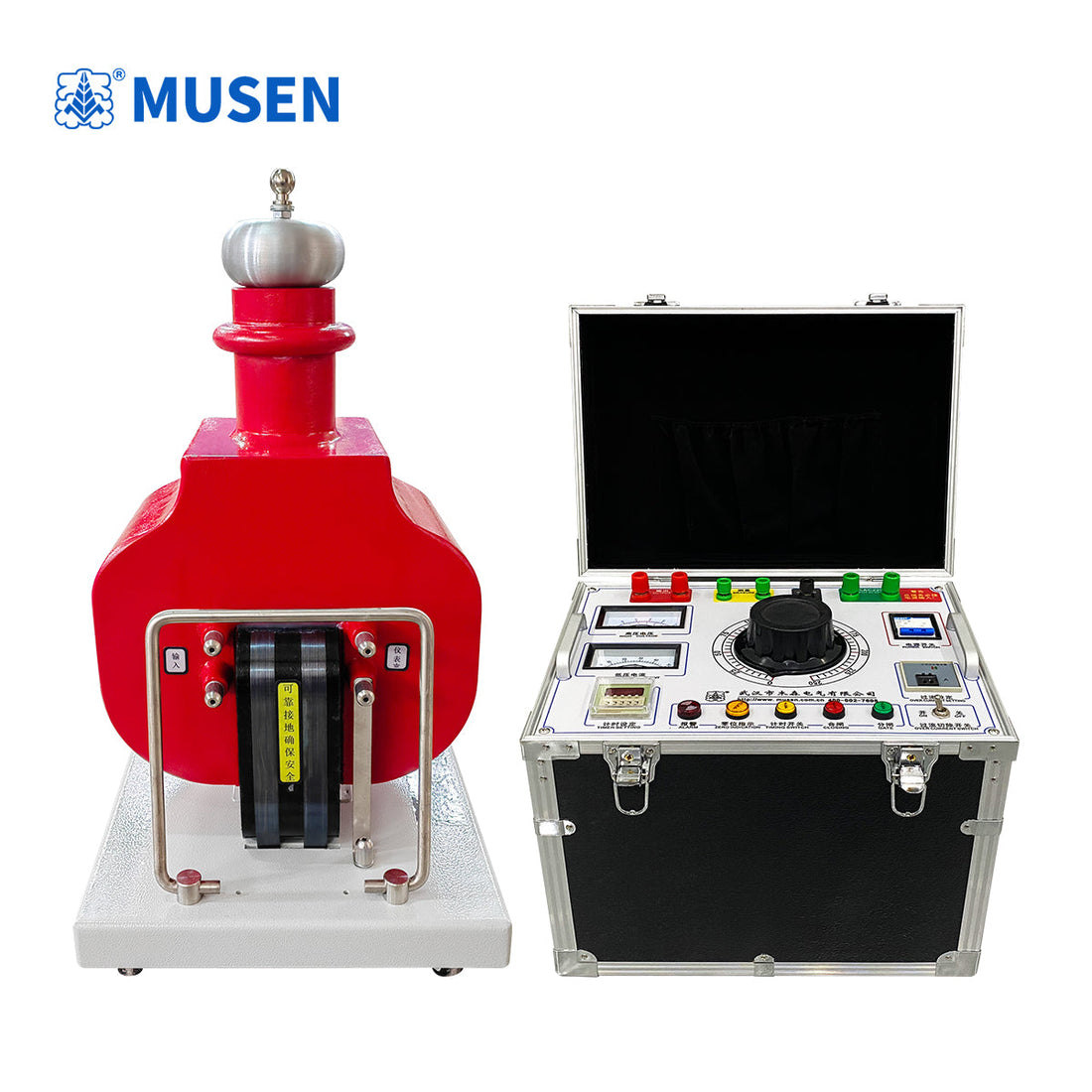

Direct Answer: Portable Ac/Dc Dielectric Strength Testers—such as SF6 gas-filled (YDQ series) and epoxy resin dry-type units (GTB series)—reduce equipment weight by 20% to 60% compared to traditional oil-filled transformers, providing safe and efficient testing for remote substations and frequent field-relocation environments.
Overcoming Field Testing Challenges in Power Systems
Field commissioning engineers frequently encounter logistical hurdles when transporting heavy testing equipment to remote substations. Traditional oil-immersed transformers, while durable, are bulky and present environmental oil-handling challenges. The engineering evolution of gas-insulated (YDQ series) and dry-type vacuum-cast (GTB series) testers has transformed field diagnostics. These units maintain high dielectric strength while offering superior portability and resistance to ambient humidity.
Weight Comparison, Market Positioning, and Pricing
Evaluating portable test gear requires examining weight reduction metrics, market positioning, and pricing structures. The table below compares the available portable architectures:
| Model Series | Insulation & Core Technology | Weight Reduction | Market Positioning & Pricing |
| YDQ Series (Gas-Filled) | SF6 pressurized gas insulation | 20% – 60% lighter than oil units | Premium tier for mobile field engineers |
| GTB Series (Dry-Type) | Vacuum-cast epoxy resin | Compact and lightweight | Mid-range tier for switchgear and component testing |
| YDJ(Z) Series (Oil-Immersed) | Traditional transformer oil | Standard heavy industrial baseline | Economical tier for fixed factory settings |
Best Practices for Field Deployment and Maintenance
When deploying portable dielectric strength testers in the field, technicians must verify internal gas pressure (for SF6 models) prior to operation, ensure clean terminal connections to prevent surface flashover, and verify calibration annually to maintain compliance with ISO/IEC 17025 and IEEE standards.
Entity FAQ
Q: Why are gas-filled testing transformers significantly lighter than oil-immersed models?
A: SF6 gas provides superior dielectric strength under pressure compared to transformer oil, allowing for smaller physical clearances and a reduced tank size.
Q: What environmental precautions are necessary when operating SF6-insulated test sets?
A: Technicians must follow strict containment, leak monitoring, and regulatory compliance protocols governing fluorinated gases during handling and maintenance.
Technical Content Reviewed by High-Voltage Diagnostic Specialists | www.musenelectric.com
