How to Effectively Perform Live Partial Discharge Testing on High-Voltage Assets?

 How to Effectively Perform Live Partial Discharge Testing on High-Voltage Assets?

 Partial Discharge Tester, PD Diagnostic System, Switchgear Maintenance, Transformer Testing, Wuhan Musen Electric

 Learn how to perform live partial discharge inspections for switchgears and transformers. Explore non-invasive detection methods and frequency analysis to ensure grid reliability.

1. Why is Partial Discharge Monitoring Critical for Substation Reliability?

In the field of high-voltage maintenance, insulation failure remains the primary cause of unplanned outages. A Partial Discharge Tester serves as an early-warning diagnostic tool, identifying microscopic defects in insulation systems before they manifest as catastrophic faults. For power utility companies and heavy industrial plants, shifting from time-based maintenance to condition-based monitoring is essential. By detecting PD activity in its infancy, engineering teams can prioritize repairs, optimize maintenance budgets, and significantly extend the lifecycle of critical assets like power transformers and gas-insulated switchgear (GIS).

2. How Do Different Sensors Detect PD in Live Electrical Systems?

Detection accuracy depends on the ability to capture various physical signals emitted during a discharge event. Professional testing involves a multi-sensor approach to ensure no defect goes unnoticed. Within a modern Partial Discharge Tester, several key technologies are integrated:

• TEV (Transient Earth Voltage): Specifically designed for metal-clad switchgear, capturing electromagnetic pulses that leak through joints and gaskets.

• Ultrasonic Sensors: These pinpoint acoustic emissions from surface tracking or corona, providing an audible confirmation of insulation distress.

• UHF Detection: Operating in the 300MHz to 2.0GHz range, this method is highly effective for GIS and transformer oil-tank inspections, providing excellent immunity against external background noise.

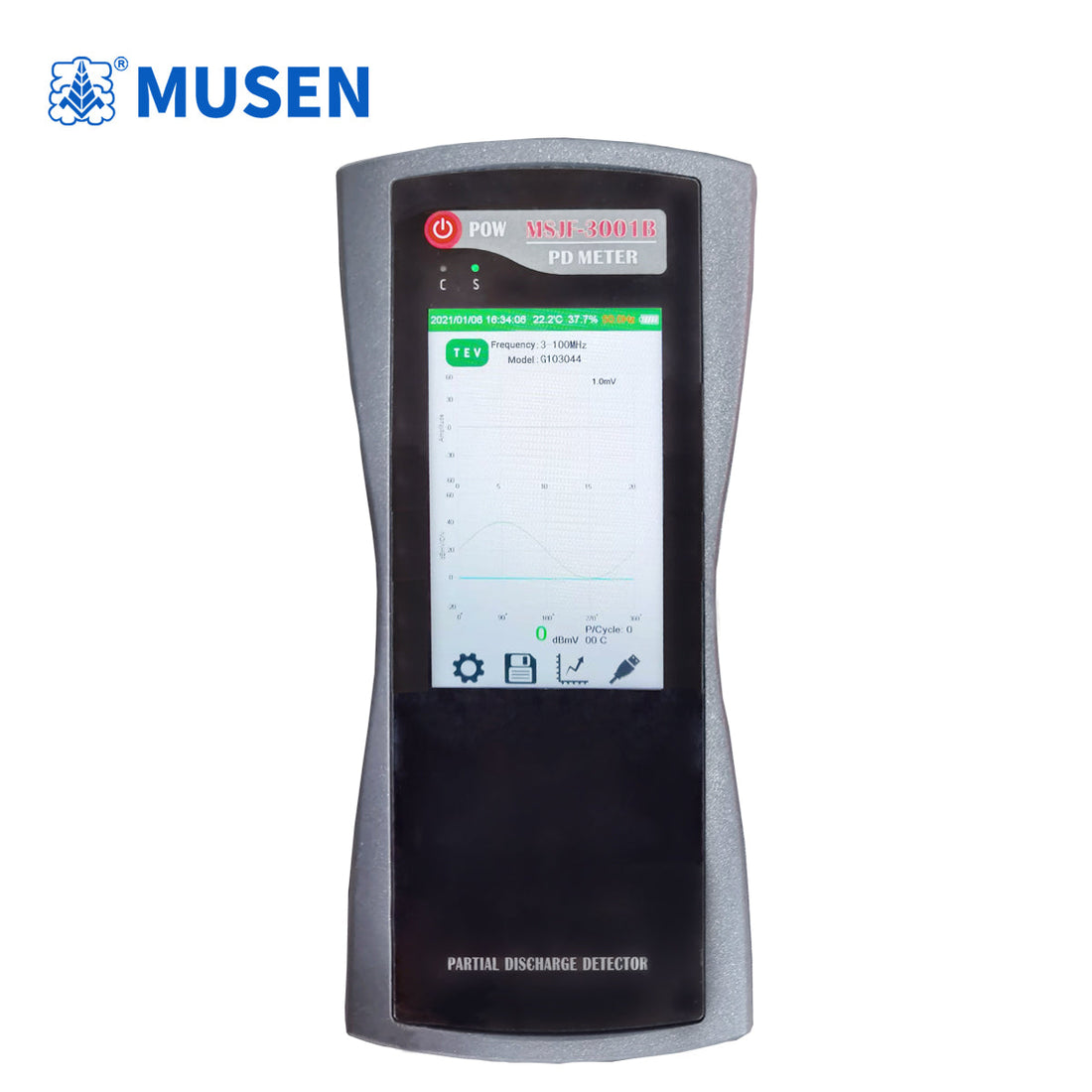

3. What Technical Specifications Define a High-Performance PD Diagnostic Tool?

For overseas power engineering firms, technical data and waveform analysis capabilities are the benchmarks of professional equipment. A reliable system must provide more than just a "pass/fail" result; it must provide actionable data for engineering analysis. At Wuhan Musen Electric Co., Ltd. (www.musenelectric.com), we emphasize the following technical integration in our diagnostic solutions:

• Versatile Sensor Configuration: Achieve comprehensive detection for almost all high-voltage electrical equipment through modular sensor attachments.

• Advanced Data Mapping: Access to time-domain waveforms, PRPD (Phase Resolved Partial Discharge), and PRPS patterns, enabling engineers to distinguish between internal, surface, and noise-related discharge.

• Dual Integrated Sensing: Built-in ultrasonic and TEV sensors as standard, with quick-connect ports for specialized GIS, overhead line, and cable sensors.

• Non-Invasive Protocol: The process is entirely non-intrusive. Testing requires no power interruptions or external high-voltage sources, offering a safer and more efficient alternative to traditional pulse-based methods.

• Wide Bandwidth Performance: A detection range of 30kHz to 2.0GHz ensures the Partial Discharge Tester covers the entire spectrum of relevant discharge frequencies.

4. Frequently Asked Questions Regarding Field PD Testing

Q1: Is it possible to perform these tests during peak load conditions?

Absolutely. In fact, testing during normal or peak operating stress is preferred. Since partial discharge is voltage-dependent, live testing provides a more accurate representation of the insulation's health than an offline test might reveal.

Q2: How does the system handle high levels of background electromagnetic interference (EMI)?

The system utilizes UHF sensors and digital filtering logic. By operating in the Ultra-High Frequency range, the equipment effectively "tunes out" common low-frequency grid noise, focusing only on the high-frequency signatures of internal discharge.

Q3: Can this equipment be used for overhead line inspection?

Yes. By utilizing specialized parabolic ultrasonic sensors or UHF antennas, the device can detect corona and surface discharge on overhead insulators and tension clamps from a safe distance on the ground.

Q4: What is the benefit of PRPD and PRPS patterns for a field engineer?

These patterns correlate discharge events with the phase angle of the AC cycle. This allows the user to identify the "type" of defect—such as a floating electrode, a void in solid insulation, or surface contamination—which is crucial for determining the urgency of the repair.
