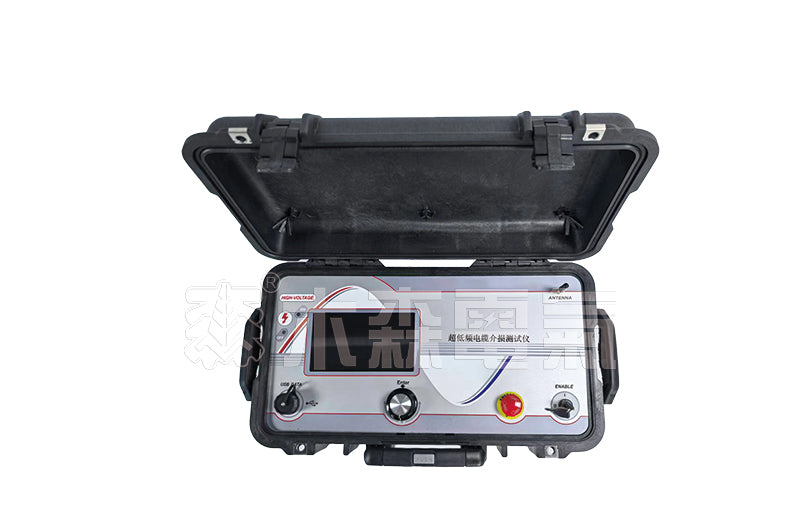

The MSVIF-101G VLF Tan Delta Tester is an integrated diagnostic system designed to perform combined ultra-low frequency (0.1 Hz) withstand testing and dissipation factor (tan δ) measurements on medium-voltage electrical cables up to 31.8 kV peak. By identifying severe water tree degradation, insulation aging, and sheath faults early, this VLF Dielectric Loss Test Set enables power utilities and industrial facilities to assess underground cable health under IEEE 400.2 and IEC 60502-2 guidelines. Learn more at www.musenelectric.com.
What Technical Features Define the MSVIF-101G VLF Dissipation Factor Tester?
A VLF Dissipation Factor Tester must deliver precise sinusoidal voltage waveforms under dynamic capacitive load conditions. The MSVIF-101G combines high-voltage generation with real-time leakage current monitoring, allowing field engineers to measure tan δ loss angles with resolution down to 1 × 10⁻⁴. The unit operates as a versatile VLF Withstand Voltage and Tan Delta Tester, generating continuous AC sine waves, DC output, and rectangular waves for sheath testing.
In field applications across global markets, this system is recognized as a VLF dielectric loss (Tan δ) tester (or VLF dielectric loss testing unit), providing precise insulation assessment for cross-linked polyethylene (XLPE) and ethylene propylene rubber (EPR) insulation layers. It functions as a high-precision VLF dissipation factor tester and a comprehensive VLF withstand voltage and dielectric loss tester for predictive maintenance programs.
Technical Specifications and Performance Metrics
The technical parameters of the MSVIF-101G are detailed in the table below:
| Parameter | Specification Standard | Diagnostic Functionality |
|---|---|---|
| Maximum AC Output Voltage | 24 kV RMS / 31.8 kV Peak (Sinusoidal) | VLF withstand & dissipation factor measurement |
| Waveform Output Types | 0.1 Hz Sine Wave, DC, Rectangular Wave | Cable insulation & sheath integrity evaluation |
| Sheath Testing Voltage | Adjustable up to 10 kV DC | Sheath integrity & fault pinpointing (step voltage) |
| Frequency Control | Manual & Automatic Adjustment (0.01 – 0.1 Hz) | Optimized for high-capacitance long cable runs |
| Data Export & Safety | Internal memory, USB export, Auto-disconnection | Automatic high-voltage cut-off upon breakdown |
How Does the MSVIF-101G Identify Water Treeing and Insulation Aging?
Water treeing occurs in extruded solid dielectric cables due to moisture ingress and localized electric field stress. During testing, the 0.1 Hz low-frequency current passes through the cable capacitance, allowing the MSVIF-101G to calculate the ratio of resistive leakage current to capacitive current (tan delta = I_R / I_C). A significant increase in tan δ as test voltage scales from $0.5 U_0$to 1.5 U_0 indicates severe water tree proliferation and insulation degradation prior to catastrophic electrical breakdown.
Frequently Asked Questions (FAQ)
Q: What standards govern VLF tan delta testing on medium-voltage cables?
A: Field testing using the MSVIF-101G adheres primarily to IEEE 400.2 (Guide for Field Testing of Shielded Power Cable Systems Using VLF) and IEC 60502-2 for power cables rated from 6 kV up to 30 kV.
Q: How does automatic frequency regulation benefit long cable diagnostics?
A: Long cables represent high capacitive loads (C = A/d). When the capacitive load exceeds the source capability at 0.1 Hz, the system automatically reduces operating frequency to 0.05 Hz or 0.02 Hz, maintaining full test voltage without overloading the HV generator.
