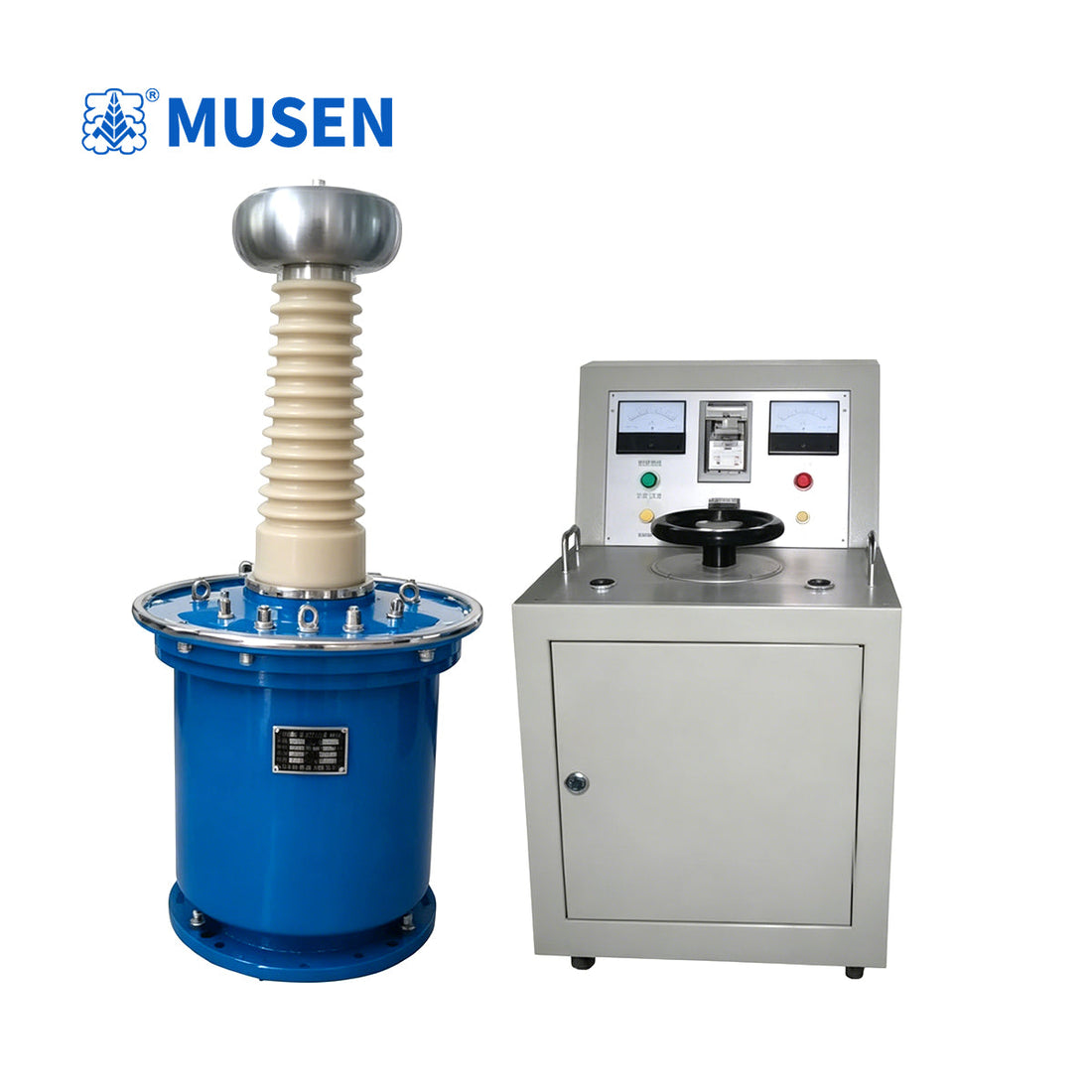

Market Positioning of Gas-Insulated Test Transformers
Market Positioning of Gas-Insulated Test Transformers
A Gas-insulated test transformer serves as an essential high-voltage testing source across modern electrical power infrastructure. Available through www.musenelectric.com, the YDQ product series addresses the stringent requirements of urban underground substations, renewable energy sites, and industrial high-voltage field diagnostic environments.Addressing Environmental and Safety Regulations in Modern Grids
Substation safety protocols increasingly prohibit flammable mineral oil in confined or densely populated areas due to fire hazards. Gas-insulated test transformers replace oil insulation with non-flammable SF6 gas, meeting strict environmental safety standards. This zero-oil design prevents ground contamination and complies with fire safety directives for indoor, underground, and offshore substations.
Voltage Classes and Market Sector Alignment
To align test equipment parameters with grid infrastructure requirements, utility engineers match test transformer specifications to specific field voltage classes:
| Product Model | Market Segment | Tested Assets | Standard Compliance |
|---|---|---|---|
| YDQ-10kVA/100kV | Industrial Plants & 35kV Distribution | Transformers, Cables, Switchgear | IEC 60060-1, IEEE Std 4 |
| YDQ-20kVA/100kV | 110kV Regional Transmission Networks | Substation GIS, Circuit Breakers | IEC 62271-200, DL/T 848.2 |
| YDQ 30kVA/250kV | High-Voltage Testing Laboratories | Operating Rods, Electroscopes, PPE | IEC 61235, ASTM F711 |
Optimizing On-Site Field Workflows
Using the YDQ-10kVA/100kV Gas-insulated test transformer enables rapid insulation testing on 35kV distribution networks. Utility service fleets deploying the YDQ-20kVA/100kV Gas-insulated test transformercan test 110kV GIS switchgear without transporting heavy oil-filled equipment. For specialized safety equipment testing, the YDQ 30kVA/250kV Gas-insulated test transformer provides a stable, low-noise power frequency source required for precision leakage current measurements under IEC 60903.Frequently Asked Questions
Q: Why are gas-insulated test transformers preferred for underground substations?A: SF6 gas is inert and non-flammable, eliminating fire hazards and smoke risks associated with oil breakdown during high-voltage flashover events.Q: Can the YDQ series be used for DC withstand testing?
A: Yes, with an optional high-voltage silicon stack module, the AC output can be rectified for DC insulation testing per IEEE 95 specifications.
