The PD-Free Test Transformer (MSYDQ series) by Musen Electric fills the market gap between bulky, stationary high-voltage test laboratories and fragile field test kits by delivering a fully integrated test system with partial discharge interference guaranteed below 3pC. Featuring a compact spatial footprint, high mobility chassis, and output ranges from 50kV to 1000kV, the MSYDQ series serves both stationary research laboratories and truck-mounted mobile high-voltage diagnostic units.
Why Does the Market Require Compact Low-Noise Dielectric Testing Systems?
High-voltage insulation diagnostics have historically faced a trade-off: laboratory-grade systems offered low background noise (<3pC according to IEC 60270) but required massive physical space and complex fixed installations. Conversely, conventional portable withstand sets suffered from high high-frequency electromagnetic noise (often >20pC to 50pC), rendering true partial discharge measurements impossible during field commissioning.
The MSYDQ PD-Free Power Frequency Withstand Voltage Test Set addresses this challenge through advanced gas-insulated or solid-epoxy structural engineering. It allows mobile test vans and space-constrained urban laboratories to conduct sensitive partial discharge detection (using acoustic AE, electrical IEC 60270, or UHF methods) without requiring massive multi-component test bays.

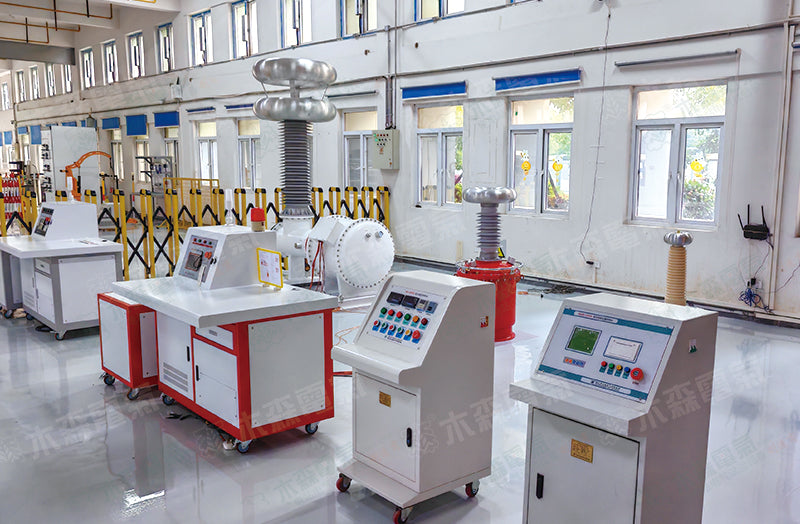

Application Matrix: Fixed Laboratory vs. Mobile On-Site Testing
The matrix below outlines operational deployment profiles for the MSYDQ series available from Musen Electric (www.musenelectric.com):
| Deployment Domain | Primary Application Target | Applicable MSYDQ Model | Key Functional Benefit |
|---|---|---|---|
| Mobile Test Trucks | On-site withstand voltage and PD verification for suburban substations | MSYDQ-100 / MSYDQ-200 (50kV – 200kV) | Vibration-resistant integrated frame; compact volume allows rapid vehicle mounting |
| Insulating Tool Centers | Routine safety checks for rubber gloves, hot sticks, and insulating blankets | MSYDQ-50 (50kV) | Rapid automatic zero-return and precise leak-current monitoring |
| Fixed HV Research Labs | Type testing of GIS switchgear, power cables, and generator bushings | MSYDQ-500 / MSYDQ-1000 (500kV – 1000kV) | Ultra-low discharge background (≤ 3pC) enables academic research and standards certification |
| Factory Quality Control | 100% factory end-of-line dielectric withstand testing for MV/HV switchgear | MSYDQ-300 (300kV) | Low thermal load loss (<9.0%) supports continuous multi-shift production line operation |
Compliance with Diagnostic Standards and Signal Spectrum Analysis
By maintaining total system partial discharge under 3pC, the MSYDQ series enables detection across multiple sensing channels conforming to international guidelines:
- Electrical Detection (IEC 60270): Wideband coupling via the integrated capacitive arm yields pulse resolution across 30 kHz to 1 MHz.
- Acoustic Detection (IEEE C57.127): Acoustic emission (AE) sensors attached to the specimen experience zero mechanical or electrical cross-talk from the testing transformer.
- Ultra-High Frequency (UHF) Testing: Ideal for UHF sensor calibration (300 MHz – 1.5 GHz) in modern gas-insulated switchgear (GIS) installations.
Frequently Asked Questions
Q: Is the MSYDQ series suitable for outdoor or rough-terrain mobile testing vans?
A: Yes. The internal structural components are anchored against mechanical shocks and vibration, making the MSYDQ series well-suited for integration into mobile testing vans for field commissioning.
Q: Can the unit run continuously during long-duration withstand testing?
A: The unit supports continuous operation at full rated load for standard test durations (e.g., 60-second power frequency withstand tests or extended 1-hour partial discharge inception/extinction level mapping).
