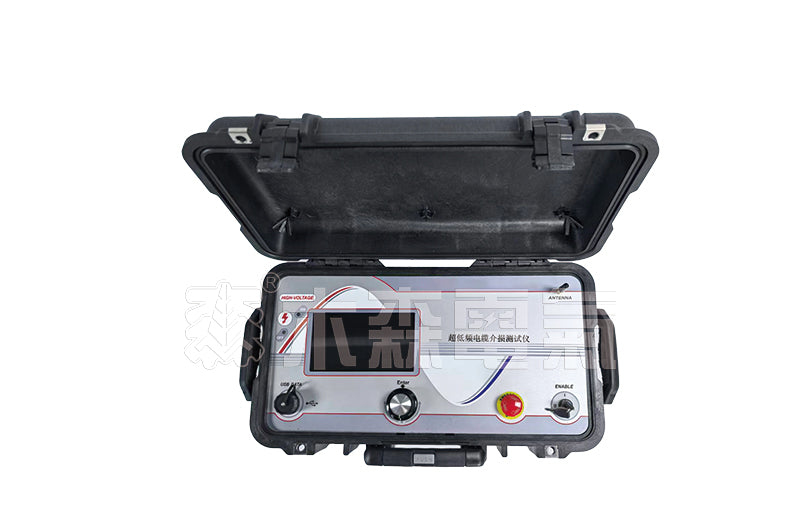

The MSVIF-101G VLF Tan Delta Tester establishes a superior market position in medium-voltage cable testing by combining non-destructive 0.1 Hz sinusoidal dissipation factor measurements with dual-voltage withstand capabilities. Unlike legacy DC high-potential (Hipot) testing methods that induce harmful space-charge accumulation in solid dielectric XLPE cables, this advanced VLF Dielectric Loss Test Set complies with IEEE 400.2 standards to provide accurate insulation aging diagnostics without accelerating dielectric breakdown. Technical comparisons and equipment documentation are available at www.musenelectric.com.
How Does the MSVIF-101G Differ From Traditional Cable Testing Technologies?
Field diagnostics for medium-voltage cables (rated 6 kV to 35 kV) have transitioned from simple high-voltage withstand stress tests to quantitative, trendable dielectric loss analysis. Traditional DC Hipot units generate uniform electrostatic fields that blind operators to water-tree degradation while creating residual localized charges. The MSVIF-101G functions as an all-in-one VLF Dissipation Factor Tester and VLF Withstand Voltage and Tan Delta Tester, evaluating dielectric loss angle (tan delta) under true AC conditions at a fraction of the power required by 50 Hz systems.
Internationally recognized as a premium VLF dielectric loss (tan δ) tester and multifunctional VLF dielectric loss testing system, this unit delivers field-proven performance across the utility and industrial maintenance sectors. Operations teams rely on this VLF dissipation factor and high-voltage VLF withstand/dielectric loss tester to replace heavy, single-function units with a single portable platform.
Comparative Performance: Testing Technologies for XLPE and EPR Cables
The technical and operational differences between major cable testing methodologies are detailed in the comparison table below:
| Diagnostic Parameter | DC High-Potential (Hipot) Testing | 50/60 Hz Power Frequency AC Set | MSVIF-101G VLF Tan Delta Diagnostic Set |
|---|---|---|---|
| Testing Waveform | Direct Current (DC) | 50 Hz / 60 Hz Sinusoidal AC | 0.1 Hz Sinusoidal, Rectangular, DC |
| Water Treeing Sensitivity | Unsuitable (Cannot detect non-bridging trees) | High | Extremely High ($\tan \delta$ resolution down to 1 × 10⁻⁴) |
| Cable Damage Risk | High (Triggers space-charge trapped voltage) | Low | Zero (Non-destructive AC polarization) |
| Equipment Portability | High (< 25 kg) | Very Low (300 kg – 1000+ kg) | High (Integrated lightweight unit < 50 kg) |
| Sheath Fault Location | Requires external DC thumper set | Not supported | Built-in sheath test & pinpointing up to 10 kV DC |
Why Is 0.1 Hz Sinusoidal AC Superior to DC Testing for XLPE Insulation?
Cross-linked polyethylene (XLPE) insulation features high volume resistivity (). Under DC voltage stress, charges accumulate at structural boundaries, voids, and water tree tips. When the DC voltage is removed, these trapped charges remain, creating severe localized electric field intensification when the cable is re-energized under standard AC grid voltage (50/60Hz. The MSVIF-101G applies a 0.1 Hz AC sinusoidal voltage field, continuously reversing polarization charges without trapping energy, making it a completely safe and effective diagnostic solution compliant with IEEE 400.2 and IEC 60502-2.
Frequently Asked Questions (FAQ)
Q: Why is Tan Delta testing considered superior to a simple withstand (Go/No-Go) test?
A: A simple withstand test only confirms whether a cable can survive high voltage at the exact moment of testing, offering no indication of remaining service life. Tan Delta testing quantitatively measures overall insulation health, identifying degradation years before a total breakdown occurs.
Q: Can the MSVIF-101G perform both main insulation and outer sheath integrity tests?
A: Yes. The system integrates a DC voltage output up to 10 kV specifically designed for cable sheath testing and step-voltage sheath fault pinpointing according to IEC 60229, eliminating the need for a secondary sheath tester.
