1. Why is Maintaining SF6 Purity Critical for Substation Asset Lifespans?**

In high-voltage electrical engineering, Gas-Insulated Switchgear (GIS) and circuit breakers rely heavily on Sulfur Hexafluoride (SF6) gas for its superior dielectric strength and arc-quenching capabilities. However, over extended operational cycles, moisture ingress, air leakage, and chemical decomposition degrade gas quality. When gas purity falls below critical operational thresholds, the risk of catastrophic dielectric breakdown, internal flashovers, and unexpected grid downtime escalates exponentially. Power asset managers use a high-precision **SF6 Gas Purity Analyzer** to continuously monitor concentration trends, prevent severe phase-to-ground faults, and transition from reactive troubleshooting to proactive, predictive maintenance scheduling.

2. How Does NDIR Technology Solve Common Field Measurement Interference?**

Traditional field-testing methods often relied on thermal conductivity detectors, which frequently suffered from severe cross-sensitivity issues triggered by ambient temperature swings and mixed-gas contaminants. To establish reliable data accuracy, modern power grids utilize an advanced **NDIR SF6 Purity Tester** engineered by Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)). Non-Dispersive Infrared (NDIR) spectroscopy operates by transmitting a specific infrared beam through the gas sample and measuring the exact light attenuation based on the Beer-Lambert law. Because the SF6 molecule possesses a highly distinct infrared absorption signature, the optical sensor remains entirely unaffected by background gases like nitrogen or carbon dioxide, delivering laboratory-grade volumetric accuracy directly in rugged outdoor substation environments.

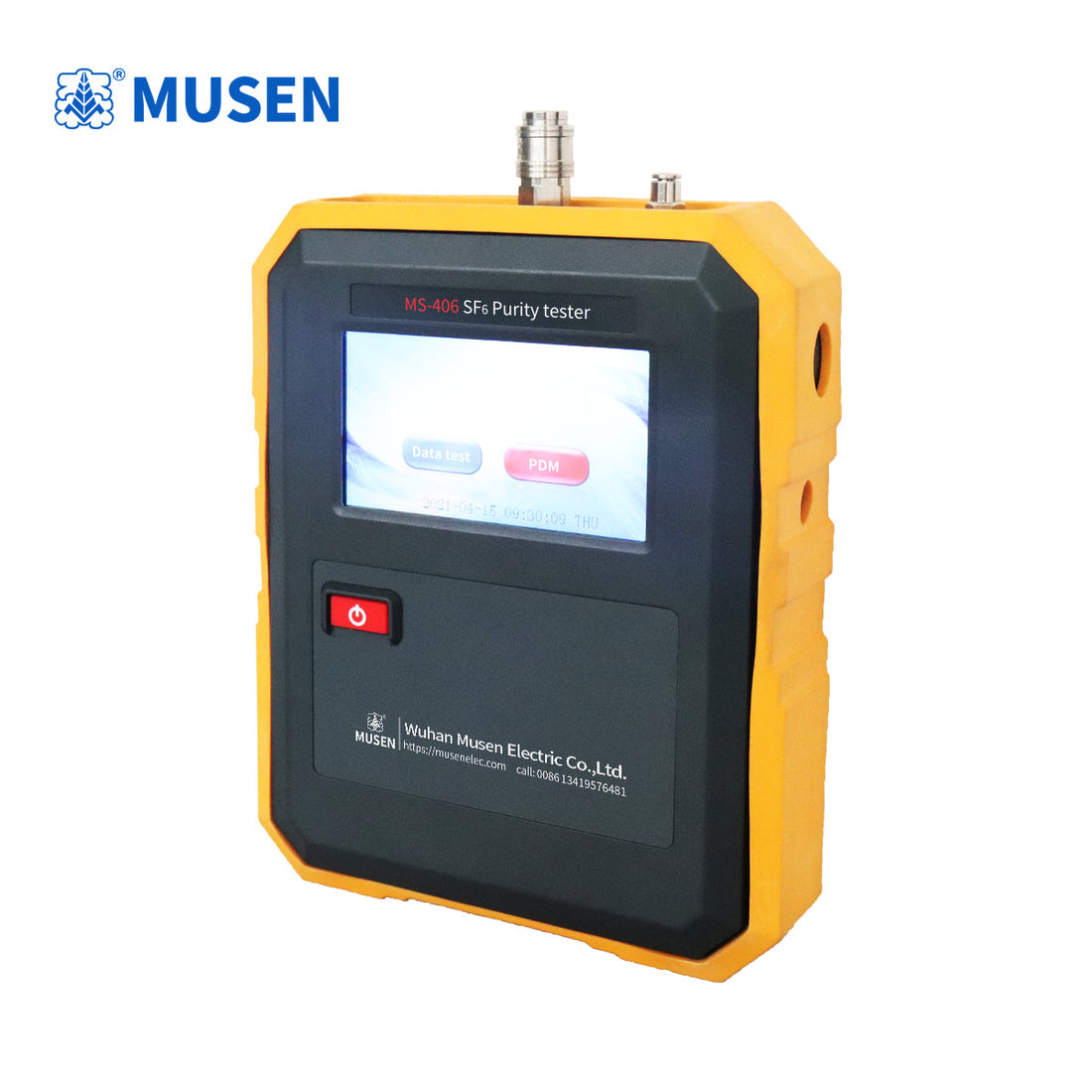

3. What Are the Core Performance Advantages of the Musen SF6 Tester?**

For international procurement teams and utility engineers, on-site testing tools must balance precision with physical speed. Musen Electric integrates four highly optimized technical systems into its flagship diagnostic equipment to guarantee field reliability:

* **① Self-Calibration:** The internal sensor probe automatically executes a digital zero-point calibration sequence during boot-up, entirely eliminating systemic measurement errors introduced by thermal drift or optical aging.
* **② Simplified UI:** The system features an oversized, sunlight-readable touch-screen LCD panel, offering an intuitive "what-you-see-is-what-you-get" operational interface that requires zero steep learning curves for technicians.
* **③ Rapid Preservation:** Once active, the total determination time per gas compartment sample is optimized to approximately 2 minutes, significantly accelerating routine inspection workflows.
* **④ Self-Locking Couplings:** Equipped with premium imported self-locking quick-connect couplings, the mechanical interface prevents accidental gas escapes, ensuring total operational safety.

4. How Can Technicians Optimize Field Workflows and Minimize Gas Waste?**

Field optimization requires minimizing the loss of expensive insulating gas while maintaining reliable data logs. The integration of high-speed digital micro-chambers allows the **SF6 Concentration Meter** to achieve stabilization with minimal sample gas volume. Technicians should ensure the inlet sampling hose is completely purged of ambient moisture prior to connection. Additionally, utilizing the instrument's internal mass flow controller balances pressure disparities between high-pressure GIS gas zones and the analytical optical cell, protecting delicate sensors from sudden pressure shocks and guaranteeing repeatable, standard-compliant field results.

5. High-Voltage Gas Testing FAQ: Quick Technical Answers for Grid Engineers**

* **Q1: Why is NDIR technology preferred over thermal conductivity methods for purity analysis?**
NDIR technology targets specific molecular absorption wavelengths, ensuring absolute selectivity for SF6. Thermal conductivity sensors can easily misinterpret a mixture of air and moisture contaminants as pure gas, yielding dangerously inaccurate field readings.
* **Q2: How often should substation engineering teams verify GIS gas purity?**
International standards recommend performing a complete gas quality validation annually during routine preventative maintenance intervals, or immediately following any major short-circuit trip event to verify that severe arcing has not compromised the gas matrix.
* **Q3: Does the rapid 2-minute testing velocity compromise data accuracy?**
No. The speed is achieved through a downscaled optical chamber design and advanced digital signal processors, allowing the device to deliver maximum precision while significantly conserving gas resources.
* **Q4: How does the self-calibration feature lower total cost of ownership?**
By automatically correcting for sensor drift through software algorithms, the system eliminates the frequent need for external reference gas cylinders and complex laboratory re-calibration, minimizing downtime.
