Is Your Power Transformer Safe? Discover the Role of a Transformer Ohmmeter

  Transformer Ohmmeter, DC Resistance Tester, 3-Phase Transformer Resistance Analyzer, Winding Resistance Testing, Transformer Maintenance

1. Why is Winding Resistance Testing Essential for Grid Reliability?

In the field of international power engineering, the DC resistance of transformer windings is more than just a number—it is a vital sign of structural integrity. Whether for a newly commissioned unit or routine maintenance, a high-precision Transformer Ohmmeter is used to verify that internal circuits are intact. At Wuhan Musen Electric Co., Ltd. (www.musenelectric.com), we emphasize that even micro-ohm deviations can signal manufacturing defects or aging-related degradation that lead to costly downtime.

2. Can a Transformer Ohmmeter Detect Hidden Manufacturing Defects?

Early detection is the primary defense against catastrophic failure. By utilizing a professional Transformer Ohmmeter, engineers can identify issues that remain invisible to standard visual inspections. These include:

• Material Inconsistency: Identifying substandard conductive materials or improper wire gauges.

• Contact Issues: Detecting high resistance at tap changer positions or bushing connections.

• Mechanical Faults: Finding broken strands in parallel windings or loose bolted joints caused by thermal cycling.

  For global utilities, this data-driven approach ensures that only equipment meeting 100% of specification stays energized.

3. How Does a 3-Phase Transformer Resistance Analyzer Optimize Field Tests?

Efficiency in the field is paramount. Using a modern 3-Phase Transformer Resistance Analyzer allows for simultaneous measurement of all three phases, significantly reducing the testing window compared to traditional single-phase methods. This structural approach automatically calculates the three-phase unbalance rate—a critical data point for identifying localized heating or phase-specific faults in Yn, Y, and Delta configurations.

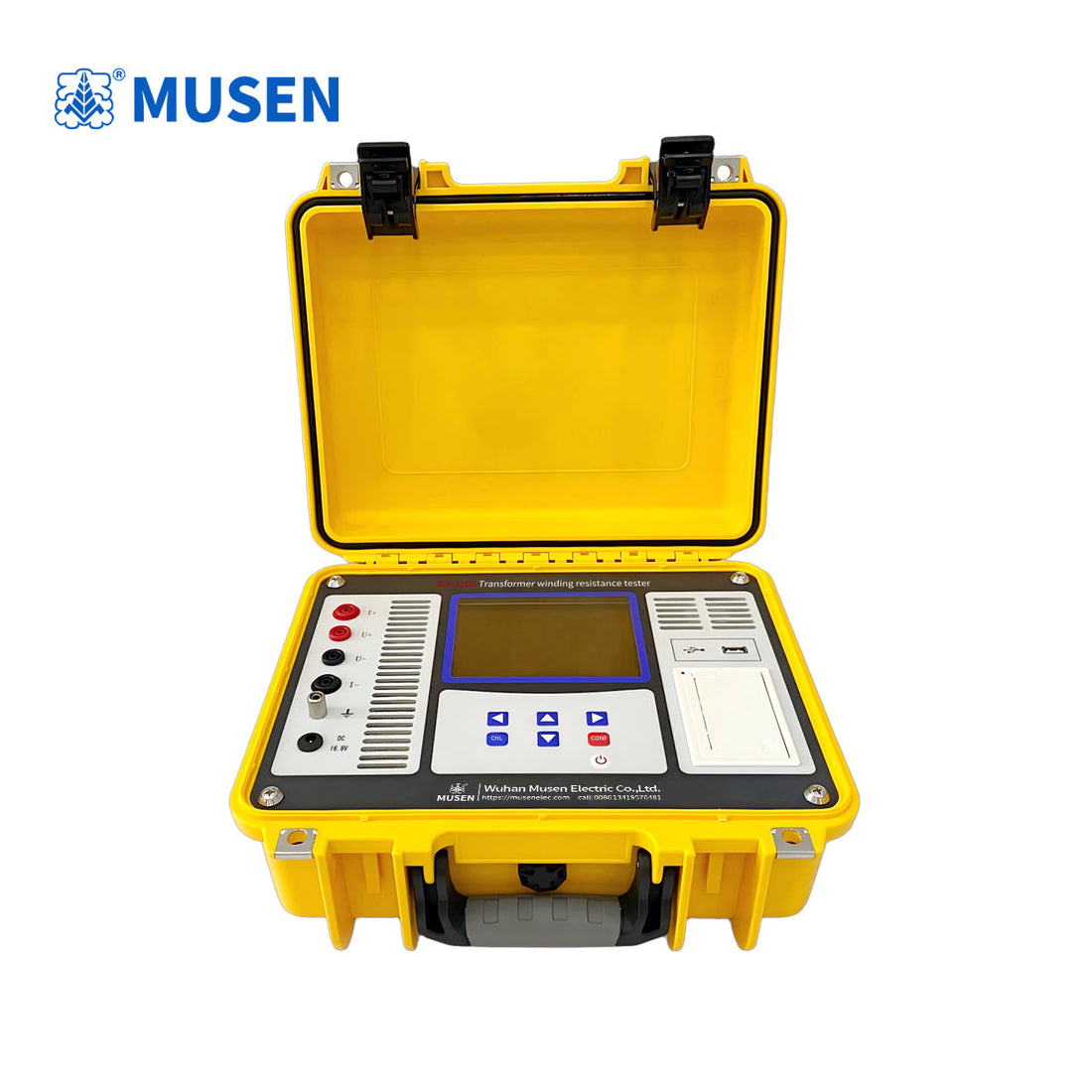

4. What Technical Features Define an Industrial-Grade DC Resistance Tester?

For professional power engineering and utility maintenance, Wuhan Musen Electric Co., Ltd. provides high-performance testing solutions engineered for the most demanding environments. Our equipment integrates advanced diagnostics with robust safety protocols:

• High Dynamic Range: Maximum output current of 20A with a wide measurement range up to 25kΩ, covering everything from small distribution units to massive power station transformers.

• Integrated Efficiency: Features built-in magnetic assist and demagnetization functions to stabilize inductive loads quickly.

• Data Stability Analysis: Automatically calculates resistance change rates at 5s, 15s, and 30s intervals, helping technicians judge data stability and eliminate "drift" errors.

• Multi-Layer Protection: Comprehensive safety circuits including Back-EMF protection, broken line protection, and power-failure safety to protect both the user and the asset.

5. Common Questions Regarding Transformer Resistance Testing

Q: How often should DC resistance testing be performed on power transformers?

A: It should be conducted during factory acceptance tests (FAT), after transport to the site, during routine annual maintenance, and whenever a protective relay operation suggests an internal fault.

Q: What causes the resistance values to "drift" during a measurement?

A: This is usually caused by the high inductance of the transformer core. Professional testers solve this by providing a stable DC current and tracking the rate of change to ensure the core is fully saturated before recording the final value.

Q: Why is Back-EMF protection critical for field instruments?

A: When a DC test current is interrupted in an inductive winding, the stored magnetic energy can create a massive voltage spike. Back-EMF protection safely dissipates this energy, preventing instrument damage and electrical shocks.

Q: Is it possible to test transformers with on-load tap changers (OLTC)?

A: Yes. Specialized testers allow for continuous measurement while switching tap positions, ensuring that contact resistance is verified across the entire range of the OLTC.
